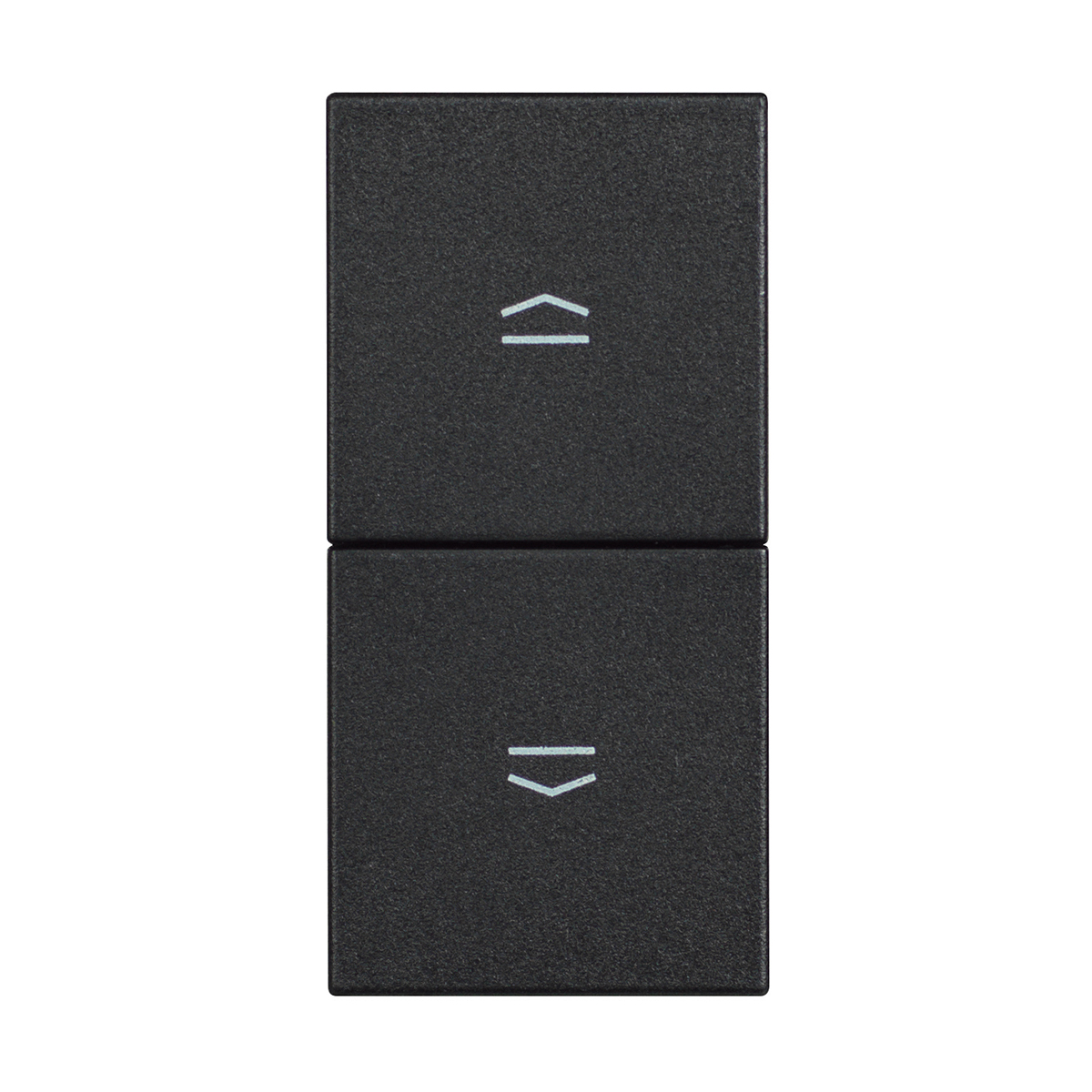

Shutter switch double 1P (NO) + 1P (NO) 10A - 250Vac interlocked
BT-RG4037
|
8005543633199
Description
Shutter switch double 1P (NO) + 1P (NO) 10A - 250Va.c. interlocked. 1 module, color black
Product characteristics
- Shutter switch double 1P (NO) + 1P (NO) 10A - 250Va.c. interlocked.
- 1 module
- color black
- screw terminals
Recommendations / Restrictions
- Indoor use only.
Products benefits
Usage
- Pressing the control activates the shutter connected to it. The drive ends when the pressure on the control is terminated.
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
Model
1-pole switch
Number of poles
1
Method of operation
Other
Mechanical controllable
Yes
Electronic controllable
No
Mounting method
Module frame
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Type of fastening
Engage (snap)
Connection type
Screwed terminal
Colour
Black
RAL-number (similar)
9011
Transparent
No
Label space/information surface
No
Suitable for degree of protection (IP)
IP20
Rated current
10 A
Nominal voltage
250 V
Number of buttons
2
Number of modules (module system)
1
Device width
22.2 mm
Device height
45.1 mm
Device depth
38.9 mm
Built-in depth
25.7 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Type of lighting
Not applicable
Terminal marking indication
No
Antimicrobial treatment
No
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
