Zucchini busbars

Choose the Zucchini busbar trunking suited to your needs

ZUCCHINI busbars, available in 3 amperage ranges, Low Power, Medium Power and High Power, allow you to satisfy any energy distribution need from 25 A up to over 6.300 A.

Zucchini busbars – Low power
03_ZUCCHINI_1
LB plus

The range of busbars for the distribution of power and lighting from 25 to 63A.

03_ZUCCHINI_2
LB plus data

Busbar conceived for distribution and lighting in the service sector, which integrates a BUS that can be used for lighting management.

Zucchini busbars – Medium power
04_ZUCCHINI_1
Mini Busbar MS

The smallest busbar of the Medium power range, ideal for the powering of lighting bodies in small-medium companies.

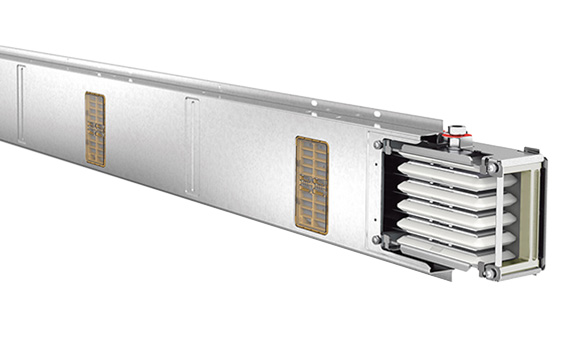

Medium rating XCM
Medium rating XCM

Busbar with a rating from 160 A to 1000 A, dedicated to the distribution of power in medium to large installations, including rising mains, in commercial and residential buildings.

04_ZUCCHINI_3
Trolley system TS/MTS

Busbar trunking from 63 A to 150 A, ideal for the power supply to moving users such as: bridge cranes, transfer motors, assembly lines.

Zucchini busbars – High power
05_ZUCCHINI_1

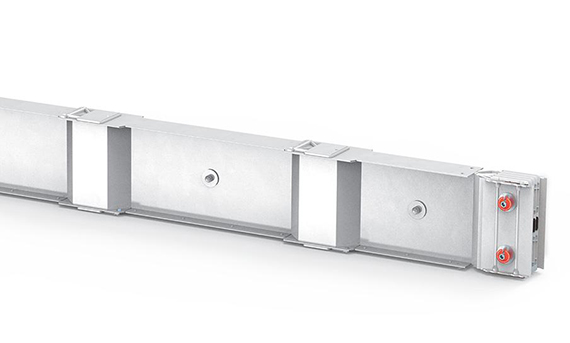

Xtra Compact XCP-S

Busbar with a rating from 630 A to 6300 A, XCP-S is the optimised solution for the most common performance requirements.

05_ZUCCHINI_2
Xtra Compact XCP-HP

Busbar with a rating from 630 A to 6300 A, XCP-HP is the ideal solution for heavy duty applications, higher temperature environments and installations where high energy efficiency is required.

05_ZUCCHINI_3
Resin Busbar RCP

Busbar with a rating from 630 A to 6300 A, and IP68 degree of protection. With RCP is possible to provide specific solutions in different environments (outdoor and indoor) where it isn’t possible to reach with busbar IP55.

Overview of Zucchini busbars
  Lb Plus/ Lb Plus Data MS XCM TS/MTS XCP-S XCP-HP RCP

Rated current 25-40-63A 63-100-160A from 160 to 1000A 63-150A from 630 to 6300A from 630 to 6300A from 630 to 6300A
Protection degree IP55 IP40/55 IP55 IP20/23 IP55/65 IP55/65 IP68
Mechanical Impact IK07 IK08 IK10 / IK10 IK10 IK10
Reference temperature - (Min/Max) 40 °C (-5/+50) 40 °C (-5/+50) 40 °C (-5/+60) 40 °C (-5/+50) 35 °C (-5/+50) 50/55 °C (-5/+70) 40 °C (-40/+50)
