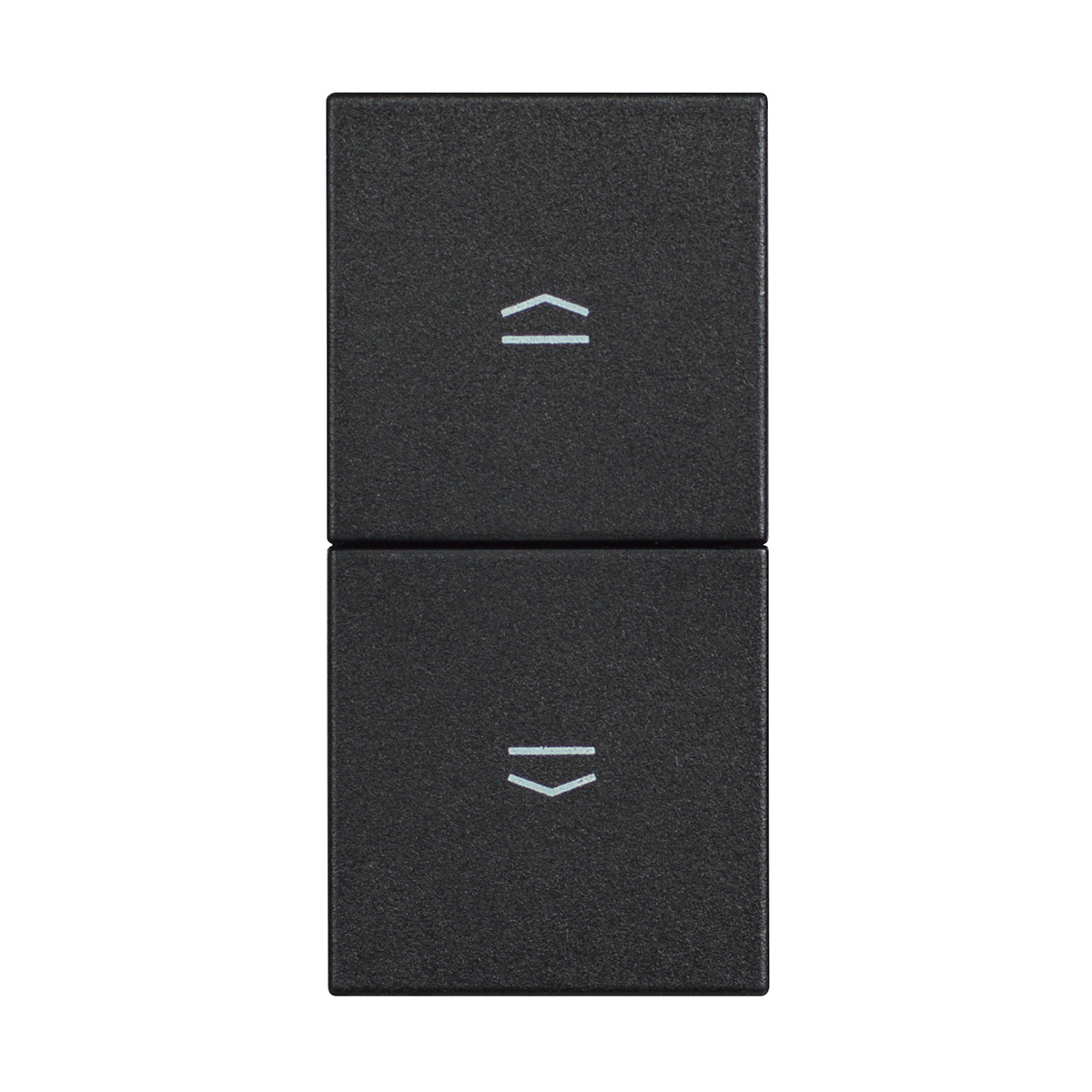

Shutter switch changeover switch 1P 10 A - 250 Vac
BT-RG4027
|
8005543633410
Description
Changeover switch 1P 10 A - 250 Va.c. for shutter. 1 module, color black
Product characteristics
- Changeover switch 1P 10 A - 250 Va.c. for shutter.
- 1 module
- color black
- screw terminals
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to insall and remove
Usage
- The device has three command modes:1. upper side: the rolling shutter rises up to the end of stroke2. lower side: the shutters go down to the end of the stroke3. central protruding button: reset of the command; the shutter stops.
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
Model
1-pole switch
Number of poles
1
Method of operation
Other
Mechanical controllable
Yes
Electronic controllable
No
Mounting method
Module frame
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Type of fastening
Engage (snap)
Connection type
Screwed terminal
Colour
Black
RAL-number (similar)
9011
Transparent
No
Label space/information surface
No
Suitable for degree of protection (IP)
IP20
Rated current
10 A
Nominal voltage
250 V
Number of buttons
1
Number of modules (module system)
1
Device width
22.2 mm
Device height
45.1 mm
Device depth
38.9 mm
Built-in depth
25.7 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Type of lighting
Not applicable
Terminal marking indication
No
Antimicrobial treatment
No
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
