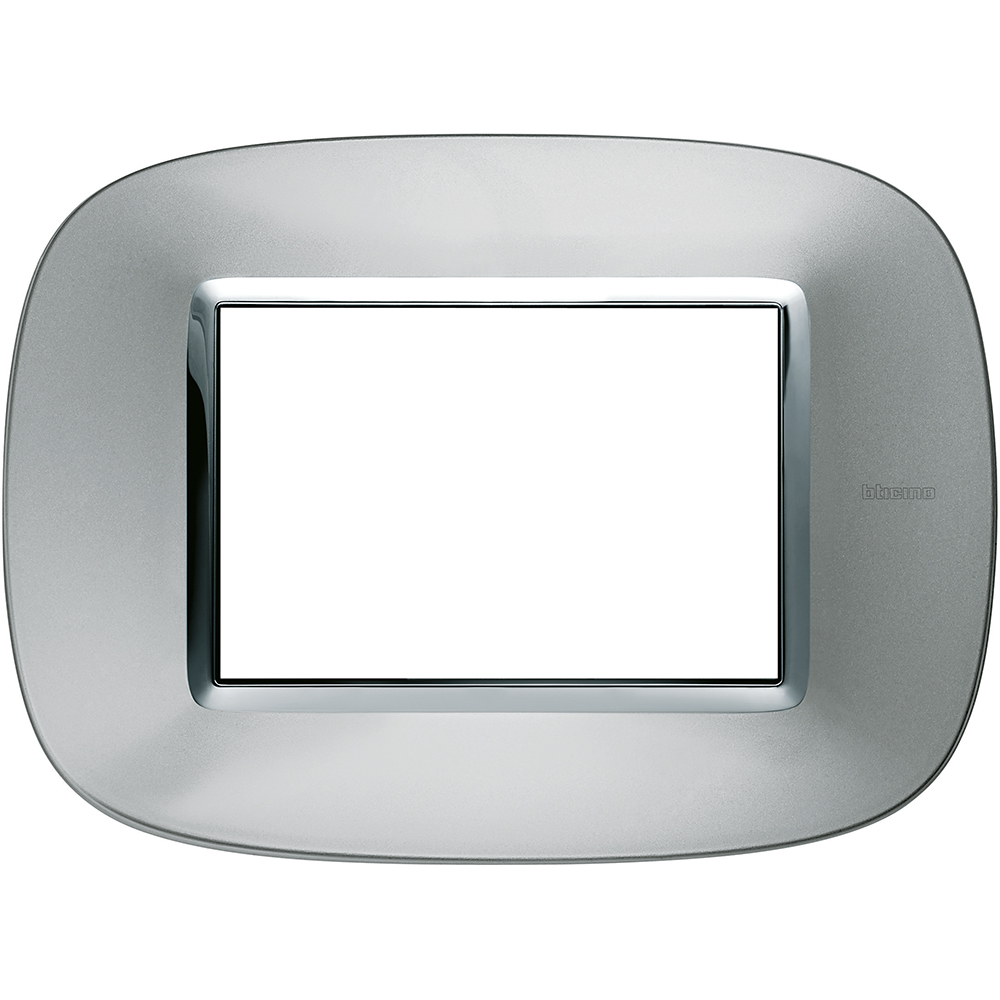

British standard elliptical cover plate 1 gang
BT-HB4829XC
|
8012199827216
Technical Characteristics
Number of units
1
Mounting direction
Horizontal
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
2
Number of modules vertical (module system)
1
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
Yes
Label space/information surface
No
Material
Metal
Material quality
Other
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Lacquered
Surface finishing
Glossy
Colour
Aluminium
RAL-number (similar)
7035
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK00
Type of fastening
Engage (snap)
Width
124.2 mm
Height
91.6 mm
Depth
7.8 mm
Built-in width
0 mm
Built-in height
0 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Wood Climate area
Not applicable
