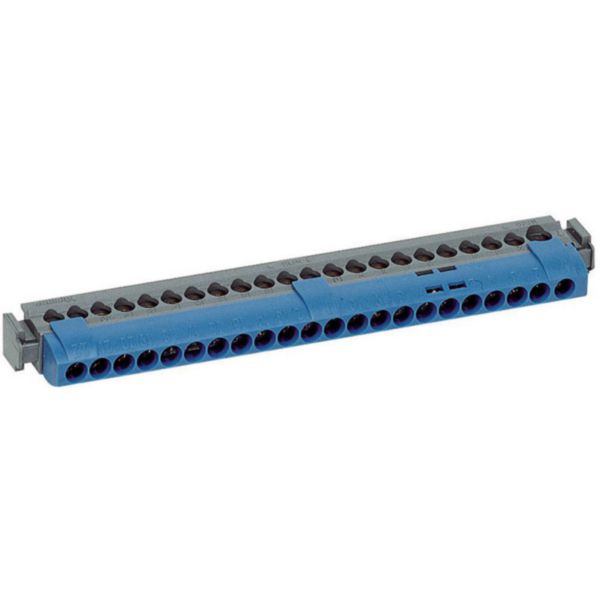

Earth terminal 22 poles for Serie E215 and Linea Space

Name: Earth terminal 22 poles for Serie E215 and Linea Space
Brand: BTicino
SKU: BT-FMM22T
Availability: InStock

BT-FMM22T | 8012199180328

Earth terminal 22 poles (1x25 mm2 + 21x16 mm2) for switchboards Serie E215 and Linea Space

Compare

Technical Characteristics

Number of poles 22

Nominal current 76 A

Connection type Screwing

Mounting method DIN rail

Number of inputs 1

Number of outputs 21

Suitable for solid conductors Yes

Suitable for stranded conductors Yes

Suitable for fine strand conductors Yes

Suitable for fine strand conductors without cable end sleeve No

Suitable for extra fine-strand conductors No

Suitable for extra fine-strand conductors without cable end sleeve No

Conductor cross section, input (Min-Max) 6-25 mm²

Conductor cross section, output (Min-Max) 1.5-16 mm²

Contact safe Yes

Height 30 mm

Width 176 mm

Depth 16 mm

Operating / setting temperature (Min-Max) -5-40 °C

Storage temperature (Min-Max) -25-70 °C

Type of distribution blocks Earth

Terminals capacity (Min-Max) 1.5-25 mm²

Label space/information surface No
