  • Flush-mounting box (yellow) 18 modules for LINEA SPACE and E215 series switchboards
Linea Space BTicino

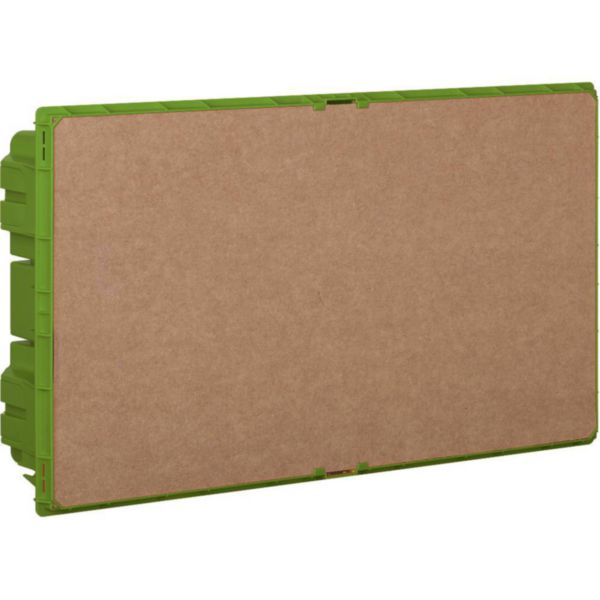

Flush-mounting box (yellow) 18 modules for LINEA SPACE and E215 series switchboards

BT-F315S18 | 8005543534281
Flush-mounting box (yellow) 18 modules for LINEA SPACE and E215 series switchboards
Technical Characteristics
Mounting method Flush-mounted
number of rows 1
Width in number of modular spacings 18
Type of covering Optional
Signal passing door Yes
With lock No
Type of closure Other
Housing material Plastic
Built-in depth 85 mm
Built-in height 244 mm
Built-in width 432 mm
Inner depth 80 mm
Earthing terminal block No
Neutral terminal block No
DIN-rail Yes
With mounting plate No
Extension possible Yes
Colour Orange
RAL-number 1016
Degree of protection (IP) IP40
Height 248 mm
Width 436 mm
Depth 85 mm
Enclosure capacity (Nb of modules) 18
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) -10-60 °C
Storage temperature (Min-Max) -20-70 °C
Fitted with rainproof plate protection No
Documentation
1 documents
Technical Sheet
IDP000065EN-02 | PDF (1.4 MB) | EN
1 documents
PEP-EPD
LGRP-01891-V01.01-EN | PDF (683 KB) | EN
