XCP-S ZUCCHINI

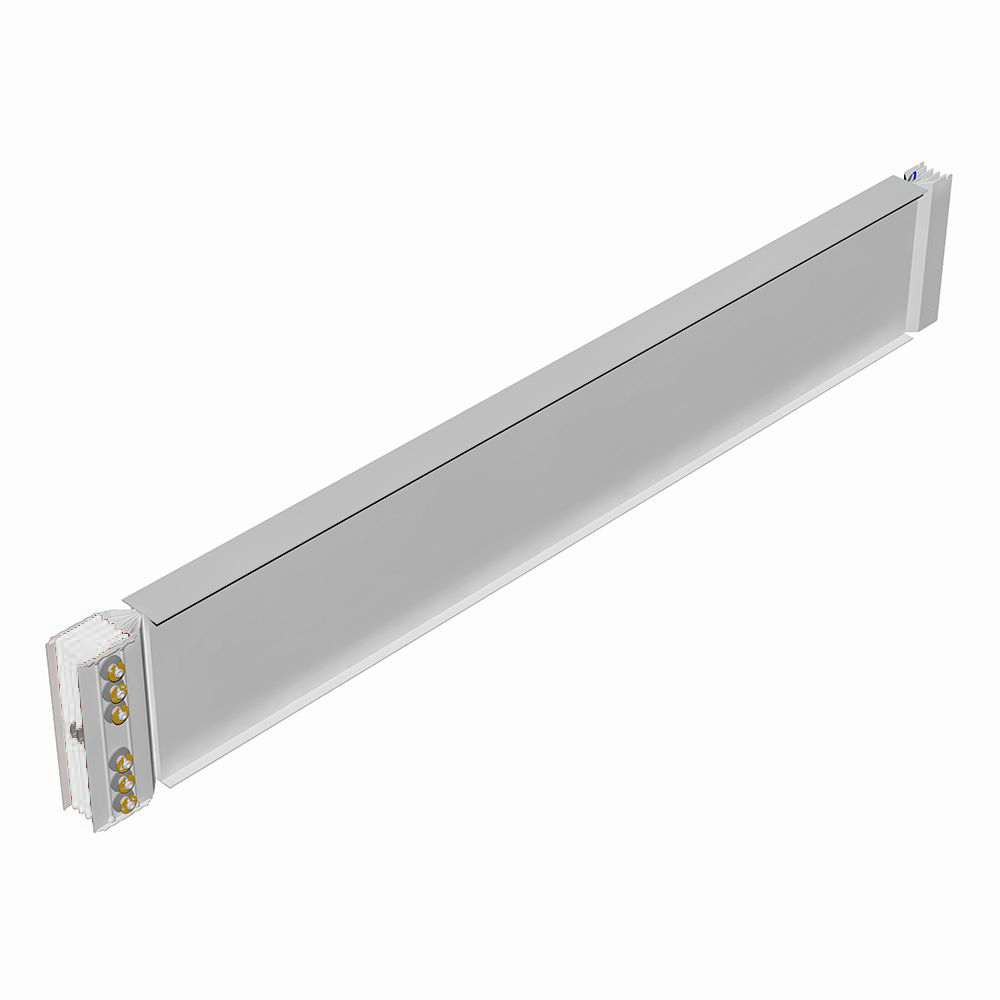

Straight element for transport XCP-S (Al). L= 3m - In= 3200A

ZU-64390116P | 8033777517176
XCP-S - straight element for transport (Al). Length 0.5-1m - In= 3200A
Technical Characteristics
Model Double
Rated current AC 50 Hz 3200 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 1000 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
