XCP-S ZUCCHINI

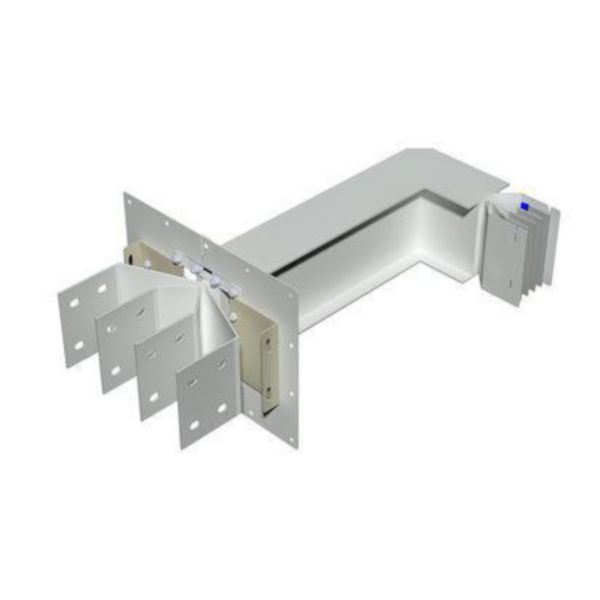

Exit bars element + horizontal elbow XCP-S (Al). Type 1 - In= 1250A

ZU-64281304P | 8033777451364
XCP-S - exit bars element + horizontal elbow (Al). Type 1 - In= 1250A
Technical Characteristics
Rated current AC 50 Hz 1250 A
Power supply position End
Model Single
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1300 mm
Height 120 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
