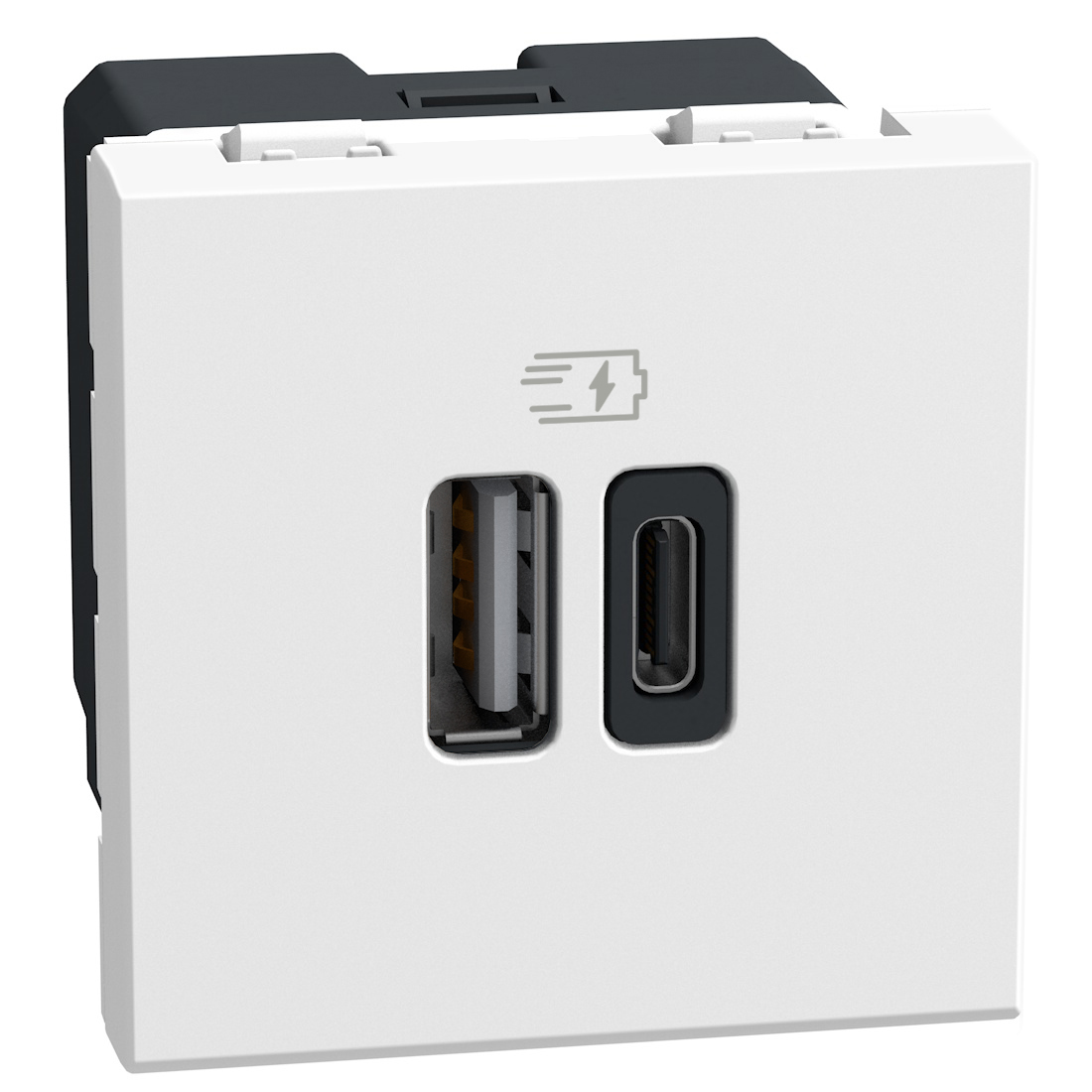

Double USB sockets - 2 x Type-A + Type-C - 15 W - 2 module - white
BT-YW4287C2
|
8005543750322
Description
The built-in USB charger Light Now allows the simultaneous loading of two electronic terminals (mobile phones, tablets, cameras or other devices). Equipped with 2 USB outputs, one of type A and one of type C.
Product characteristics
- Type A and C USB charger with 5 Vd.c. for fast charging of single devices up to 3,000 mA or simultaneous charging of two devices up to 1,500 mA
- Direct Power 110-230 V 50-60 Hz - 2 modules
- 2 modules
- Color White
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Further improvement of the installation and removal in support thanks to the new generation of plastic hooks.
Usage
- It is the ideal charger for smartphone, tablet or powerbank.
Advantages
- Save time during installation: you can wire a device instead of two
- It is coordinated with the Light Now aesthetic
- Save time during installation: you can wire a device instead of two
Technical Characteristics
Model
Other
Number of ports USB-A
1
Number of ports USB-C
1
Operating voltage (Min-Max)
100-240 V
Frequency (Min-Max)
50-60 Hz
Max. output current
3000 mA
Output voltage (Min-Max)
5-5 V
Power consumption
0.083 W
Connection type
Screwed terminal
Mounting method
Flush-mounted
Colour
White
RAL-number
9003
Device width
45 mm
Device height
45 mm
Device depth
41 mm
Min. depth of built-in installation box
43 mm
Suitable for degree of protection (IP)
IP40
degree of impact strength (IK)
IK04
Antimicrobial treatment
No
Wireless
No
Built-in depth
33 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
USB Output Power
15
Supply current (Min-Max)
0.5-0.5 A
Mandatory neutral
Yes
Terminal marking indication
Yes
Stress test conformity (1000V)
No
Halogen free
Yes
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Number of modules (module system)
2
