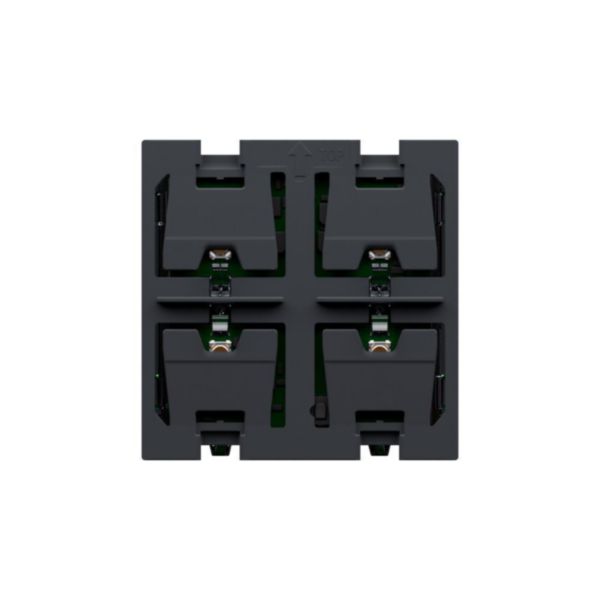

Actuator/control with 2 independent relays for single or double loads
BT-K4672M2LM
|
8005543808429
Description
Actuator/control with 2 independent relays for single or double loads: the device can be also configured to manage a remote actuator with the same function of K4652M2M 2 modules
Product characteristics
- It allows to manage and control different light loads.
- 2 modules
Recommendations / Restrictions
- Indoor usage only
Products benefits
Installation
- 2 modules flush mounting installation
Usage
- Flexibility function: the same command could be configured for remote actuator
Advantages
- it is easily configured by app
- You can configure up to 4 functions on the same command, for example 4 lights, 4 scenes,...
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system KNX Secure
No
Bus system KNX Secure-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
Flush-mounted
Width in number of modular spacings
2
Local operation/hand operation
Yes
With LED indication
Yes
Number of digital inputs
4
Max. number of switching contacts
2
Rated operating voltage (Min-Max)
18-27 V
With bus connection
Yes
Min. depth of built-in installation box
55 mm
Modular expandability
No
Degree of protection (IP)
Other
Width
45 mm
Height
45 mm
Depth
36 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
0-40 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
DC
Supply current (Min-Max)
0.0061-0.0086 A
Terminal marking indication
Yes
Halogen free
Yes
Connection type
Screw connection
Terminals capacity (Min-Max)
0.34-2.5 mm²
Label space/information surface
No
Fitted with USB plug
No
Addressable
Yes
Connected object
No
Operating method
SCS
With voice command
No
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Product use function
Control & command systems
Documentation
2 documents
Instruction Use
LE15746AA | PDF (2.6 MB) | AR · DE · EN · ES · FR · IT · NL · PT · RU
Technical Sheet
ST-00002486-EN | PDF (364 KB) | EN
