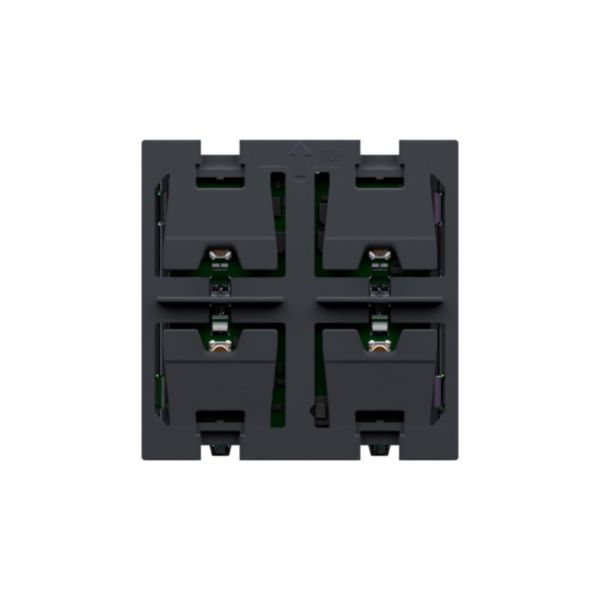

Control multifunction version to manage up to 4 ON/OFF functions
BT-K4652M2M
|
8005543808405
Description
4 lights ON/OFF functions and adjustment of a dimmer load - 2 Shutter UP/DOWN and advanced functions - 4 Scenarios and load & force control - VDE control call to the floor, staircase light switching on and door lock activation functions.
Product characteristics
- Possibility to manage the multifunction (up t 4 functions) over the same 2M modularity
- 2 modules
Recommendations / Restrictions
- Indoor usage only
Products benefits
Installation
- 2 modules flush mounting installation. Maximun quality in terms of materials and installation
Usage
- Function flexibility: the same command could be configured for different functions
Advantages
- it is easily configured by app
- You can configure up to 4 functions on the same command, example: 4 lights, 4 scenes,...
Technical Characteristics
Bus system KNX
No
Bus system KNX-RF (Radio Frequency)
No
Bus system KNX Secure
No
Bus system KNX Secure-RF (Radio Frequency)
No
Bus system radio frequency
No
Bus system LON
No
Bus system Powernet
No
Other bus systems
Other
Radio frequency bidirectional
No
Mounting method
Flush-mounted
With anti-theft/dismantling protection
No
With bus connection
Yes
Number of actuation points
4
Number of buttons
4
With LED indication
Yes
With label area
No
With display
No
Material
Other
Material quality
Other
Surface protection
Untreated
Surface finishing
Matt
Colour
Anthracite
RAL-number (similar)
9011
Transparent
No
With room temperature controller
No
With IR sensor
No
Degree of protection (IP)
Other
Min. depth of built-in installation box
30 mm
Width
45 mm
Height
45 mm
Depth
18 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
0-40 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
0-0 Hz
Standby consumption
4.1 mA
Terminal marking indication
Yes
Halogen free
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
0.34-2.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Addressable
Yes
Contains Batteries and/or Accumulator
No
Connected object
No
Operating method
SCS
With voice command
No
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Product use function
Control & command systems
Documentation
2 documents
Instruction Use
LE15745AA | PDF (2.3 MB) | AR · DE · EN · ES · FR · IT · NL · PT · RU
Technical Sheet
ST-00002484-EN | PDF (161 KB) | EN
