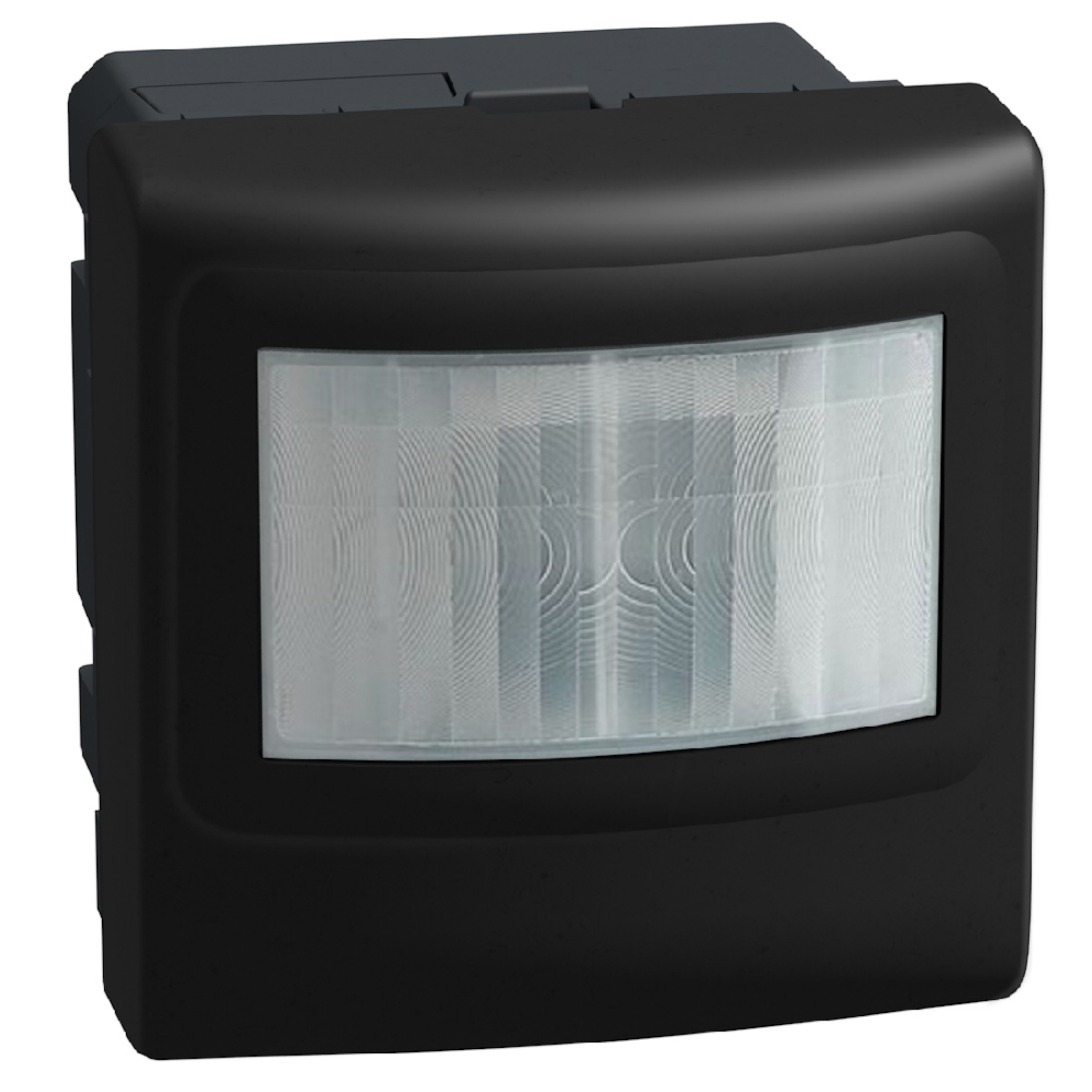

Green Switch: dual technology presence sensor (PIR + US) - Power supply 27Vdc - 2 modules - dark.
BT-YD4658
|
8005543768471
Description
LightNow Green Switch dark dual technology presence sensor, PIR and ultrasound, suitable for the presence detection in the work areas, with manual on/off switch. Mode of operation auto-manual
Product characteristics
- flush mounted version
- dual tech infrared and ultrasound
- flush-mounted 2-module
- colour dark
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor usage only
Products benefits
Installation
- in standard boxes like wiring devices range
Usage
- dual tech suitable for work spaces
Technical Characteristics
With movement sensor
Yes
With presence detector
Yes
With light sensor
Yes
Mounting method
Flush-mounted
Constant light control
Yes
HVAC-control
No
Networkable
No
Suitable for wireless transmission
No
Creep-under protection
No
Mounting height
1.2 m
Max. reach sideways
6 m
Max. reach frontally
8 m
Diameter reach on floor
6 m
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Animal zone
No
Staircase light controller
No
Combination movement sensor/push button switch
Yes
With orientation lighting
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Suitable for degree of protection (IP)
IP20
Operation mode switch
Yes
Min. switch-on time
5 s
Max. duty cycle
60 min
Detection angle horizontal (Min-Max)
0-140 °
Colour
Black
RAL-number (similar)
7015
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Width
45 mm
Height
45 mm
Depth
51 mm
Built-in depth
40 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
Standby consumption
15 mA
Terminal marking indication
Yes
Antimicrobial treatment
No
Terminals capacity (Min-Max)
0.75-1.5 mm²
Cable nature for connection
Flexible or rigid
