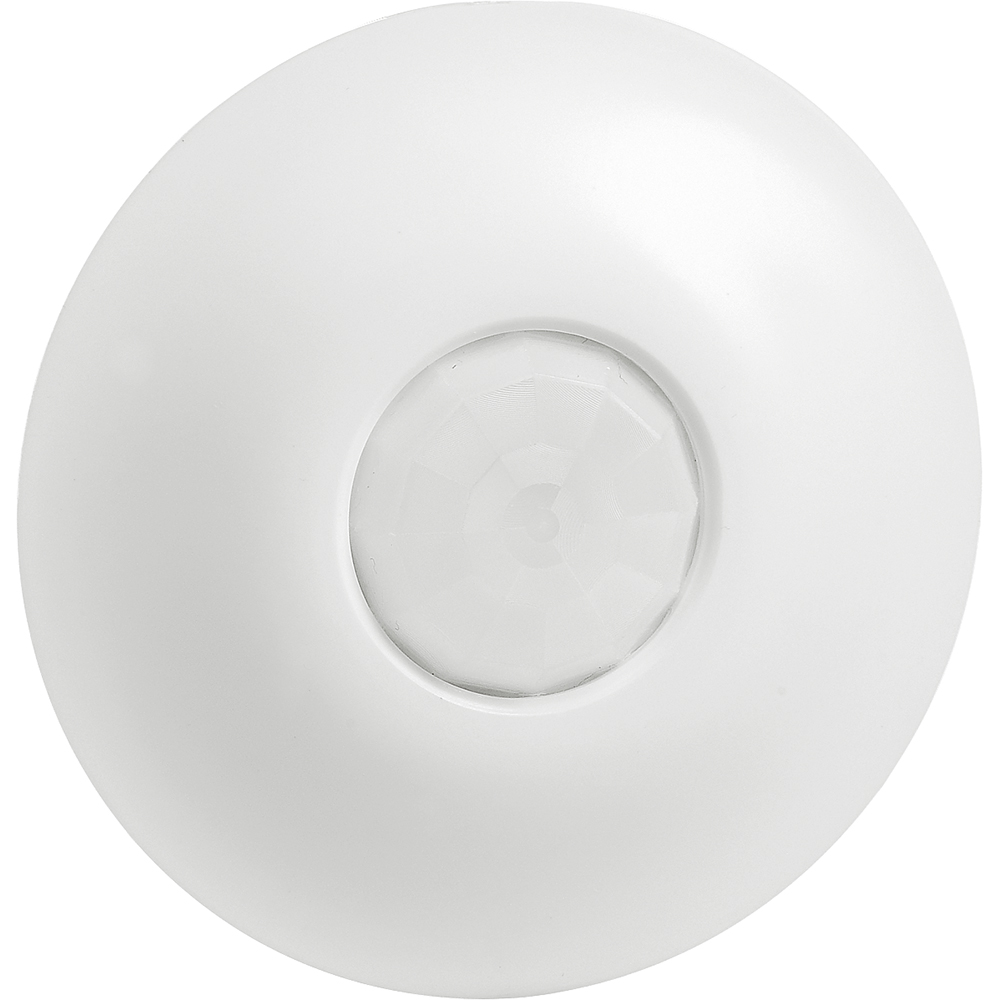

Switch sensor PIR for surface installation
BT-BMSA2204
|
8005543497074
Description
Switch Sensor with PIR high density lens, for movement detection and level of illumination, “Zero Crossing” tech, ON/OFF, flush mount installation in the ceiling, IP20, 100-240Vac 50/60 Hz, max load 8.5 A at 230Vac, HVAC load management
Product characteristics
- PIR high density detection 360°, range Ø8m at 2,5m high
- IP 20
- switching control (3-wire with neutral)
- Standby consumption: 0.8 W
- With an additional 2 A contact for HVAC control, based on presence data
Recommendations / Restrictions
- Optimum distance between 2 sensors: 6 m
Products benefits
Installation
- Precise on-site adjustment using configuration tool Cat.No 0 882 40
Usage
- Ideal for offices and working areas with natural light needing HVAC control
Advantages
- Can be used with push-button for vacancy mode (manual switch-on and manual or automatic switch-off)
- PIR high density uses a special lens designed to detect the slightest move
- Fix directly to a false ceiling with mounting claws (included)Can be surface-mounted in ceiling using accessory Cat.No 0 488 75
Technical Characteristics
Model
Presence detector
Movement sensor/presence detector technology
Passive infrared
Constant light control
Yes
Forced switch off
Yes
Animal zone
No
Creep-under protection
Yes
Background monitoring
No
Networkable
No
Optimum mounting height
2.5 m
Max. reach sideways
8 m
Max. reach frontally
8 m
Diameter reach on floor
8 m
Suitable for wireless transmission
Yes
Remote operation
Yes
Supplied remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
Yes
Teach-function for response value luminosity
Yes
Dim function with dimmer basic element
Yes
Mounting method
Flush-mounted
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Glossy
Colour
White
RAL-number (similar)
9006
Transparent
No
Degree of protection (IP)
IP20
Frequency (Min-Max)
50-60 Hz
Nominal voltage (Min-Max)
230-230 V
Min. switch-on time
5 s
Max. duty cycle
60 min
Detection angle horizontal (Min-Max)
360-360 °
Response value luminosity (Min-Max)
1-1000 lx
Number of switching zones
2
With alarm function
No
With acoustic sensor
No
Ambient temperature (Min-Max)
-5-45 °C
With connection cable
No
Connection cable length
0 mm
With DALI interface
No
