Light up Legrand

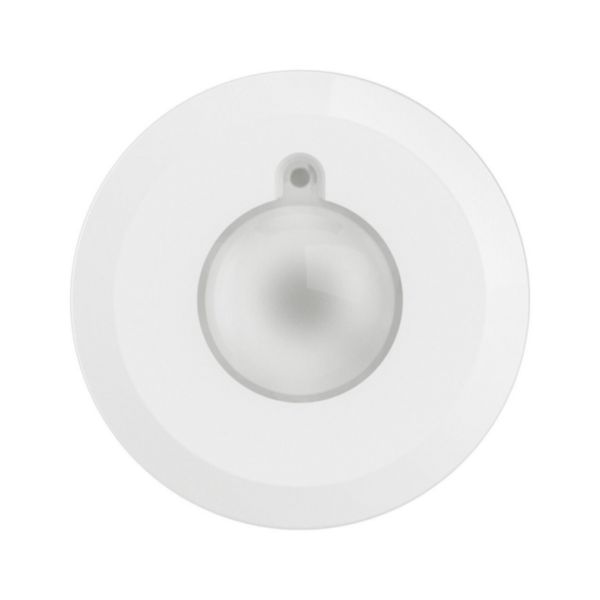

Light UP occupancy sensor for rooms, DALI2 1-zone dimmer Lighting control

LG-048552 | 3414972281171
Occupancy sensor for rooms and offices, DALI dimmer control (DALI2 certified).Adapts the Lighting to the presence and the luminosity.IR technology detection.Wireless master-slave function to extend the detection zone by associating a slave detector with the master detector connected to the Light.Possibility of combining a wireless batteryless Light control and a connected socket.Allows the management and control of 3 distinct Lighting zones depending on dayLight (+ Offset function).Configuration with Legrand Close Up App.
Description

LIGHT UP presence detector. Lighting control for DALI lighting circuits. Presence and brightness detection for switching on and off.

Product characteristics
  • Configuration via smartphone (without gateway)
  • High-performance detection with masking lens for optimum adjustment of the detection field
  • Manual override via wired or wireless / batteryless pushbutton
  • Matte finish for optimum ceiling integration
  • Manual override via wired or wireless / batteryless pushbutton
Recommendations / Restrictions
  • For indoor use only.
Products benefits
Installation
  • Wireless connectivity: makes it easy to configure the detector and install peripherals (push-button, conected socket)
Usage
  • Automatic management of a DALI lighting cicuit.
Advantages
  • Provision of presence and light level data for building services
Technical Characteristics
Bus system KNX No
Bus system KNX-RF (Radio Frequency) No
Bus system radio frequency Yes
Bus system LON No
Bus system Powernet No
Other bus systems Zigbee
Radio frequency bidirectional Yes
Model Presence detector
Mounting method Flush-mounted
Suitable for ceiling mounting Yes
Material Plastic
Material quality Thermoplastic
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With bus connection No
Substation input Yes
Creep-under protection No
Operation mode switch No
Animal zone No
Staircase light controller Yes
Response value luminosity adjustable Yes
Teach-function for response value luminosity Yes
DALI-2 certified Yes
Optimum mounting height 2.5 m
Diameter reach on floor 12 m
Detection angle horizontal (Min-Max) 0-360 °
Number of channels 64
Min. switch-on time 15 s
Max. duty cycle 59 min
Width 83 mm
Height 83.2 mm
Depth 83 mm
Diameter 83 mm
Built-in depth 59.3 mm
Built-in diameter 68 mm
degree of impact strength (IK) IK04
Degree of protection (IP) IP20
Operating / setting temperature (Min-Max) -10-30 °C
Storage temperature (Min-Max) -20-70 °C
Voltage type AC
Mandatory neutral Yes
Halogen free Yes
Connection type Screwed terminal
Addressable Yes
Contains Batteries and/or Accumulator No
Connected object Yes
Operating method Zigbee, Phase cut-on
Application store for download App Store, Google Play Store
Programming way Web software
With voice command No
Programmable Yes
Interoperable connection Protocol Yes
Connectable by Internet box No
Application name Legrand Close-Up
Product use function Energy and lighting management
