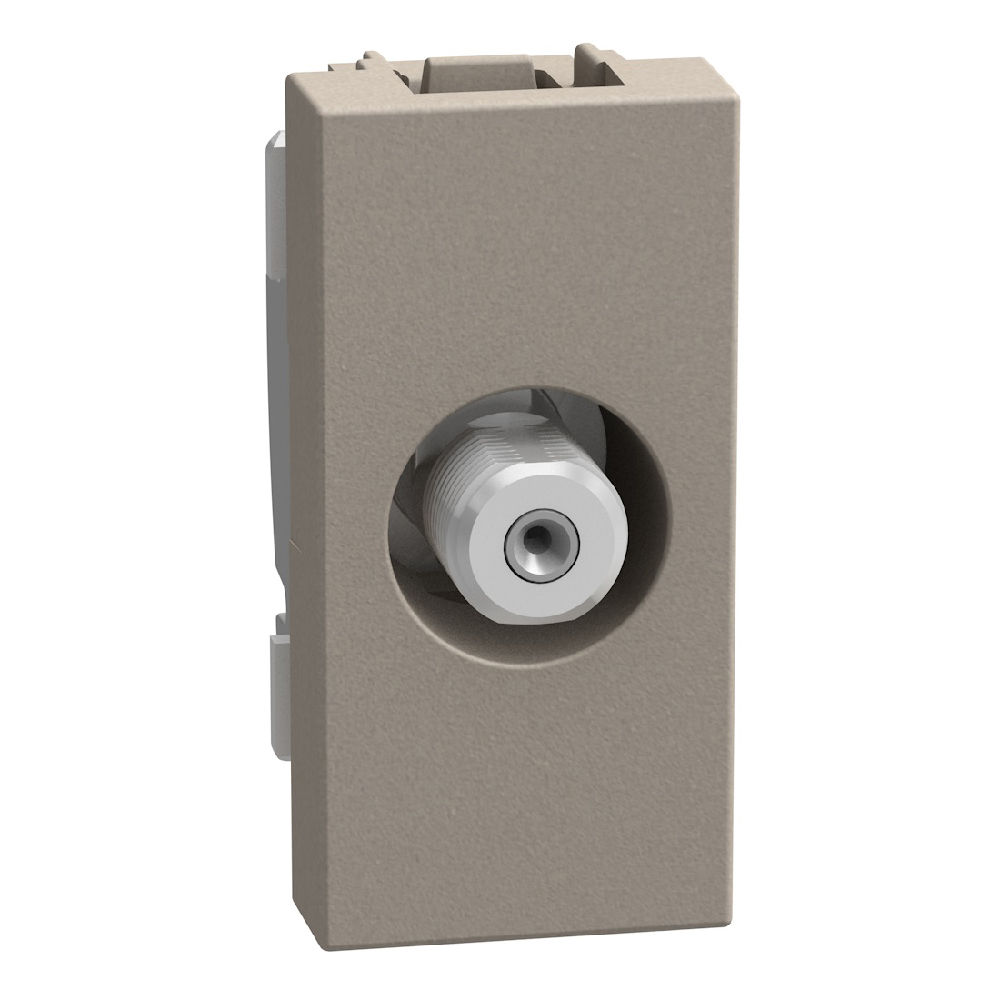

Type F TV coaxial connector - 1 module - stone
BT-YG4202F
|
8005543745649
Description
The Light Now coaxial TV socket, type F, allows you to connect all types of TV with a very high definition quality (UHD). Its " screw connection allows a reliable and secure connection.", color stone
Product characteristics
- Satellite TV socket
- F-type, 1 module
- 1 module
- Color Stone
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only
Products benefits
Installation
- Easy to install and remove
Usage
- Allows to connect the TV cable
Advantages
- Hight technical performance
Technical Characteristics
Model
Loop-through socket
Type of socket outlet
SAT
DAB+
No
Mounting method
Flush-mounted
Number of modules (module system)
1
Assembly arrangement
Basic element
Tap loss at 860 MHz
1.5 dB
Tap loss at 2150 MHz
2 dB
Number of outlets
1
Suitable for cable modem
No
Through loss at 860 MHz
1.5 dB
Through loss at 2150 MHz
2 dB
TV frequency band (Min-Max)
50-60 MHz
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Colour
Grey
RAL-number (similar)
7008
Surface protection
Lacquered
Surface finishing
Matt
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
22.5 mm
Device height
45 mm
Device depth
32.5 mm
Min. depth of built-in installation box
34.5 mm
Built-in depth
24.5 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Terminal marking indication
No
