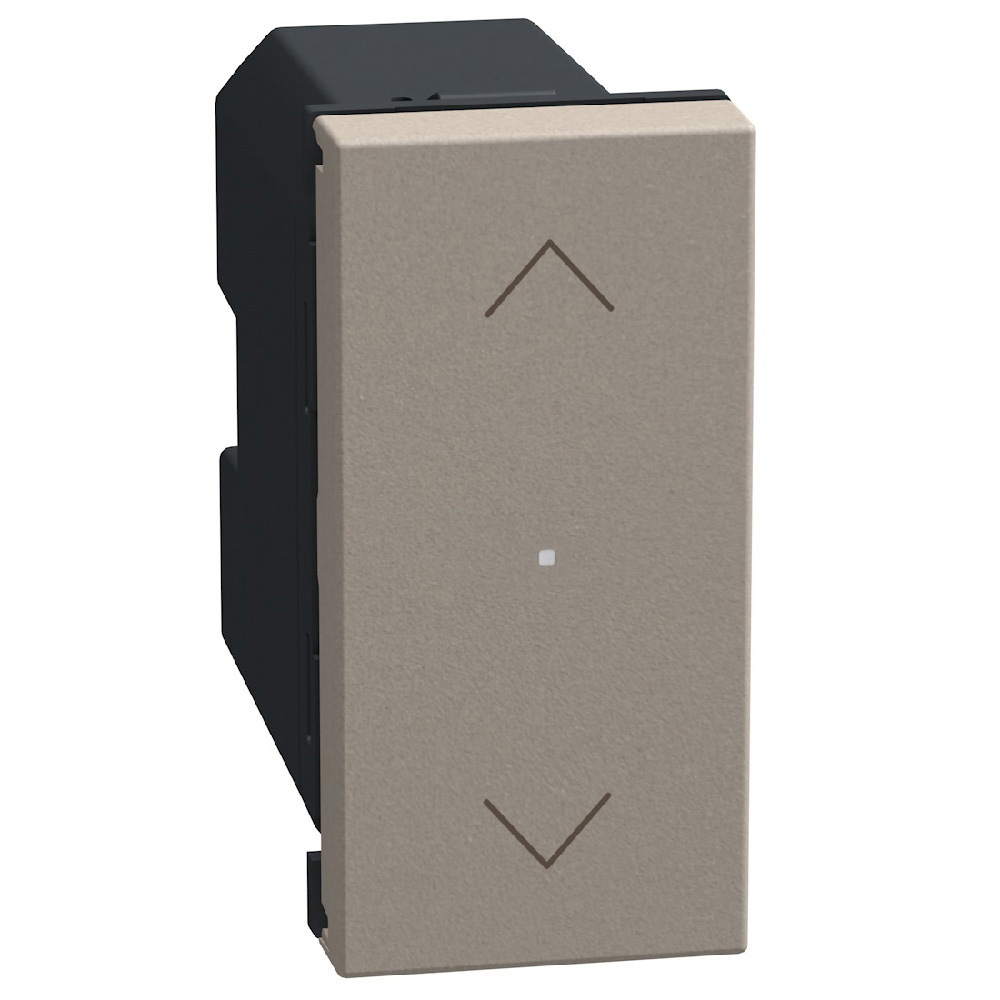

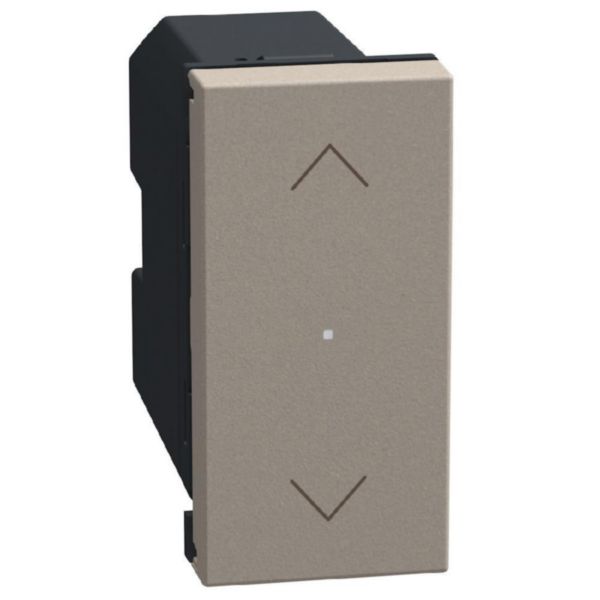

Flush-mounting shutter wireless switch - 3V battery power supply - 1 module - stone
BT-YG4027CWI
|
8005543749968
Description
The roller shutter wireless switch allows you to control your roller shutters remotely via the Home + Control app or by using your voice, and to centralise control of several roller shutters without pulling more wires through
Product characteristics
- Up/down/stop function
- LED indicator with low battery warning
- Supplied with a replaceable battery with an 8-year lifetime
- Stone
Recommendations / Restrictions
- To pair your roller shutter wireless switch, you first need to purchase and install a Light Now with Netatmo gateway, as well as one or more Light Now with Netatmo connected roller shutter switches
Products benefits
Installation
- The wireless switch has the same dimension of traditional 1module switch. It can be installed onto a flush-mounting box.
Usage
- Pair as many connected roller shutter switches as you wish and control them all with a single press on your wireless switch
Technical Characteristics
Radio frequency
2400 MHz
Rolling code system
Yes
Code length (Bit)
128
Range
185 m
Number of commands
2
With manual radio transmitter
Yes
Flush-mounted radio transmitter
Yes
Surface mounted radio transmitter
No
With radio coding device
Yes
Degree of protection (IP)
IP40
Keyboard protection cover
No
Current supply
Battery
Width
22.5 mm
Height
45 mm
Depth
44 mm
Built-in depth
36 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
5-45 °C
Storage temperature (Min-Max)
0-45 °C
Standby consumption
0 mA
Mandatory neutral
No
Stress test conformity (1000V)
No
Colour
Beige
RAL-number
7008
Halogen free
Yes
Antimicrobial treatment
No
Mounting method
Flush-mounted
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR2032
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
1
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
3 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Connected object
Yes
Operating method
Zigbee
Application store for download
Google Play Store, App Store
Programming way
Smartphone apps
With voice command
Yes
Programmable
Yes
Interoperable connection Protocol
Yes
Connectable by Internet box
Yes
Compatible voice assistants
Google Assistant, Amazon Alexa, Apple Siri
Application name
Home + Control
Product use function
Shutter management
