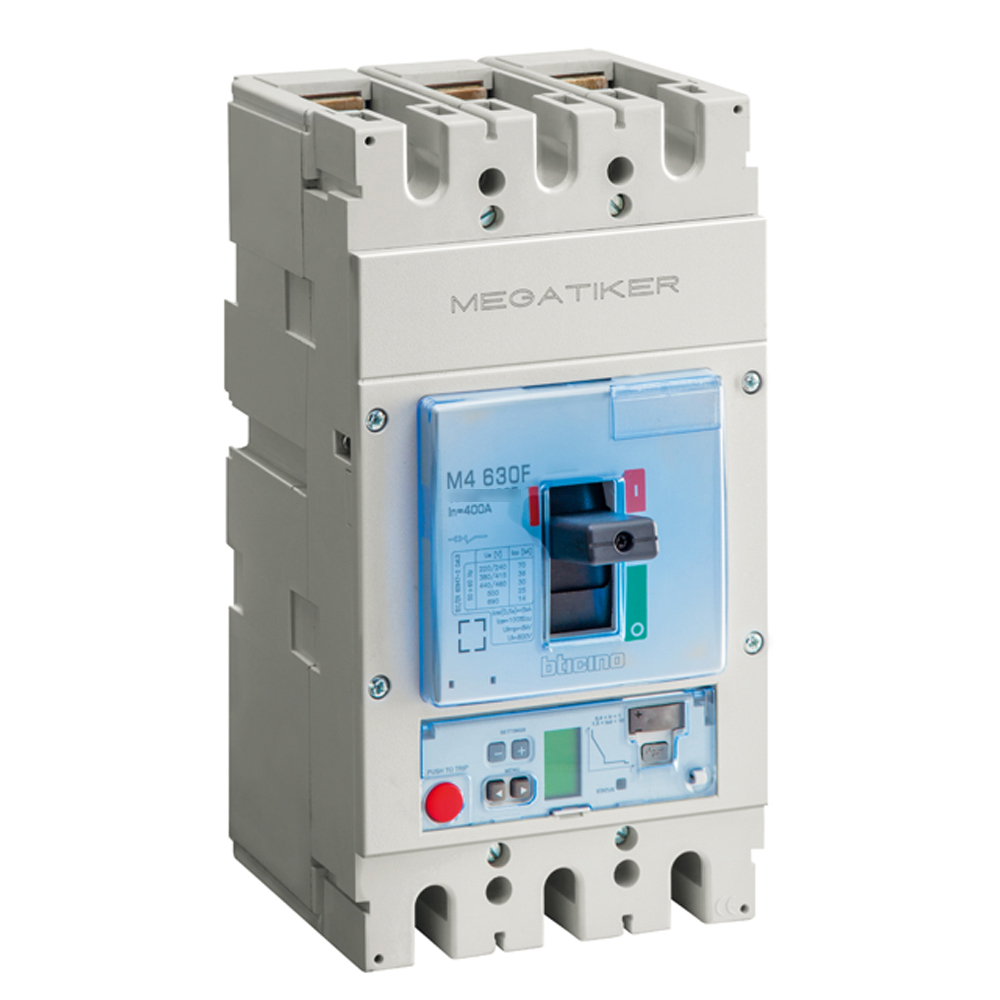

MP4 630F - electronic Mccb 3P for motor operator protection - In= 400A - Icu= 36kA
BT-T743F400MPE
|
8005543555781
Technical Characteristics
Rated permanent current Iu
400 A
Rated voltage (Min-Max)
220-690 V
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz
36 kA
Overload release current setting (Min-Max)
160-400 A
Adjustment range undelayed short-circuit release (Min-Max)
2000-4000 A
Device construction
Complete device in housing
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
No
Number of auxiliary contacts as change-over contact
2
With switched-off indicator
Yes
With integrated under voltage release
Yes
Number of poles
3
Position of connection for main current circuit
Front side
Type of control element
Wing knob
Complete device with protection unit
Yes
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP30
Width
140 mm
Height
260 mm
Depth
144 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-5-70 °C
Storage temperature (Min-Max)
-40-85 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Electric supplying direction
By the top or bottom
Terminal marking indication
No
Colour
Grey
RAL-number
7035
Halogen free
Yes
Terminals capacity (Min-Max)
120-240 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
Yes
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR1616
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
2
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
1.1 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
Documentation
2 documents
Instruction Use
LE06314AA | PDF (1.5 MB)
Instruction Use
LE07060AA | PDF (827 KB)
1 documents
Catalog Commercial Page
3244051 | PDF (28.2 MB) | EN
