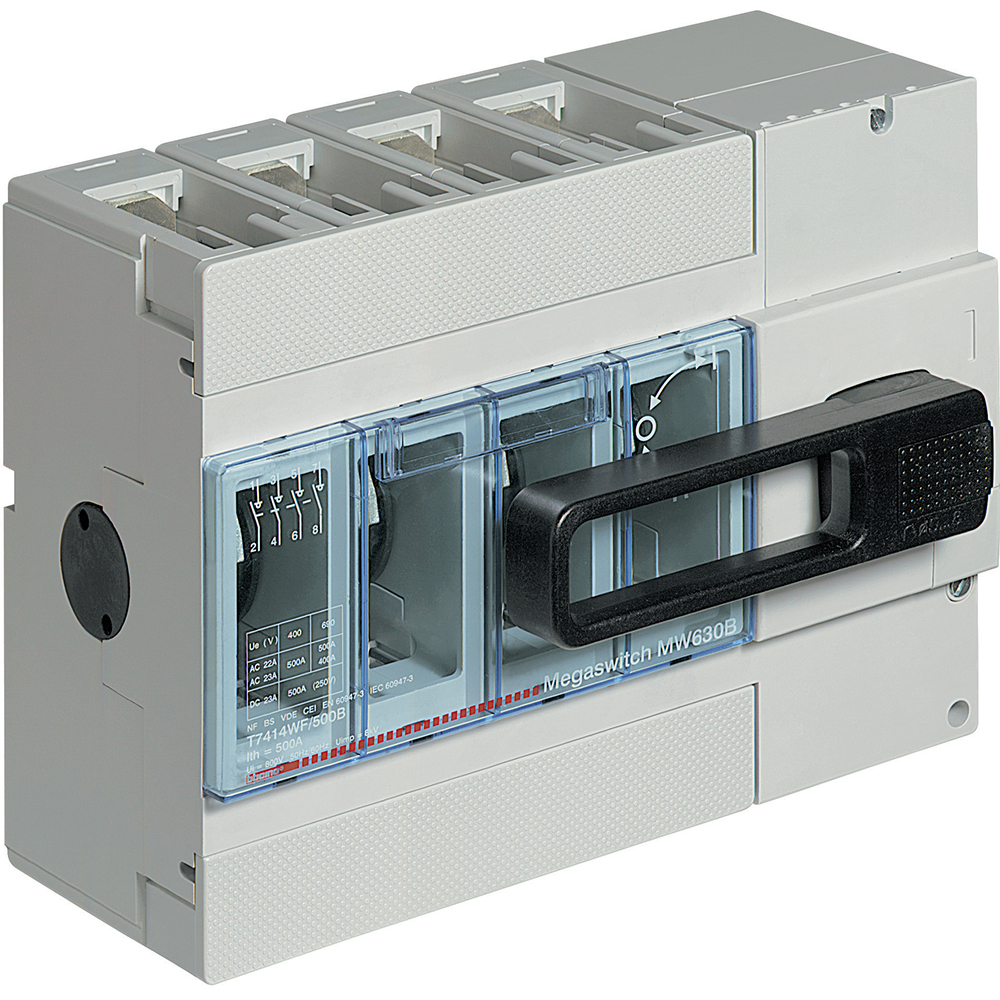

Disconnector MW630 - 4P - 500A
BT-T7414WF/500
|
8012199684437
Technical Characteristics
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated operating voltage (Min-Max)
220-690 V
Rated permanent current Iu
500 A
Rated short-time withstand current lcw
9 kA
Rated operation power at AC-23, 400 V
200 kW
Number of poles
4
Motor drive optional
No
Motor drive integrated
No
Device construction
Complete device in housing
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
Yes
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Colour control element
Black
Type of control element
Turn button
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Documentation
1 documents
Instruction Use
Y0271C | PDF (1.6 MB)
