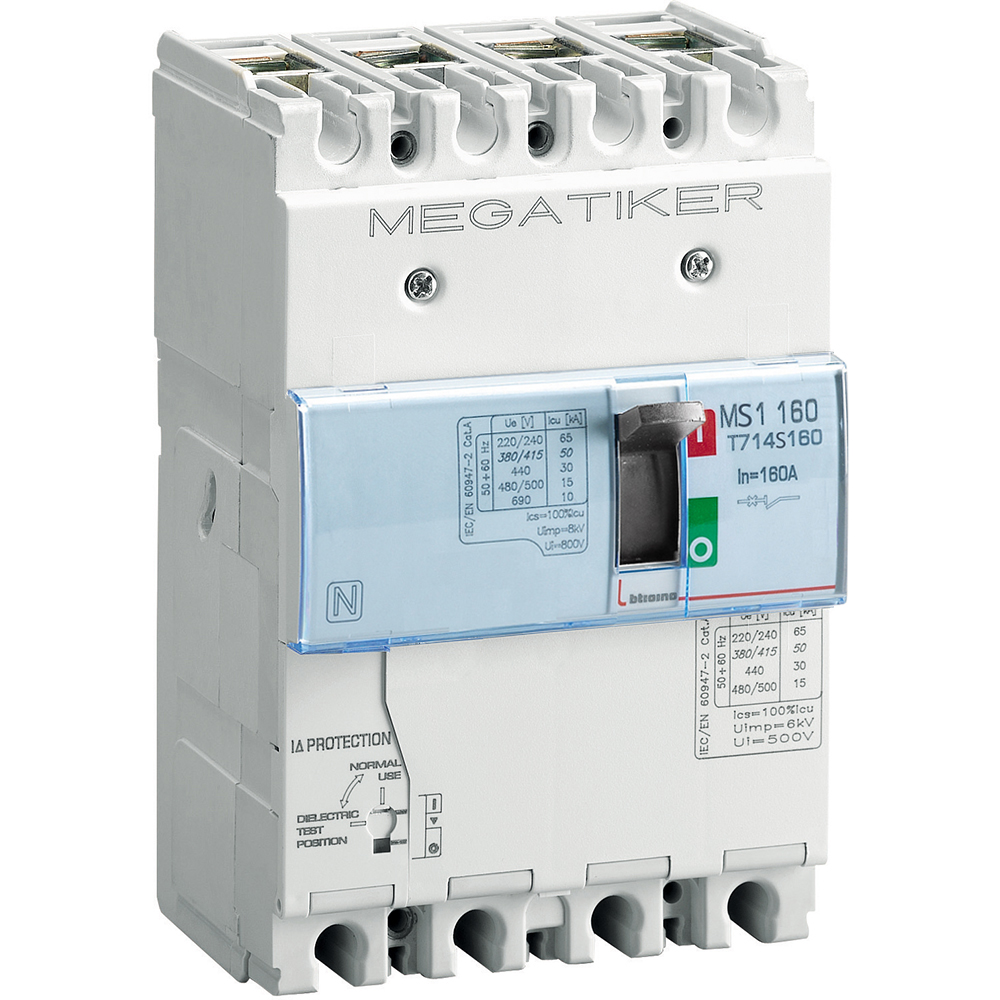

MS1 160 disconnector 4P with earth leakage protection - In= 160A
BT-T714S160DB
|
8005543409145
Technical Characteristics
Version as main switch
Yes
Version as maintenance-/service switch
Yes
Version as safety switch
Yes
Version as emergency stop installation
Yes
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated operating voltage (Min-Max)
220-690 V
Rated permanent current Iu
160 A
Number of poles
4
Motor drive optional
Yes
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for floor mounting
Yes
Suitable for front mounting 4-hole
No
Suitable for front mounting centre
No
Suitable for distribution board installation
Yes
Suitable for intermediate mounting
No
Colour control element
Grey
Type of control element
Wing knob
Interlockable
Yes
Type of electrical connection of main circuit
Screw connection
Degree of protection (IP), front side
IP20
Contains Batteries and/or Accumulator
Yes
IEC code (Pack1)
CR1616
Battery ou Accumulator (Pack1)
Battery (not rechargeable)
Element Composition (Pack1)
Lithium (battery or accumulator)
Number of Pack 1
2
Number of Single Element (Pack1)
1
Single Element weight (Pack1)
1.1 g
Pack1 Location
Product includes a battery
Regulation Type (Pack1)
P : Portable (Standard format)
