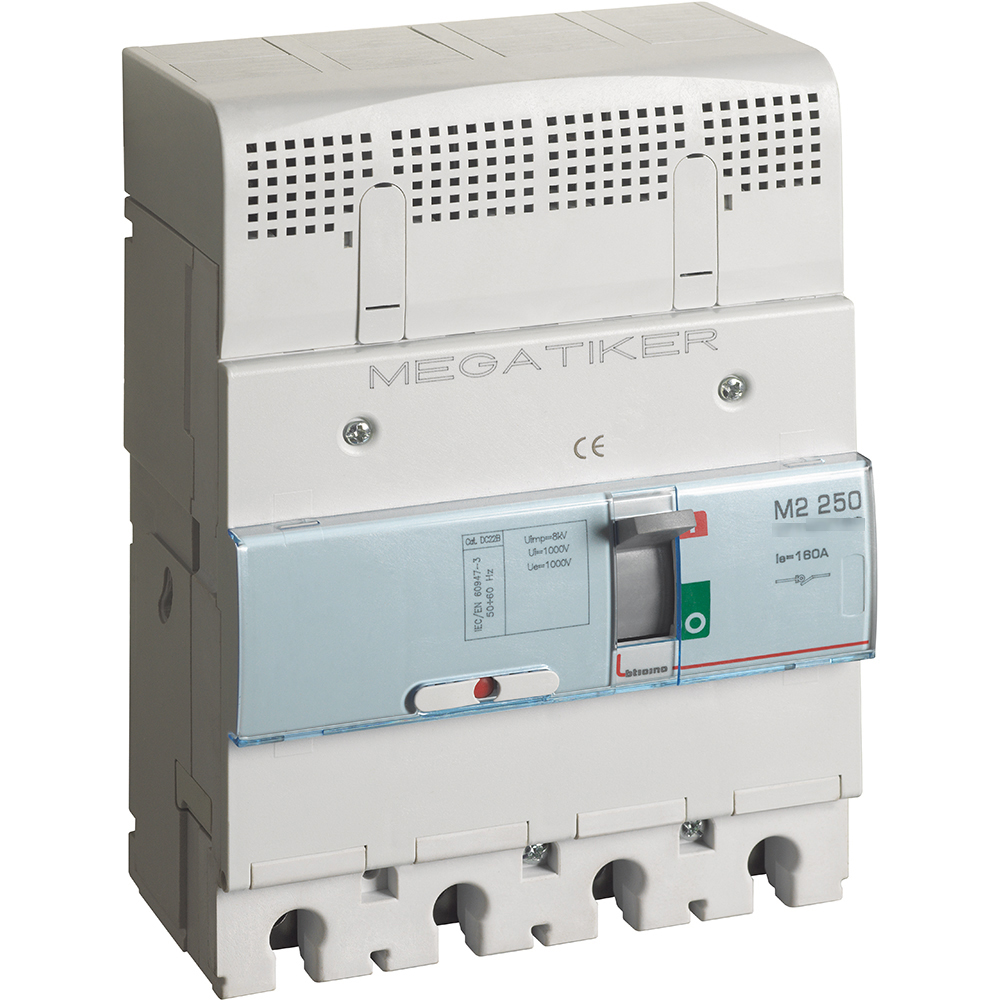

Moulded case disconnector for photovoltaic category DC23A - In= 125A - Vn= 1000Vdc
BT-T714FV125
|
8005543489086
Technical Characteristics
Rated permanent current Iu
125 A
Rated voltage (Min-Max)
12-1000 V
Device construction
Built-in device fixed built-in technique
Integrated earth fault protection
No
Type of electrical connection of main circuit
Bolt connection
Suitable for DIN rail (top hat rail) mounting
No
DIN rail (top hat rail) mounting optional
Yes
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as normally open contact
0
Number of auxiliary contacts as change-over contact
2
With switched-off indicator
Yes
With integrated under voltage release
Yes
Number of poles
2
Position of connection for main current circuit
Front side
Type of control element
Wing knob
Complete device with protection unit
No
Motor drive integrated
No
Motor drive optional
Yes
Degree of protection (IP)
IP30
Width
140 mm
Height
142.5 mm
Depth
100 mm
degree of impact strength (IK)
Not applicable
Operating / setting temperature (Min-Max)
-5-70 °C
Storage temperature (Min-Max)
-40-85 °C
Voltage type
DC
Electric supplying direction
By the top or bottom
Terminal marking indication
No
Colour
Grey
RAL-number
7035
Halogen free
Yes
Terminals capacity (Min-Max)
2.5-50 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Documentation
1 documents
Brochure
3246500 | PDF (978 KB) | EN
