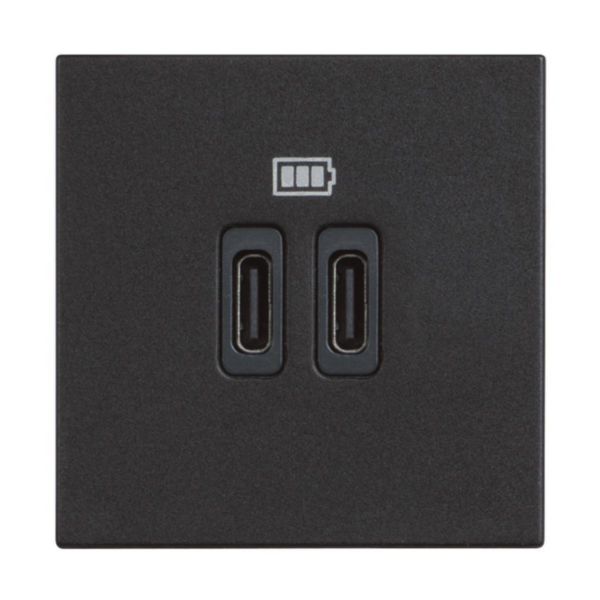

5 Vdc USB charger TYPE C
BT-RG4286C2
|
8005543632512
Description
USB charger 5 Vdc ,TYPE C for quick charge of one single electronic device (mobile phones, smartphones,tablets or similar) up to 3000 mA or simultaneouscharging of two devices up to 1500 mA- 110÷230 Va.c., 2 modules, color black
Product characteristics
- 5 Vdc, 3000mA, 12W
- TYPE C
- screw terminals
- color black
- 110÷230 Va.c., 50÷60 Hz power supply
Recommendations / Restrictions
- Instruction sheet inside
Products benefits
Installation
- Easy installation system
Usage
- Ideal charge for a smartphone, two smartphones, a tablet, a tablet and a smartphone.
Advantages
- Connector type C new generation
Technical Characteristics
Model
Other
Number of ports USB-A
0
Number of ports USB-C
2
Operating voltage (Min-Max)
100-240 V
Frequency (Min-Max)
50-60 Hz
Max. output current
3000 mA
Output voltage (Min-Max)
5-5 V
Power consumption
0.064 W
Connection type
Screwed terminal
Mounting method
Flush-mounted
Colour
Black
RAL-number
9011
Device width
44.7 mm
Device height
45 mm
Device depth
42.3 mm
Min. depth of built-in installation box
40 mm
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Antimicrobial treatment
No
Wireless
No
Built-in depth
33 mm
Operating / setting temperature (Min-Max)
5-40 °C
Storage temperature (Min-Max)
-20-70 °C
Voltage type
AC
Power Delivery
No
USB Output Power
15
Supply current (Min-Max)
0.5-0.5 A
Mandatory neutral
Yes
Terminal marking indication
Yes
Stress test conformity (1000V)
No
Halogen free
Yes
Number of terminals
2
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Number of modules (module system)
1
Documentation
1 documents
Technical Sheet
IDP000243_02-EN | PDF (834 KB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
