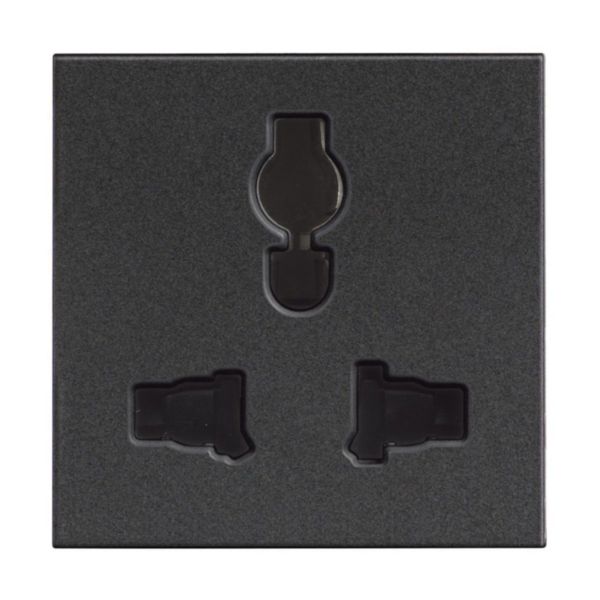

Multistandard socket 2P+E 5/6/10/13 A 250 Vac and 127 Vac
BT-RG4139
|
8005543636756
Description
This socket outlet allows to connect an electric or electronic device with plugs multistandard (BS,Indian, European standard) child protection shutters, color black.
Product characteristics
- 2P+E 5/6/10/13A socket 250 Va.c. and 127 Va.c.- multistandard: 5 A and 13 A = BS std; 6 A = Indian std., 10 A = European standard.
- shielded protection shutters
- screw terminals
- color black
- 250V
Products benefits
Installation
- Easy to insall and remove
Usage
- Child protection shutter
Technical Characteristics
Model
Multi-standard socket
Concurrently switching neutral conductor
No
Protective contact
Other
Number of active contacts (round)
2
Number of active contacts (flat)
2
Number of active contacts (square)
0
Mounting direction
Vertical
Assembly arrangement
Basic element with central cover plate
With complemantary luminous signal
No
Number of ports USB-A
0
Number of ports USB-C
0
Number of socket outlets
1
Socket outlets phase-separated
No
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
None
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
Black
RAL-number (similar)
9011
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
With loop through function
No
Number of loop throughs
1
With on/off switch
No
Colour of switch operator
Black
Rotated central insert
No
Nominal current
13 A
Nominal voltage
250 V
Degree of protection (IP), connected plug
IP20
Frequency (Min-Max)
50-60 Hz
Rated fault current
16 mA
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Device width
45 mm
Device height
45 mm
Device depth
41.5 mm
Min. depth of built-in installation box
42 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Built-in depth
32 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
Terminal marking indication
No
Prewired
No
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Cable support
Screw cable clamp
Connected object
No
