  6. BT-RG4028H
  • Make up the room/do no disturb 1P 10 A – 250 Vac double-key changeover switch
  • Make up the room/do no disturb 1P 10 A – 250 Vac double-key changeover switch
  • Make up the room/do no disturb 1P 10 A – 250 Vac double-key changeover switch
Classia BTicino

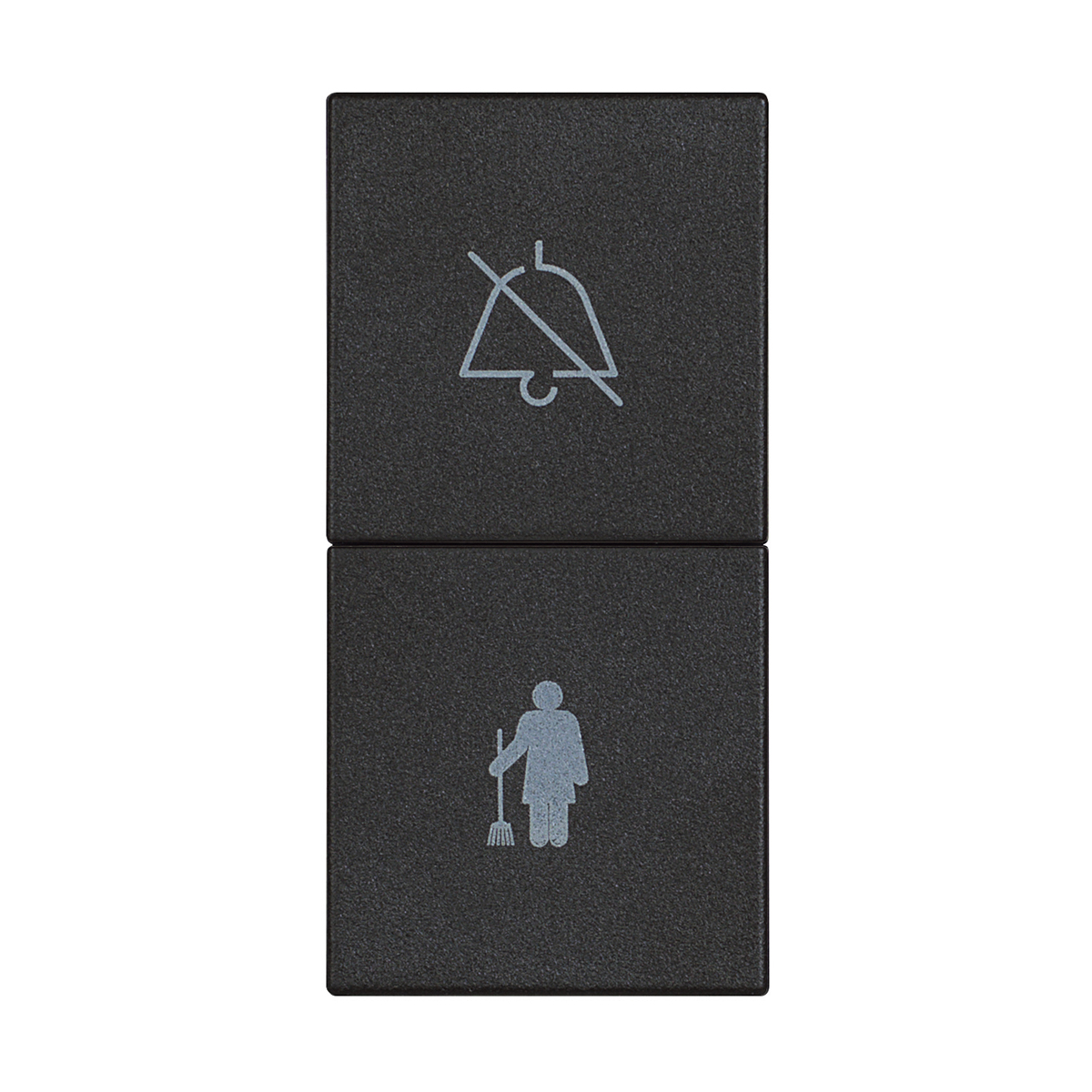

Make up the room/do no disturb 1P 10 A – 250 Vac double-key changeover switch

BT-RG4028H | 8005543637371
Make up the room/do no disturb 1P 10 A – 250 Vac double-key changeover switch 1-0-2 with interlock and double signalling: do not disturb and make up the room. 1 module - Black
Description

Double-key changeover switch 1P 10 A – 250 Va.c. , 1-0-2 with interlock and double signalling: "do not disturb” and “make up the room” for Hotel. 1 module, color black

Product characteristics
  • Double-key changeover switch 1P 10 A – 250 Va.c. , 1-0-2 with interlock and double signalling: "do not disturb” and “make up the room” for Hotel
  • 1 module
  • color black
  • screw terminals
  • The led can be substitute
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • To be combined with the cod. RG4373H outdoor for the signal
Usage
  • Useful for the hotel guest to indicate if it's necessary to make up the room or do not disturb pressing the correspondent symbols
Technical Characteristics
Assembly arrangement Basic element with central cover plate
Model 1-pole switch
Number of poles 1
Method of operation Other
Mechanical controllable Yes
Electronic controllable No
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Type of fastening Engage (snap)
Connection type Screwed terminal
Colour Black
RAL-number (similar) 9011
Transparent No
Label space/information surface No
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 1
Number of modules (module system) 1
Device width 22.2 mm
Device height 45.1 mm
Device depth 38.9 mm
Built-in depth 25.7 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
degree of impact strength (IK) Not applicable
Operating / setting temperature (Min-Max) -5-50 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Type of lighting Not applicable
Terminal marking indication No
Antimicrobial treatment No
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Documentation
1 documents
Technical Sheet
IDP000236_03-EN | PDF (1.3 MB) | EN
1 documents
Catalog Commercial Page
3210144 | PDF (9.4 MB) | EN
