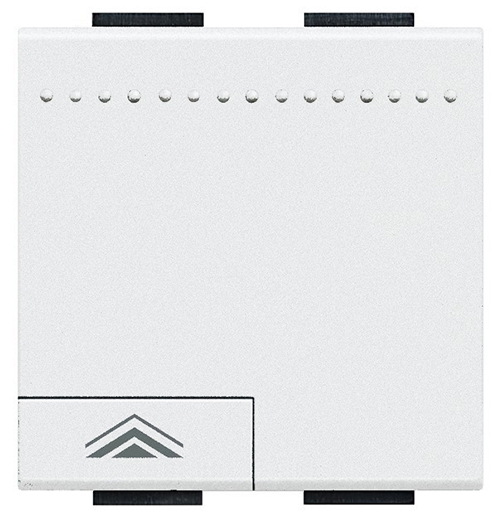

Resistive/capacitive touch dimmer 400-700W - 230Vac
BT-N4582N
|
8005543418857
Technical Characteristics
Assembly arrangement
Basic element with central cover plate
App control via Bluetooth
No
Serial dimmer
No
Type of load
Other
Substation input
No
Light value memory
No
Applicable with button
Yes
Applicable with movement sensor
Yes
Applicable with presence indicator
No
Applicable with time switch/timer
Yes
Applicable with transmission button
No
Applicable with infrared button
Yes
Mounting method
Module frame
Type of fastening
Mounting with claw
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Other
Surface finishing
Matt
Colour
White
Transparent
No
Suitable for degree of protection (IP)
IP21
degree of impact strength (IK)
IK04
Nominal voltage (Min-Max)
110-110 V
Frequency (Min-Max)
50-60 Hz
Nominal power resistive load (Min-Max)
50-700 W
Device width
44 mm
Device height
44 mm
Device depth
47 mm
Min. depth of built-in installation box
46 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Built-in depth
36 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-5-35 °C
Voltage type
AC
Stress test conformity (1000V)
No
Antimicrobial treatment
No
Terminals capacity (Min-Max)
2.5-2.5 mm²
