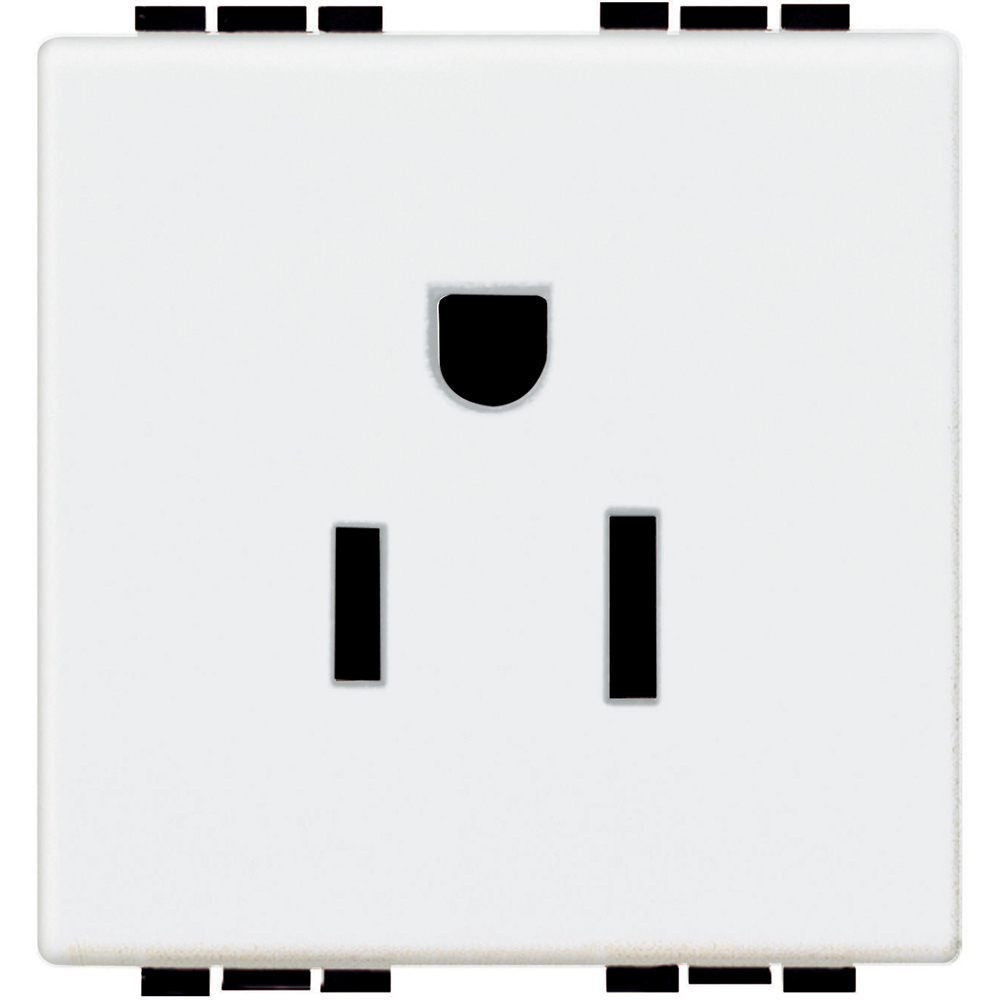

Socket 2P+T 15A 127/250 Vac - american standard
BT-N4128
|
8012199368467
Technical Characteristics
Model
US/CA (NEMA 5-15) (type B)
Concurrently switching neutral conductor
No
Protective contact
Other
Number of active contacts (round)
0
Number of active contacts (flat)
2
Number of active contacts (square)
0
Assembly arrangement
Basic element with central cover plate
With complemantary luminous signal
No
Number of ports USB-A
0
Number of ports USB-C
0
Number of socket outlets
1
Socket outlets phase-separated
No
Number of modules (module system)
2
Number of socket outlets switchable
0
Number of phases
1
Imprint/indication
Other
Connection type
Screwed terminal
With hinged lid
No
With enhanced contact protection
Yes
Label space/information surface
No
Colour
White
RAL-number (similar)
9003
Metallic colour
No
Transparent
No
Lockable
No
Eject-mechanism
No
Insulated mounting
No
With function lighting
No
With orientation lighting
No
Overvoltage protection
No
Fault current protection
No
With miniature fuse
No
Special power supply
None
Mounting method
Flush-mounted
Type of fastening
Snap mounting (engagement)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Antimicrobial treatment
No
With loop through function
Yes
With on/off switch
No
Rotated central insert
No
Nominal current
15 A
Nominal voltage
250 V
Frequency (Min-Max)
50-60 Hz
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK00
Device width
44 mm
Device height
44 mm
Device depth
32.5 mm
Min. depth of built-in installation box
31.5 mm
Compatible with Apple HomeKit
No
Compatible with Amazon Alexa
No
Compatible with Google Assistant
No
IFTTT support available
No
With Wi-Fi signal repeater
No
With built-in bluetooth speaker
No
For heavy conditions according to VDE
No
Built-in depth
21.5 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Power Delivery
No
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
2.5-2.5 mm²
Cable support
Other
Connected object
No
