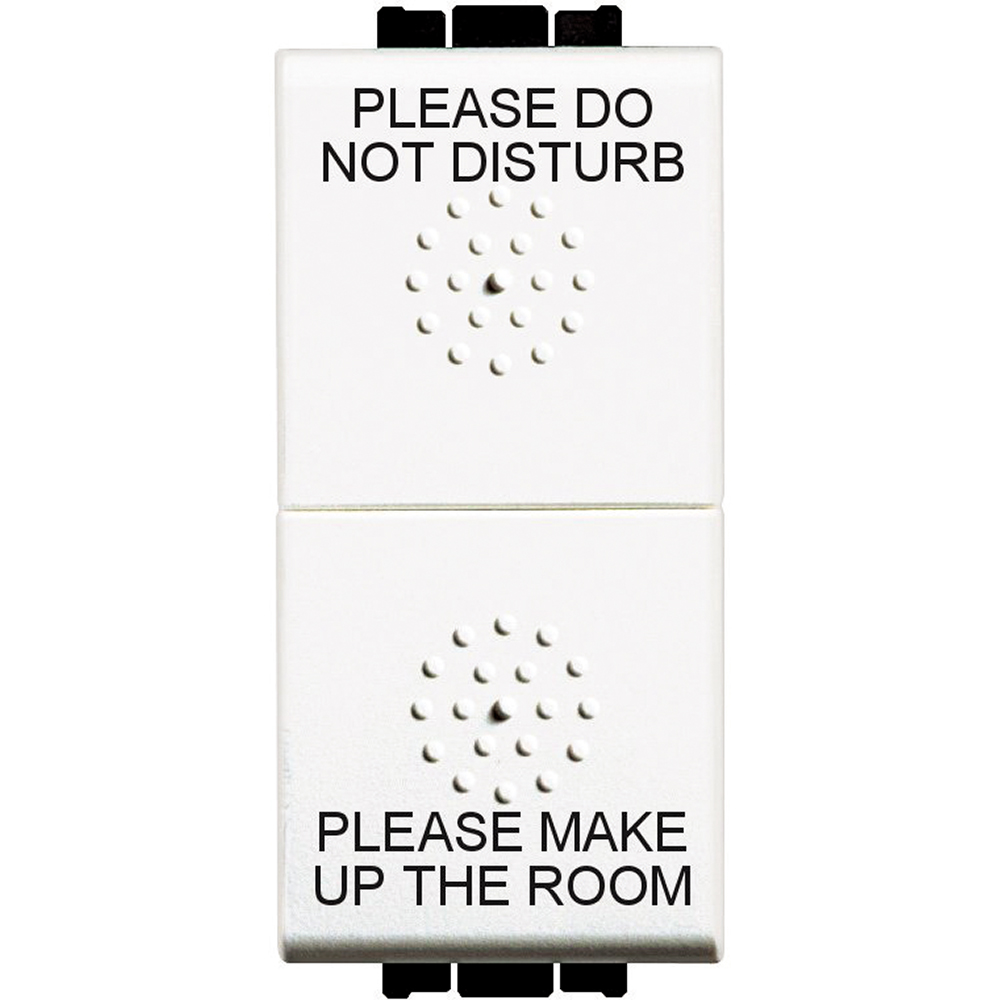

Changeover switch 1P 16A - 250Vac - “PLEASE DO NOT DISTURB” and “PLEASE MAKE UP THE ROOM”.
BT-N4028H
|
8012199725307
Technical Characteristics
Wiring system
Two-way switch
Method of operation
Rocker/button
Assembly arrangement
Modular device for domestic switching devices
Push button switch
No
Number of rockers
1
Mounting method
Flush-mounted
Type of fastening
Other
With mounting plate
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9016
Colour of switch operator
White
Label space/information surface
No
Lighting
No
Function lighting
Other
Type of lighting
Other
Suitable for degree of protection (IP)
IP20
Nominal voltage
250 V
Rated current
16 A
Switching current for fluorescent lamps
16 AX
Monitoring contact
No
Connection type
Screwed terminal
Heating switch
No
Washing machine switch
No
Device depth
31 mm
Min. depth of built-in installation box
30 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-5-35 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Cable section (Min-Max)
2.5-2.5 mm²
