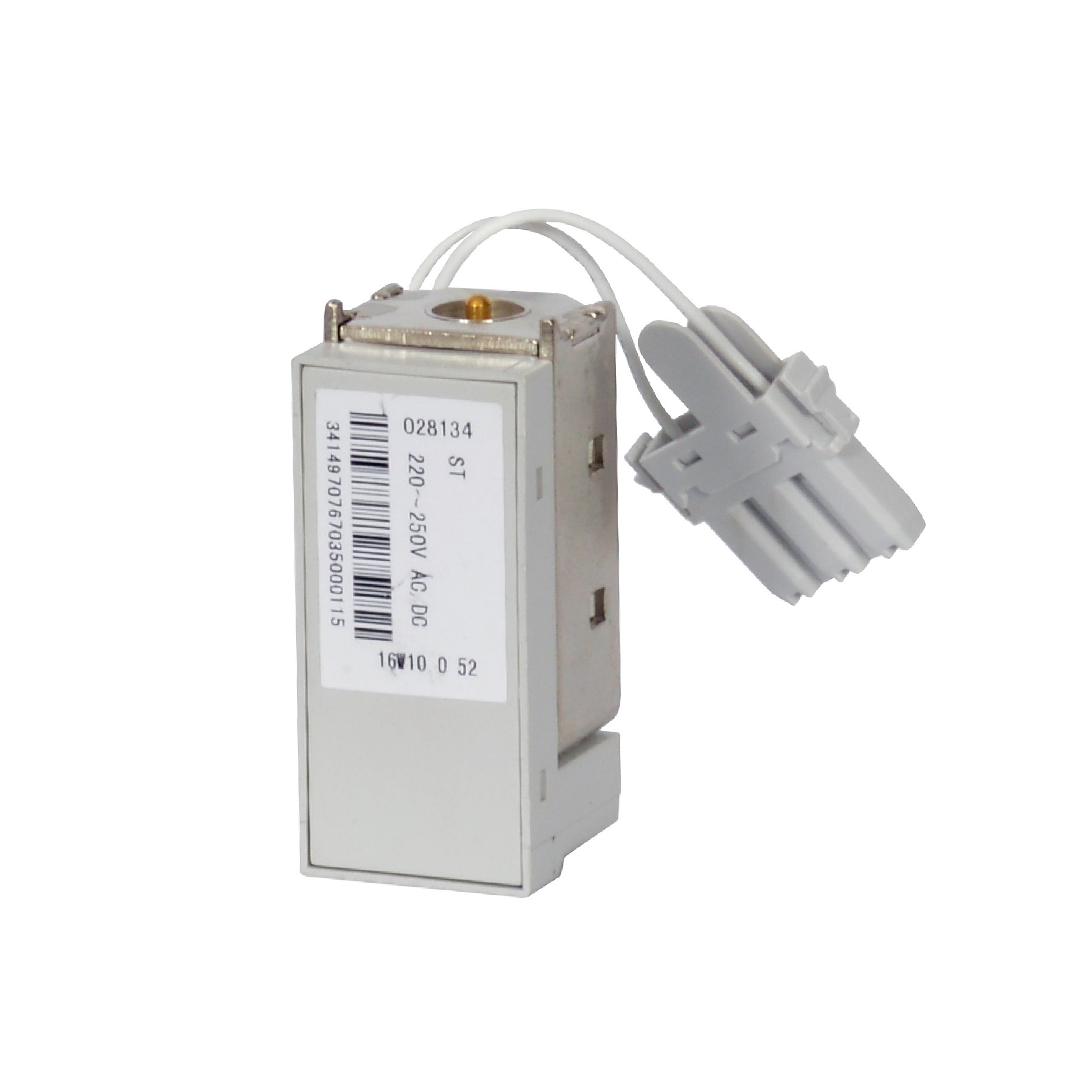

Shunt trip 220-250 Vac/dc
BT-M9T230C
|
8005543809648
Technical Characteristics
Rated control supply voltage AC 50 Hz (Min-Max)
198-275 V
Rated control supply voltage AC 60 Hz (Min-Max)
198-275 V
Rated control supply voltage DC (Min-Max)
198-275 V
Voltage type for actuating
AC/DC
Type of electric connection
Flat plug-in connection
Number of contacts as normally open contact
0
Number of contacts as normally closed contact
0
Number of contacts as change-over contact
1
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
Yes
Suitable for overload relay
Yes
Operating / setting temperature (Min-Max)
-25-70 °C
Storage temperature (Min-Max)
-25-70 °C
Frequency (Min-Max)
0-60 Hz
Terminal marking indication
Yes
Terminals capacity (Min-Max)
1-2.5 mm²
