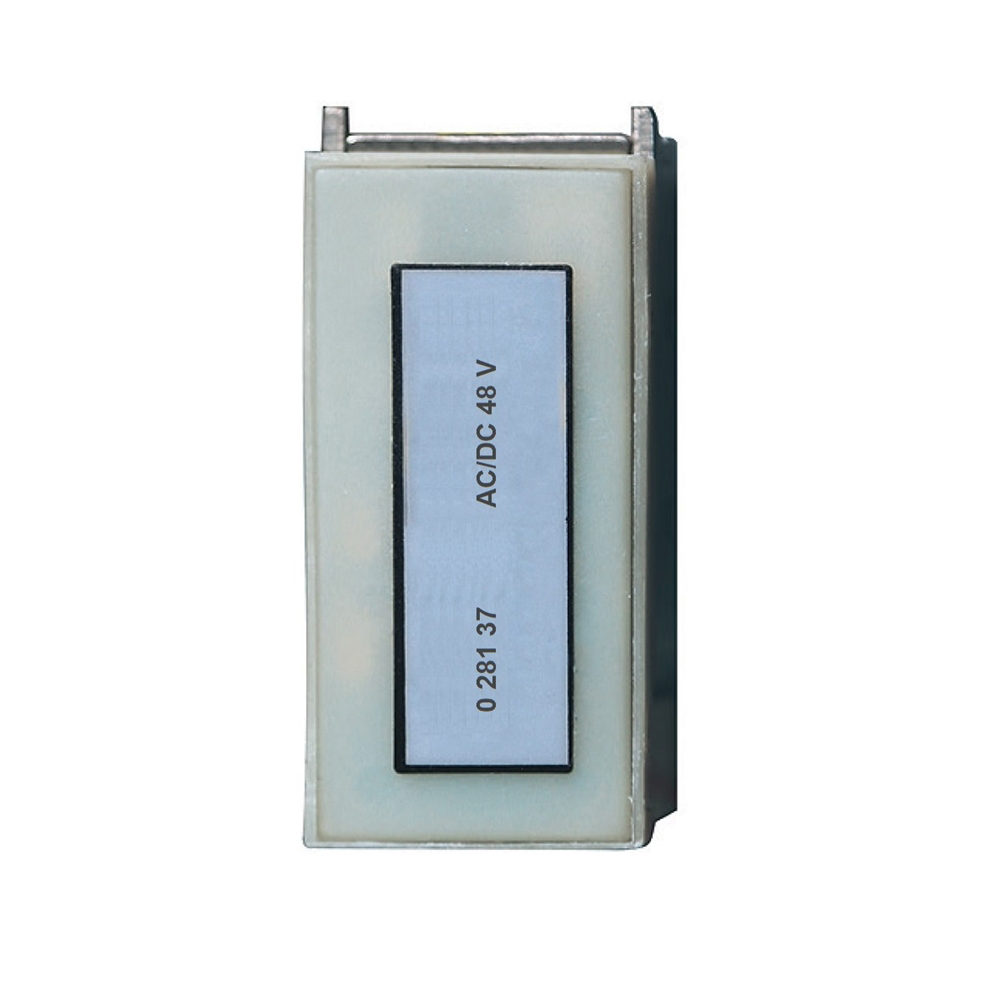

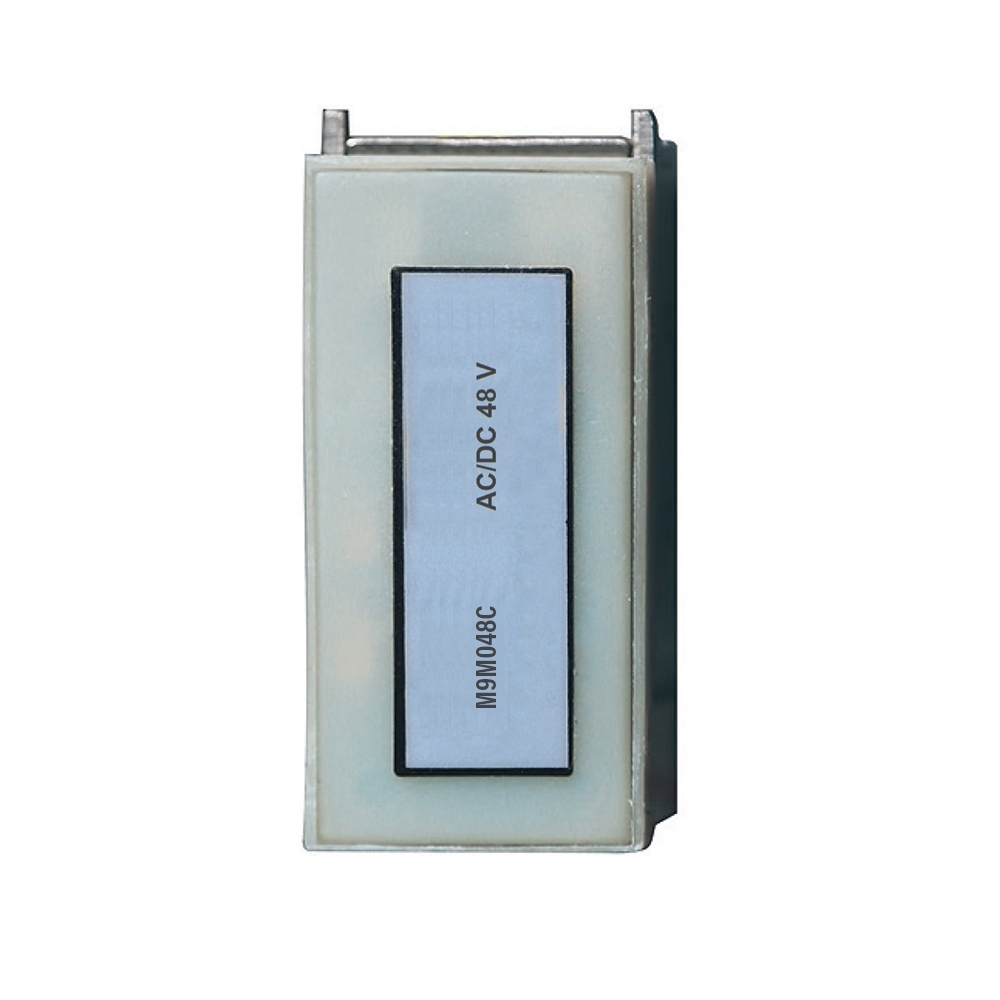

Undervoltage release 48 Vac/dc
BT-M9M048C
|
8005543823163
Technical Characteristics
Rated control supply voltage AC 50 Hz (Min-Max)
40.8-52.8 V
Rated control supply voltage AC 60 Hz (Min-Max)
40.8-52.8 V
Rated control supply voltage DC (Min-Max)
40.8-52.8 V
Voltage type for actuating
AC/DC
Type of electric connection
Flat plug-in connection
Delayed
No
Suitable for power circuit breaker
Yes
Suitable for off-load switch
Yes
Suitable for motor safety switch
Yes
Width
70 mm
Height
50 mm
Depth
50 mm
Degree of protection (IP)
IP30
Operating / setting temperature (Min-Max)
-5-70 °C
Storage temperature (Min-Max)
-40-85 °C
Halogen free
Yes
Prewired
No
Terminals capacity (Min-Max)
1-2.5 mm²
