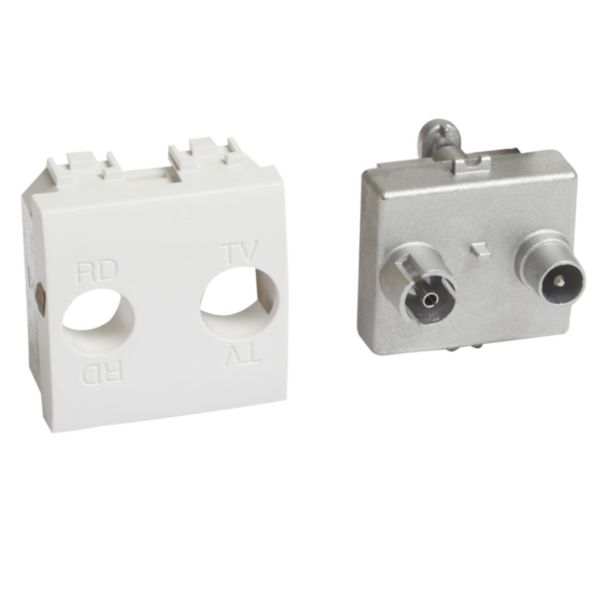

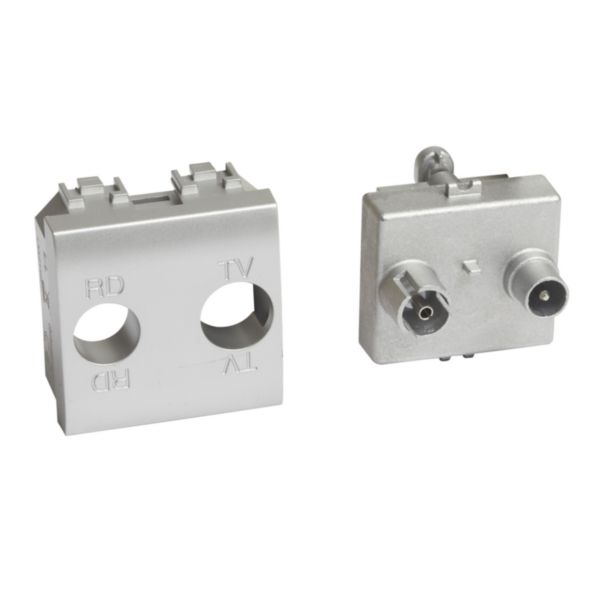

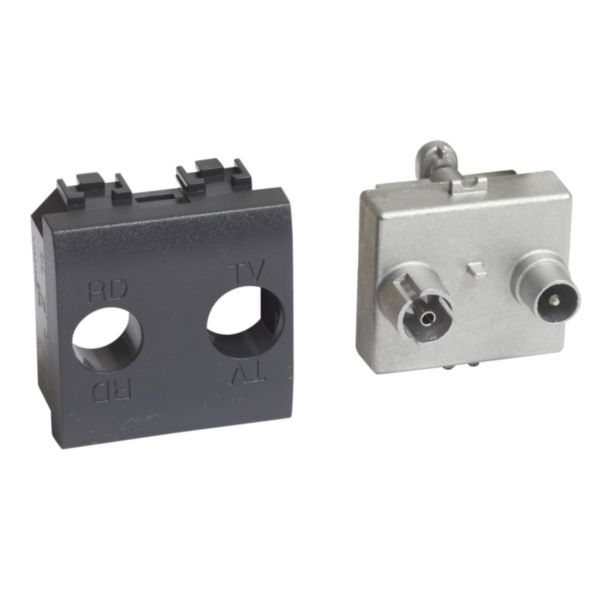

Double coaxial shunted socket for TV and FM-LMC reception - diameter 9.5mm - Belgium (Telenet operator)
BT-LN4211M2C
|
8005543584460
Technical Characteristics
Model
End socket
Mounting method
Module frame
Number of modules (module system)
2
Assembly arrangement
Basic element with central cover plate
Tap loss at 860 MHz
10 dB
Number of outlets
2
Suitable for cable modem
No
Suitable for remote power supply
No
Type of fastening
Snap mounting (engagement)
Halogen free
Yes
Antimicrobial treatment
No
Degree of protection (IP)
IP20
Device width
44 mm
Device height
44 mm
Device depth
31 mm
Min. depth of built-in installation box
30 mm
Built-in depth
20 mm
Operating / setting temperature (Min-Max)
-5-50 °C
Storage temperature (Min-Max)
-10-70 °C
Documentation
1 documents
Instruction Use
LE08832AA | PDF (161 KB)
2 documents
Catalog Commercial Page
CAT-LL-2M | PDF (39.5 MB) | EN
Catalog Commercial Page
CAT-LL-3M | PDF (38.7 MB) | EN
