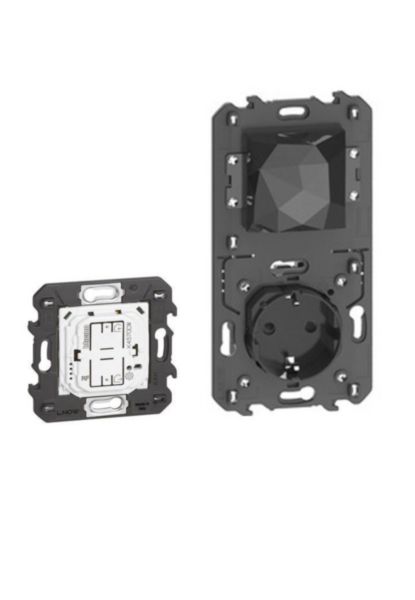

Name: Gateway - This pack enables to create a connected installation in the home (with German std socket)
Brand: BTicino
SKU: BT-KG4501C
Availability: InStock

Description

Starter pack for a connected installation allows you to control your lighting, roller shutters & electrical appliances remotely via the Home + Control app or by using your voice and to track your appliances consumption from your smartphone

Product characteristics

Gateway power outlet: Measures instantaneous and total electricity consumption. Protects against overloads, breaking at 16 A maximum. Compatible with any electrical appliance or large household appliance. LED indicator with locator function which can be activated in the app. Wi-Fi 2.4 GHz 802.11 b/g/n
Home/Away wireless master switch: Predefined Home/Away scenarios which can be customised from the Home + Control app. Supplied with a replaceable battery with an 8-year life. LED indicator with low battery warning
Connected power outlet (Schuko standard): LED indicator with locator function which can be activated in the app. Compatible with any electrical appliance or large household appliance. Measures instantaneous and total electricity consumption. Protects against overloads (16 A maximum)
The wireless remote master switch home/away is provided with a 8 years lifetime battery. This battery can be replaced easily. A low battery in-app alert is available.
Black

Recommendations / Restrictions

A Wi-Fi connection via your router is required.

Products benefits

Installation

The Living Now with Netatmo gateway power outlet is easily installed in place of an existing standard power outlet and needs a standard-depthflush-mounting box (40 mm). Claw or screw fixing possible.

Usage

Voice control of your lights and electrical appliances via a voice assistant

Advantages

The installation of a Living Now with Netatmo is identical as a traditionnal product. It does not need any additional wire and is placed in a standard one gang box of 40mm depth with or without claws.
Simply control your house with the Living Now with Netatmo products by voice control ( via Apple Siri and Google Home). Simply saying "I am leaving" or "Good night" to your smartphone, you can swith off both selected lights, appliances and close all shutters.
When installed on the wall, the wireless remote master switch has the same aesthetic and thickness as all the Living Now with Netatmo switches.

Technical Characteristics

Bus system KNX No

Bus system KNX-RF (Radio Frequency) No

Bus system radio frequency Yes

Bus system LON No

Bus system Powernet No

Other bus systems Zigbee

Radio frequency bidirectional Yes

Model Multiple interface

Mounting method Flush-mounted

Max. number of devices per channel 100

Demounting protection Yes

With LED indication No

Updateable Yes

Operating voltage (Min-Max) 230-250 V

Voltage type AC

Protocol TCP/IP

Provider dependent No

Visualization Yes

Web-Server No

Radio interface Yes

IR interface No

Degree of protection (IP) IP40

degree of impact strength (IK) IK04

Operating / setting temperature (Min-Max) 5-45 °C

Storage temperature (Min-Max) 0-45 °C

Terminal marking indication Yes

Type of load Not applicable

Halogen free Yes

Connection type Screwed terminal

Terminals capacity (Min-Max) 0.75-2.5 mm²

Connection type Cable

Label space/information surface No

Fitted with USB plug No

Contains Batteries and/or Accumulator Yes

Addressable No

IEC code (Pack1) CR2032

Battery ou Accumulator (Pack1) Battery (not rechargeable)

Element Composition (Pack1) Lithium (battery or accumulator)

Number of Pack 1 1

Number of Single Element (Pack1) 1

Single Element weight (Pack1) 3.3 g

Pack1 Location Product includes a battery

Regulation Type (Pack1) P : Portable (Standard format)

Connected object Yes

Operating method Wifi network 2.4G, Zigbee

Application store for download App Store, Google Play Store

Programming way Smartphone apps

With voice command Yes

Programmable Yes

Interoperable connection Protocol Yes

Connectable by Internet box Yes

Compatible voice assistants Google Assistant, Amazon Alexa, Apple Siri

Application name Home + Control

Product use function Connected devices interface

Standby consumption 0.1

Gateway - This pack enables to create a connected installation in the home (with German std socket)
