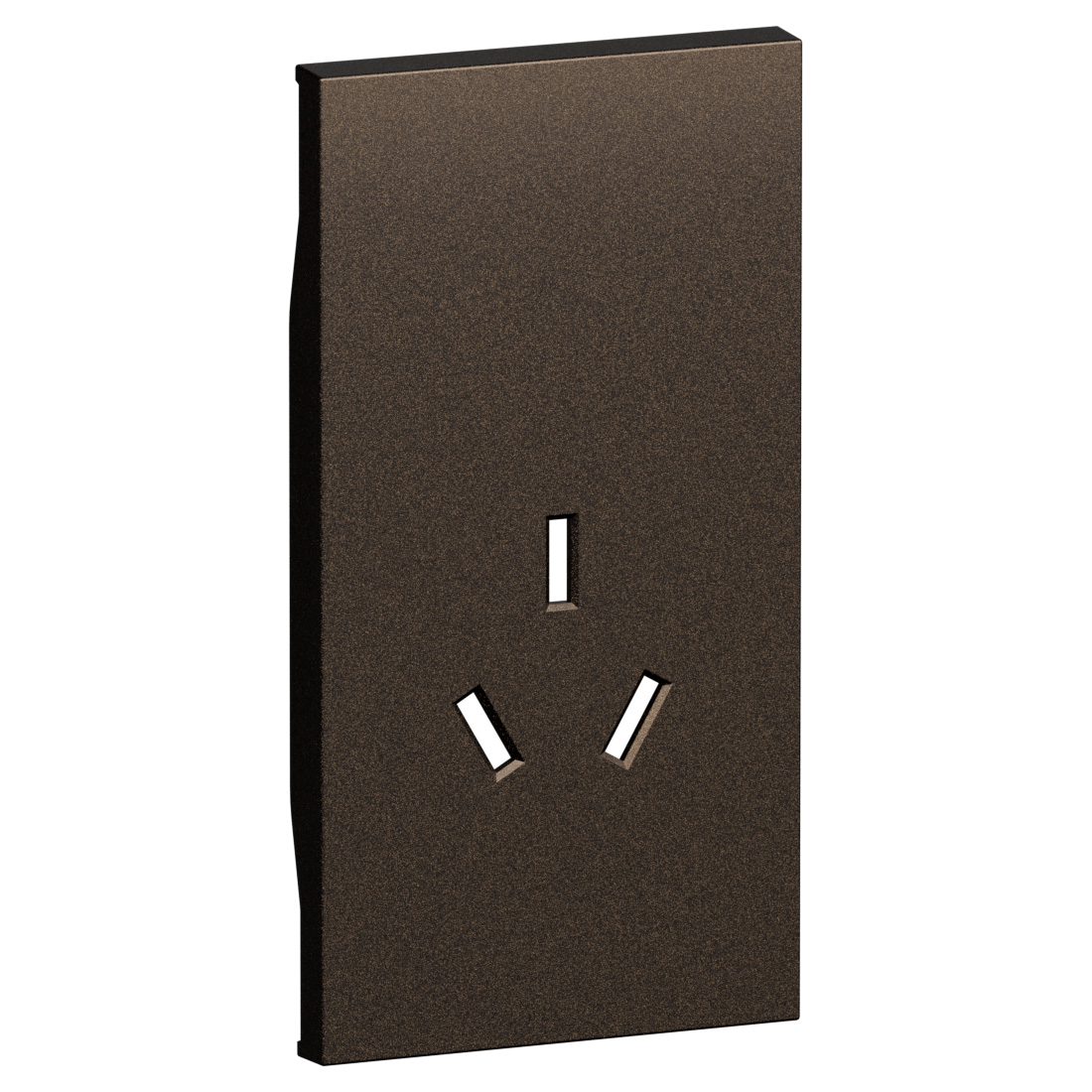

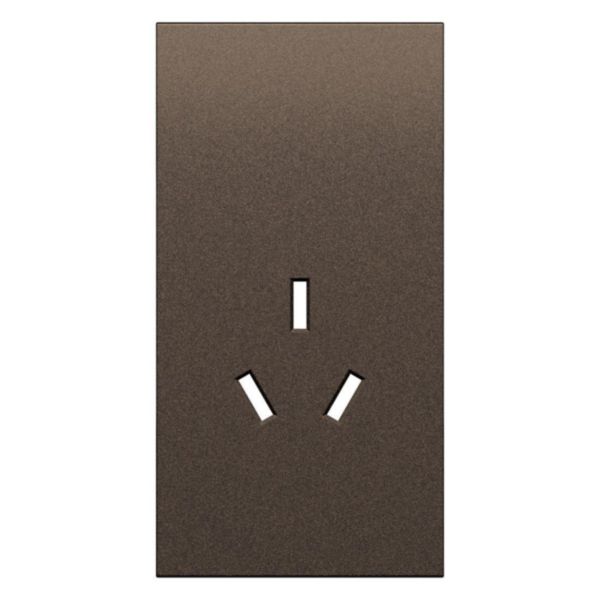

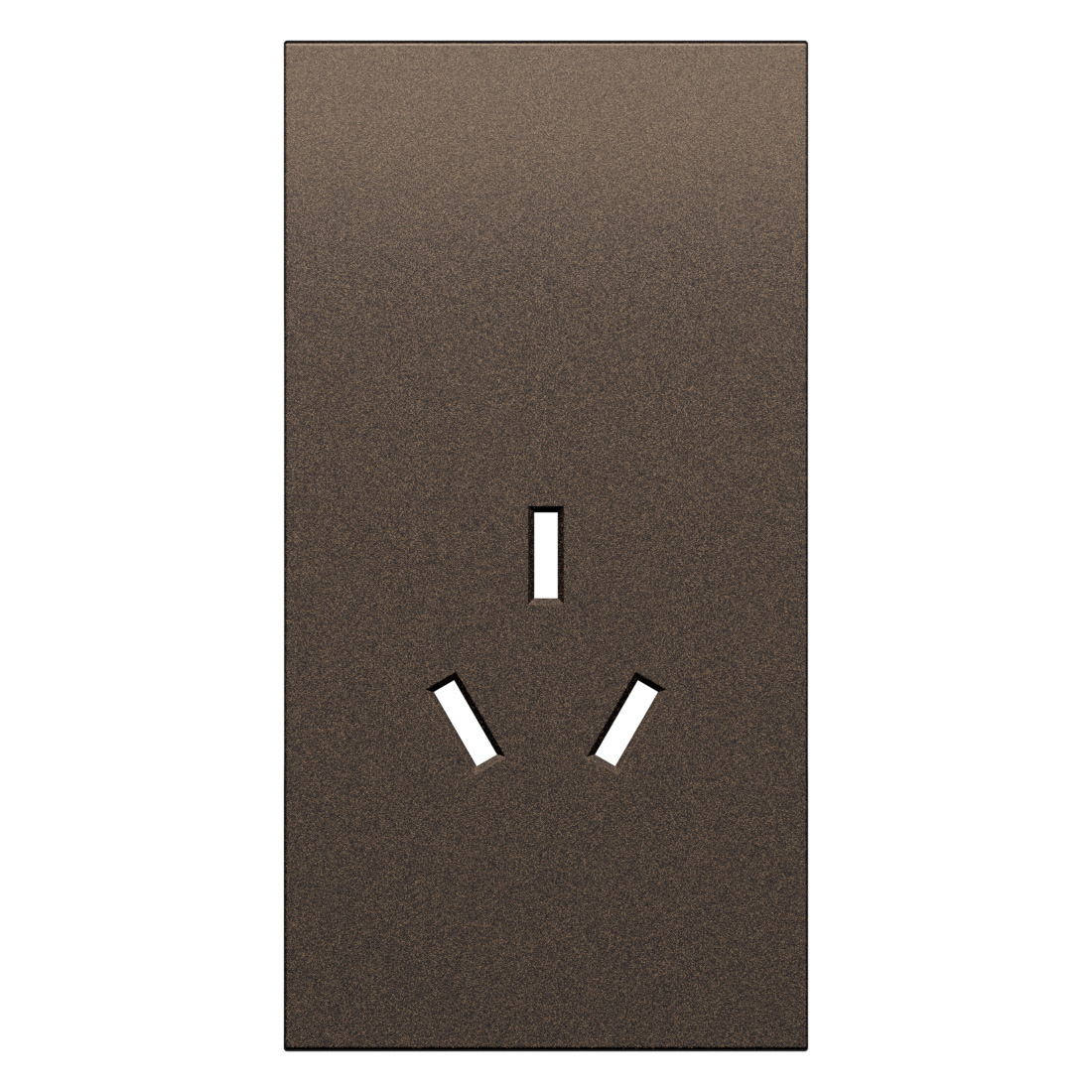

Cover for chinese standard sockets Item K4189N
BT-KB89S
Description
Fixed cover for the aesthetic completion of Chinese socket 3 Pin, 2 modules, bronze.
Product characteristics
- Bronze technopolymer cover with satin finish and metal feel.
- Aesthetic completion of the K4189 socket
- 2 modules, technopolymer, satin Bronze
- Delivered with dedicated packaging to maintain the aesthetic characteristics unaltered
Recommendations / Restrictions
- It is mounted on the cover plate at the end of the construction site to maintain the work in a workmanlike manner.For internal use.
Products benefits
Installation
- Installation in a workmanlike manner, without scratches or dirt on the building site, thanks to the separation of installation times between the technical part and the aesthetic part. Installation perfectly aligned with the plate thanks to the self centering system
Advantages
- It is coordinated with the L.NOW aesthetic
- You can replace the device cover at any time by changing its color or restoring any damage to the surface without changing the entire device
Technical Characteristics
Model
Central cover plate
Imprint/indication
None
Scannable symbol/barrier free
No
Utilization
Socket outlet
Suitable for touch sensor connector for bus system
No
Type of fastening
Engage (snap)
Monitoring window/light outlet
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Lacquered
Surface finishing
Matt
Antimicrobial treatment
No
Colour
Bronze
RAL-number (similar)
8017
With label area
No
With exchangeable lens/symbol
No
Suitable for degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Width
45 mm
Height
86 mm
Depth
7.5 mm
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
