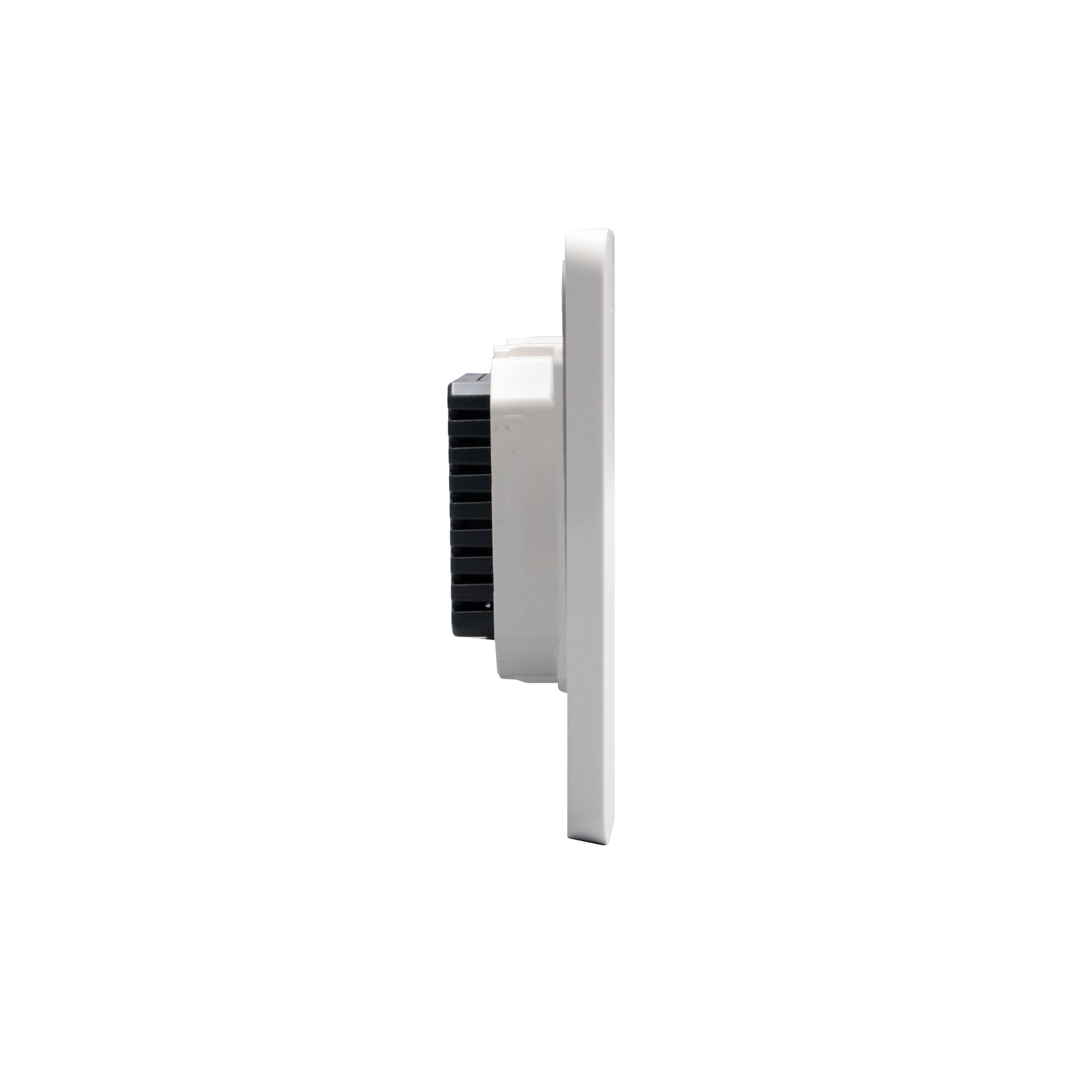

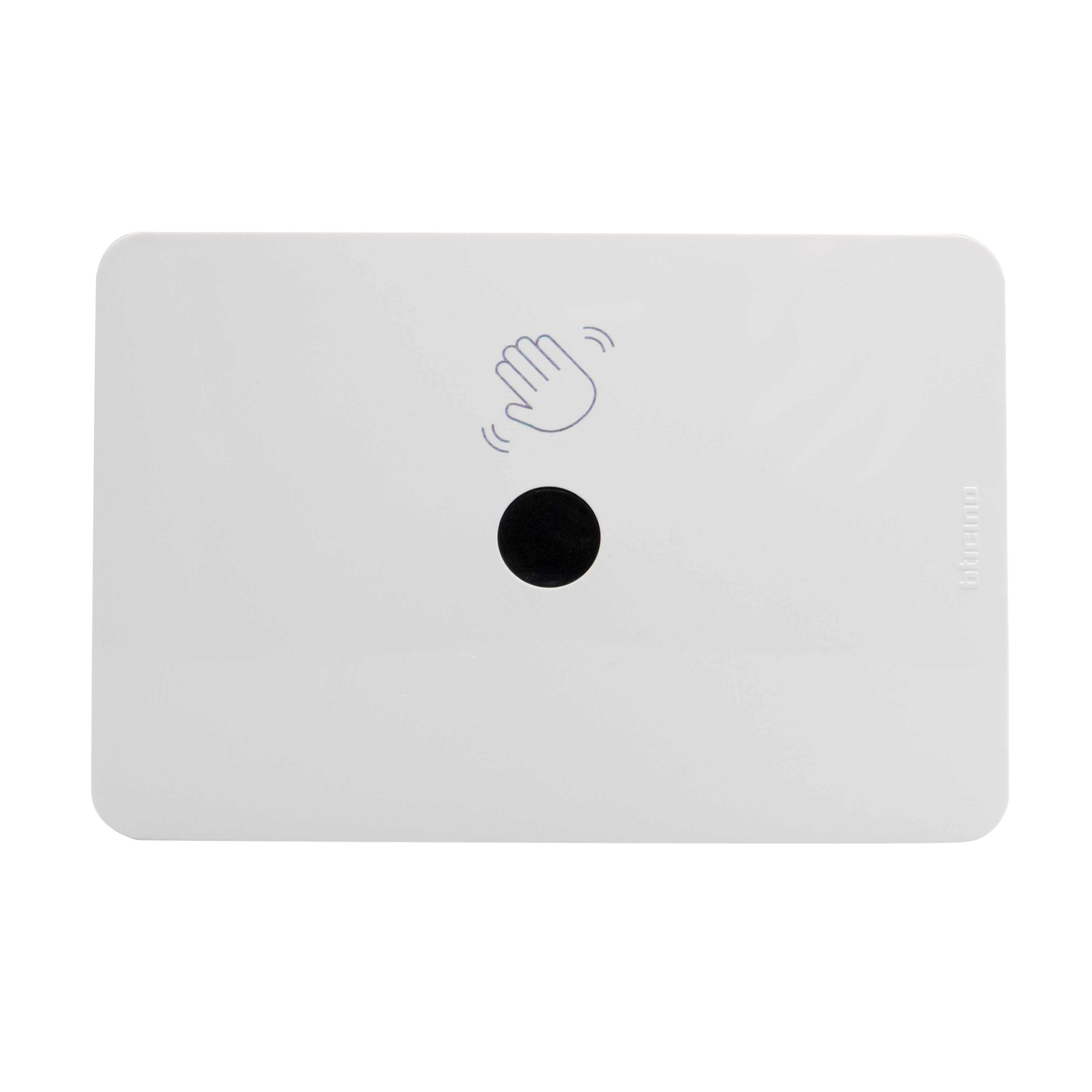

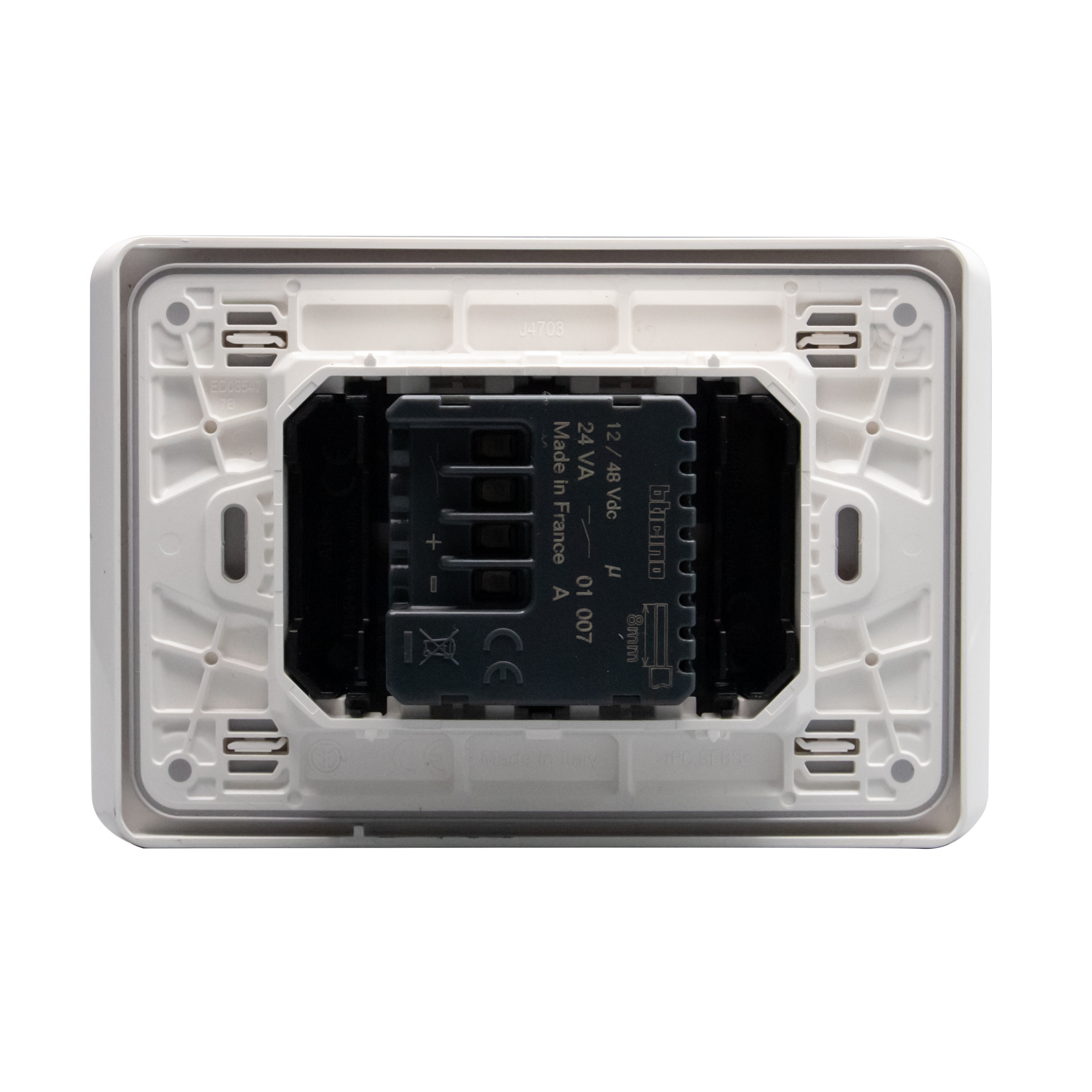

Touchless switch for doors, electric and electromagnetic door locks
BT-JW4105TLAB
|
8005543723289
Description
Touchless switch monobloc for doors, electric and electromagnetic door locks allows to control door opening by simply passing the hand in front of the switch. 3 modules, antibacterial
Product characteristics
- Door pushbutton touchless monobloc
- 24VA - 12-24-48VDC
- 3 modules
- Color Antibacterial
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- Allows it to be operated without being touched. the touchless function is ideal in environments that need to be continuously sanitized
Advantages
- It does not need to be touched to be operated
Technical Characteristics
Model
Other
Movement sensor/presence detector technology
Other
Constant light control
No
HVAC-control
No
Forced switch on
No
Forced switch off
No
Animal zone
No
Creep-under protection
No
Background monitoring
No
Networkable
Yes
Scan angle
120 °
Staircase light controller
No
Bridging switch
Yes
Suitable for wireless transmission
No
Remote operation
No
Supplied remote control
No
Response value sensitivity adjustable
Yes
Response value luminosity adjustable
No
With signal unit
No
Teach-function for response value luminosity
No
Dim function with dimmer basic element
No
Mounting method
Flush-mounted
Suitable for ceiling mounting
No
Suitable for wall mounting
No
Connection type
Screwed terminal
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Glossy
Antimicrobial treatment
Yes
Colour
White
RAL-number (similar)
9003
Transparent
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK04
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Nominal voltage (Min-Max)
230-230 V
Max. switching power LED
0.5 W
Suitable for C-load
No
Number of switching zones
0
Max. starting current
2 A
Min. starting current
0.5 A
Substation input
No
With alarm function
No
With acoustic sensor
No
Ambient temperature (Min-Max)
5-40 °C
Width
67.5 mm
Height
45 mm
Depth
12 mm
Built-in width
67.5 mm
Built-in depth
0 mm
Built-in length
67.5 mm
Min. depth of built-in installation box
10 mm
With connection cable
No
Connection cable length
0 mm
Compatible with Apple HomeKit
No
Compatible with Google Assistant
No
Compatible with Amazon Alexa
No
IFTTT support available
No
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Mandatory neutral
Yes
Terminal marking indication
No
Terminals capacity (Min-Max)
1-1.5 mm²
Cable nature for connection
Flexible or rigid
Label space/information surface
No
Entry membrane gland type
Flexible to cut
Horizontal fixing center distance (Min-Max)
3.5-3.7 mm
Auto switch
No
With DALI interface
No
Documentation
1 documents
Catalog Commercial Page
CAT_MTXGO | PDF (24.9 MB) | EN
