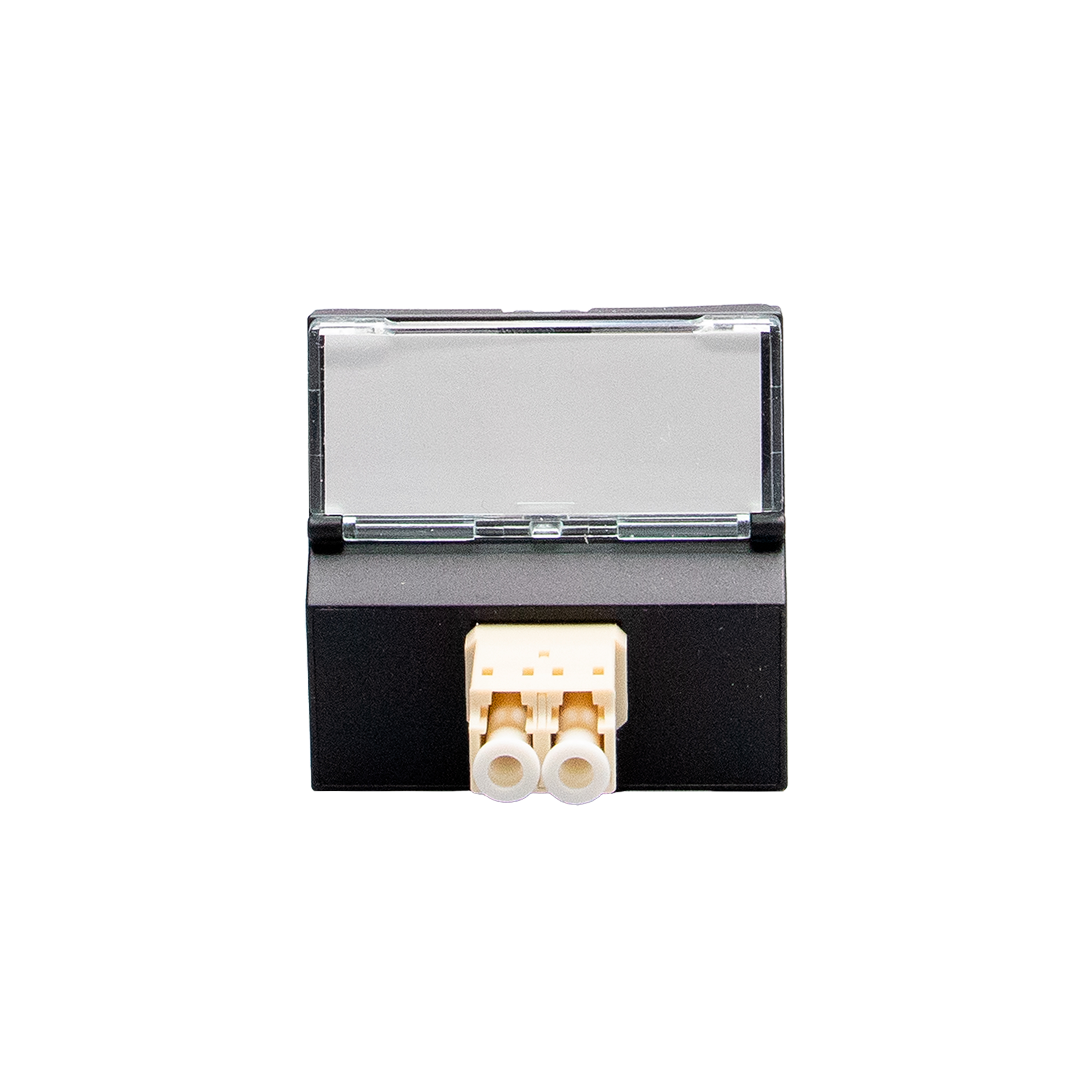

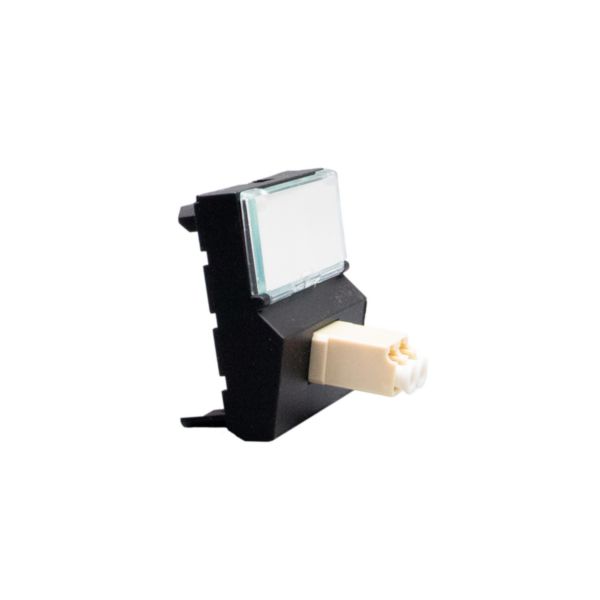

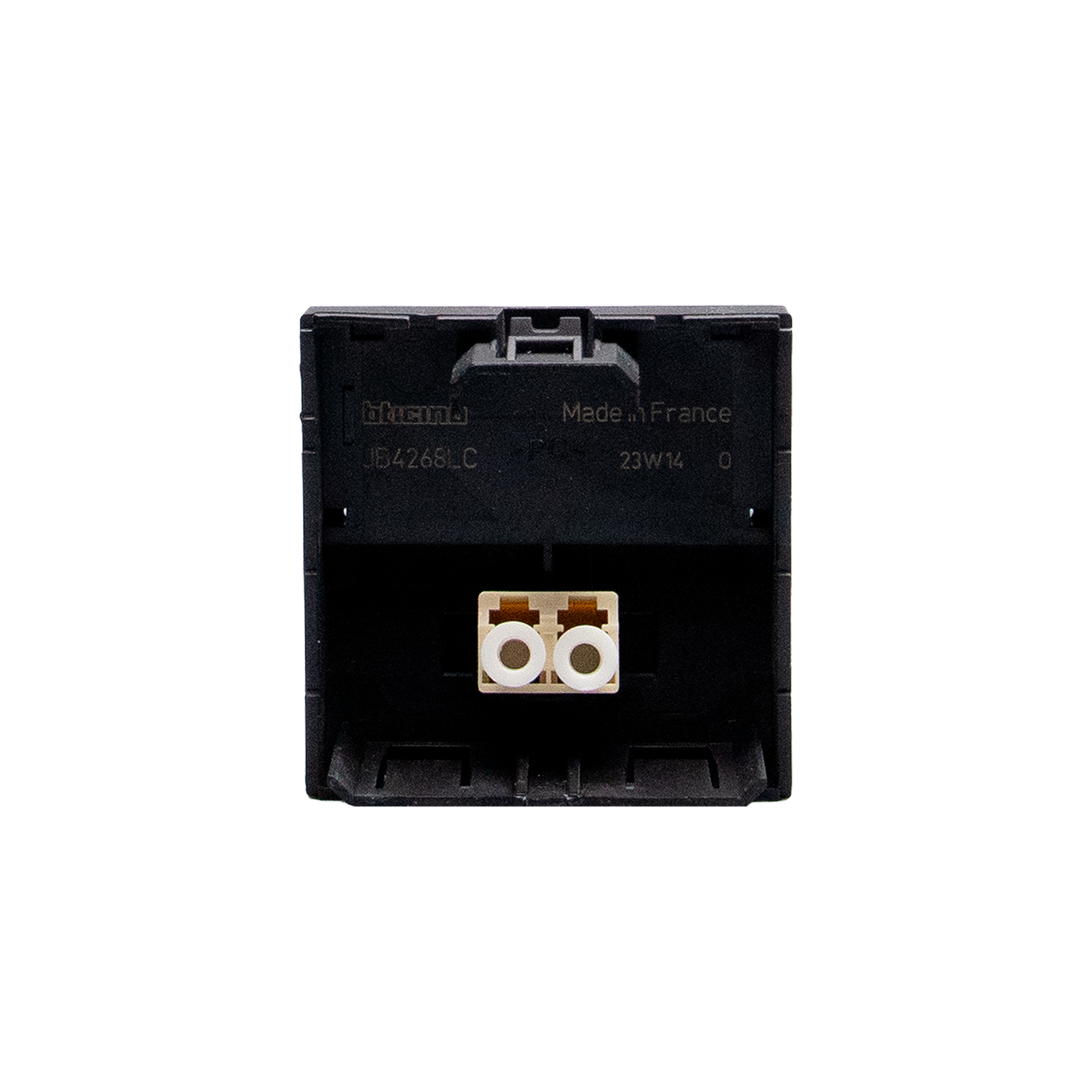

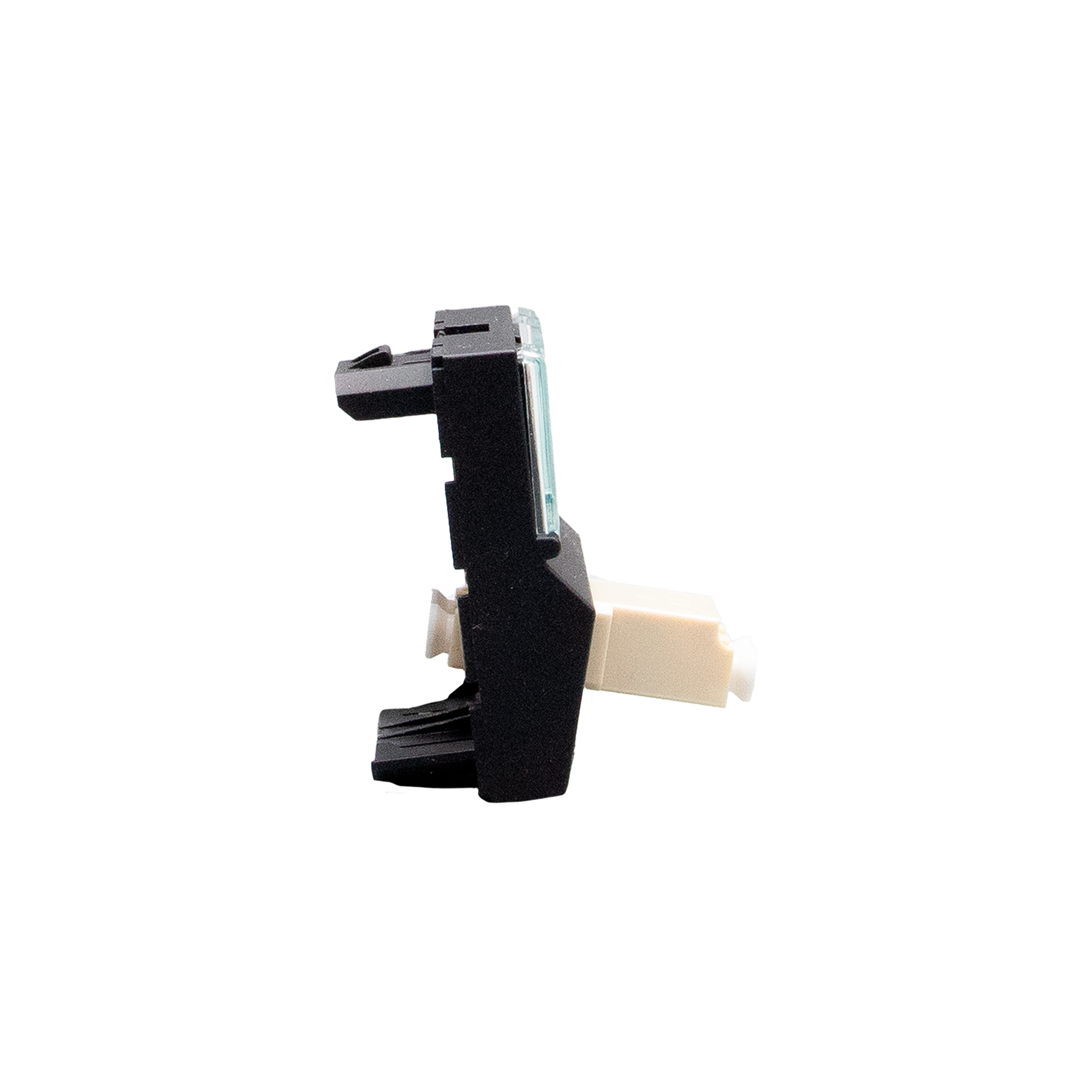

Coupling connector for fiber optic cable - LC termination
BT-JB4268LC
|
8005543714331
Description
MatixGO coupling connector for optical fiber - LC cable socket - duplex - 2 modules, black
Product characteristics
- Coupling connector for optical fiber- LC cable socket - duplex
- Connector optic
- 2 modules
- Color Black
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- Allows rapid connection and disconnection of fiber.
Advantages
- It is coordinated with the MatixGO aesthetic
Technical Characteristics
Surface mounting
No
Flush-mounted installation
Yes
Duct installation
No
Floor box/subfloor mounted
No
Type of fastening
Engage (snap)
Type of connector
LC
Colour
White
RAL-number
9005
Centre plate
No
With cover frame
No
With label space
Yes
With strain relief
No
Wire stock
No
Outlet direction
Straight
Dust protection cap
Shutter
Device width
45.05 mm
Device depth
30.9 mm
Device height
45.05 mm
degree of impact strength (IK)
IK04
Degree of protection (IP)
IP21
Operating / setting temperature (Min-Max)
-40-85 °C
Storage temperature (Min-Max)
-40-85 °C
Antimicrobial treatment
No
Label space/information surface
Yes
Documentation
1 documents
Catalog Commercial Page
CAT_MTXGO | PDF (24.9 MB) | EN
