MatixGO BTicino

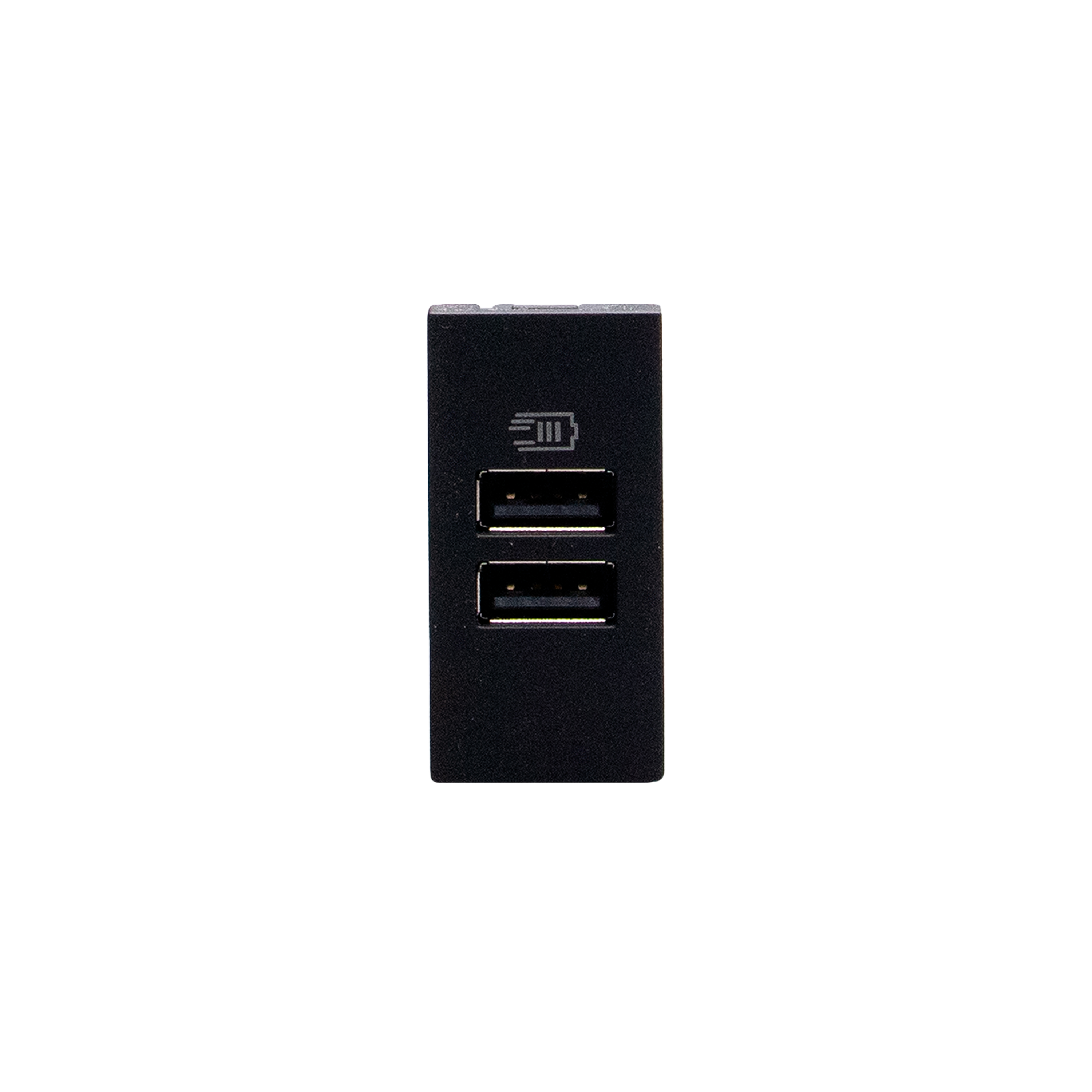

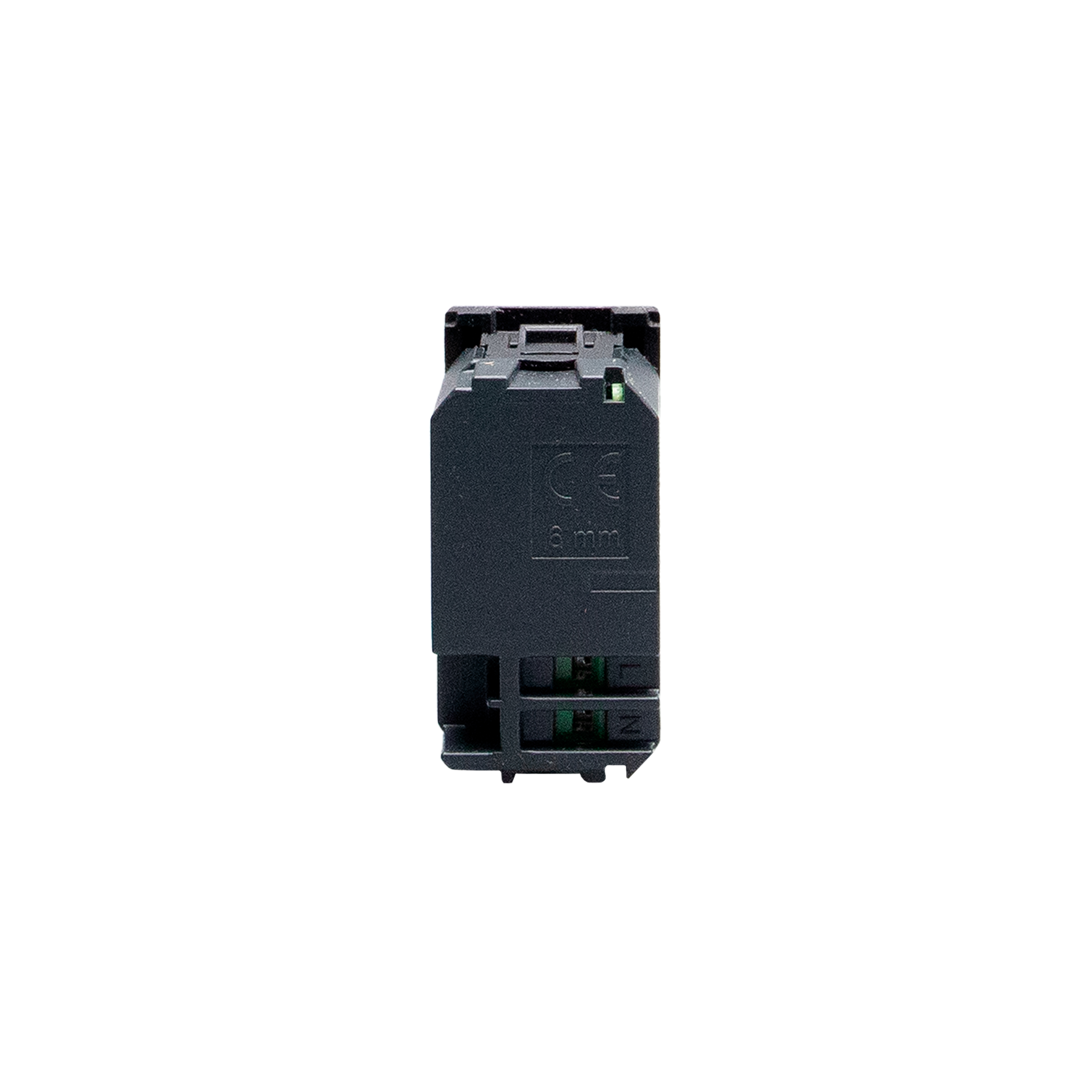

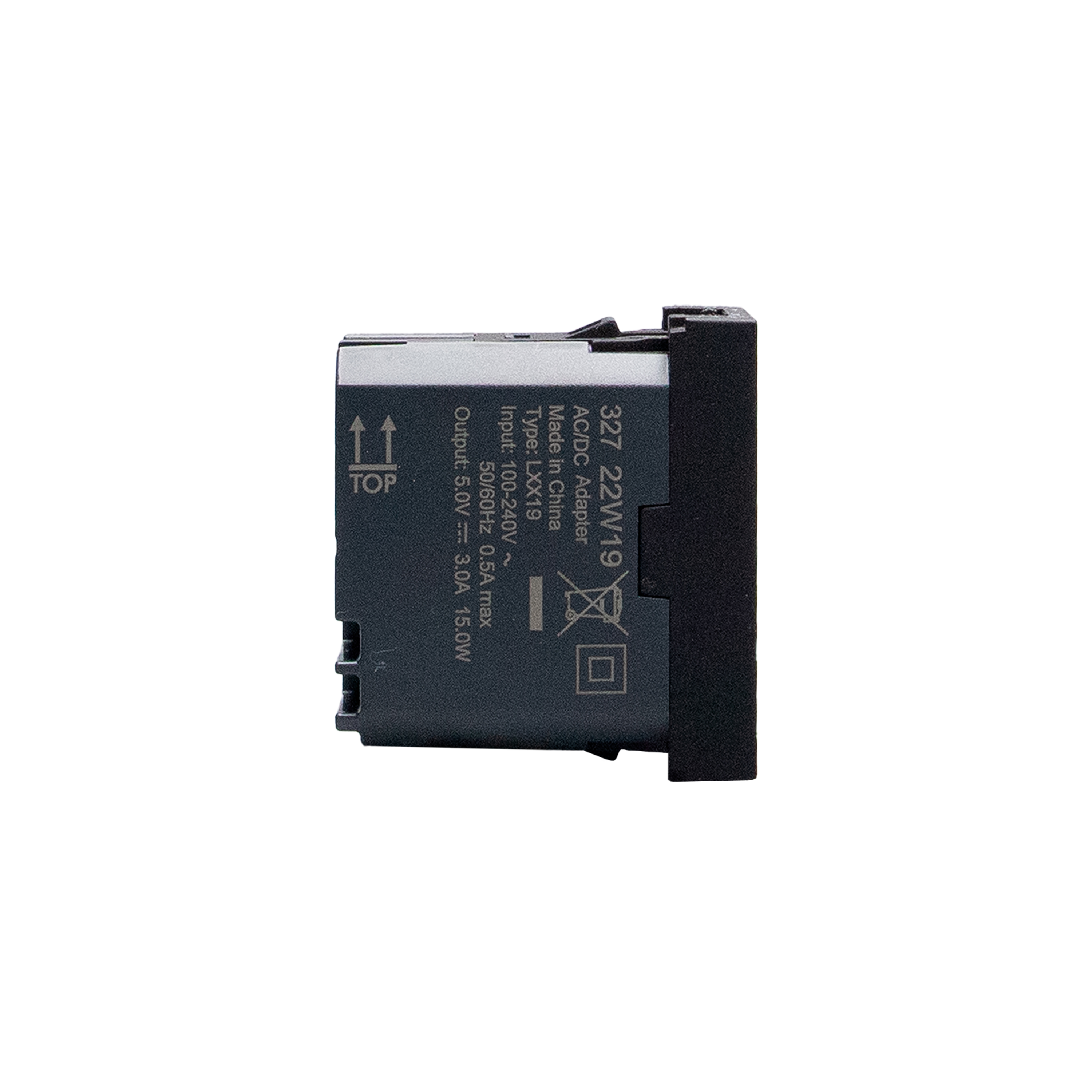

Double USB charger - 2 x Type-A - 5 V= - 3 A - 15 W

BT-JB4191AA | 8005543714980
Double USB sockets - 2 x Type-A - 5 V= - 3 A - 15 W For fast charging of smartphones, tablets, powerbanks. For charging up to two portable devices. Consumption in passive mode < 0.05 W - compact format for space gain - 1 module - Black
Description

Double USB charger A+A: suitable for up to two smartphones charging

Product characteristics
  • 15W 2x Type-A USB outlets
  • USB 1 module format: ideal for space gain and power efficiency
  • Screw terminals 2,5mm²
  • Color Black
  • Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
  • Indoor use only.
Products benefits
Installation
  • Further improvement of the installation and removal in support.
Usage
  • Ideal charger for one or two smartphones
Advantages
  • Standby consumption <0,07W
  • Compatible with multi-gang wiring accessories
Technical Characteristics
Model Other
Number of ports USB-A 2
Number of ports USB-C 0
Operating voltage (Min-Max) 100-240 V
Frequency (Min-Max) 50-60 Hz
Max. output current 3000 mA
Output voltage (Min-Max) 5-5 V
Power consumption 0.083 W
Connection type Screwed terminal
Mounting method Flush-mounted
Colour Black
RAL-number 9011
Device width 22.5 mm
Device height 45 mm
Device depth 41 mm
Min. depth of built-in installation box 43 mm
Suitable for degree of protection (IP) IP40
degree of impact strength (IK) IK04
Antimicrobial treatment No
Wireless No
Built-in depth 33 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Power Delivery No
USB Output Power 15
Supply current (Min-Max) 0.5-0.5 A
Mandatory neutral Yes
Terminal marking indication Yes
Stress test conformity (1000V) No
Halogen free Yes
Number of terminals 2
Terminals capacity (Min-Max) 1.5-2.5 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1.5-2.5 mm²
Number of modules (module system) 2
