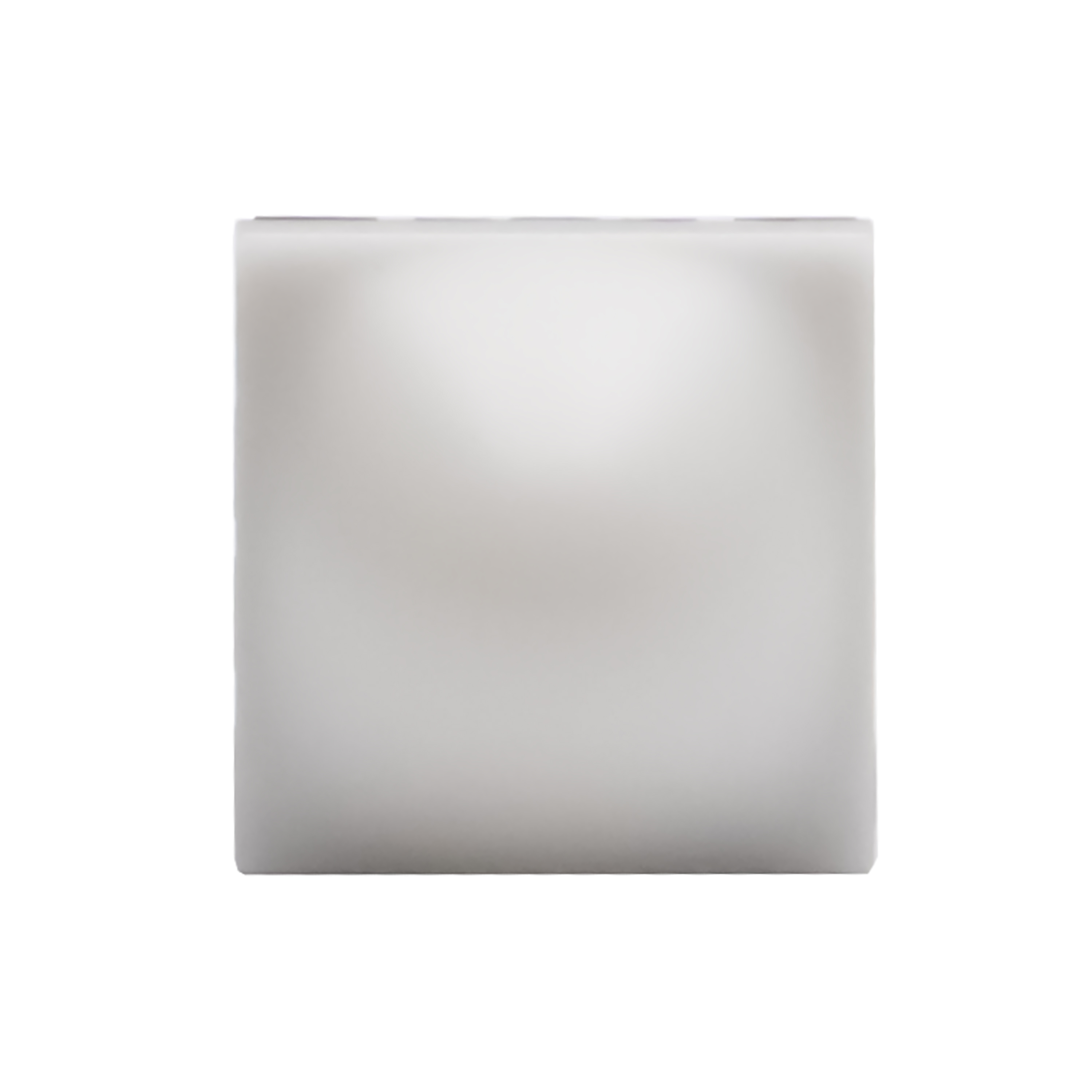

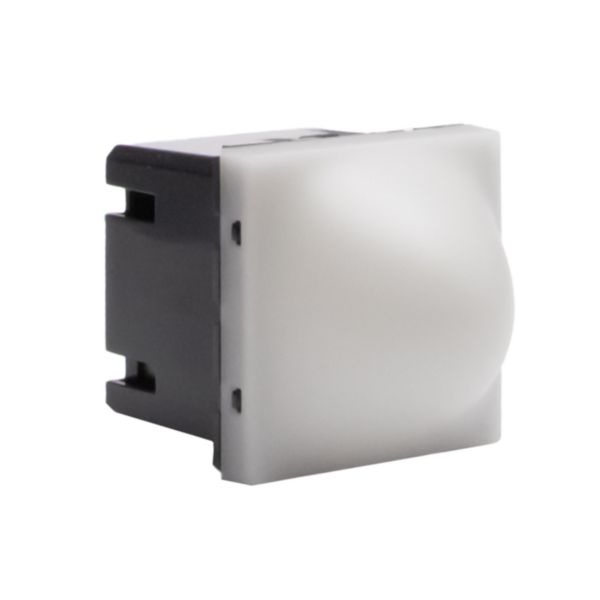

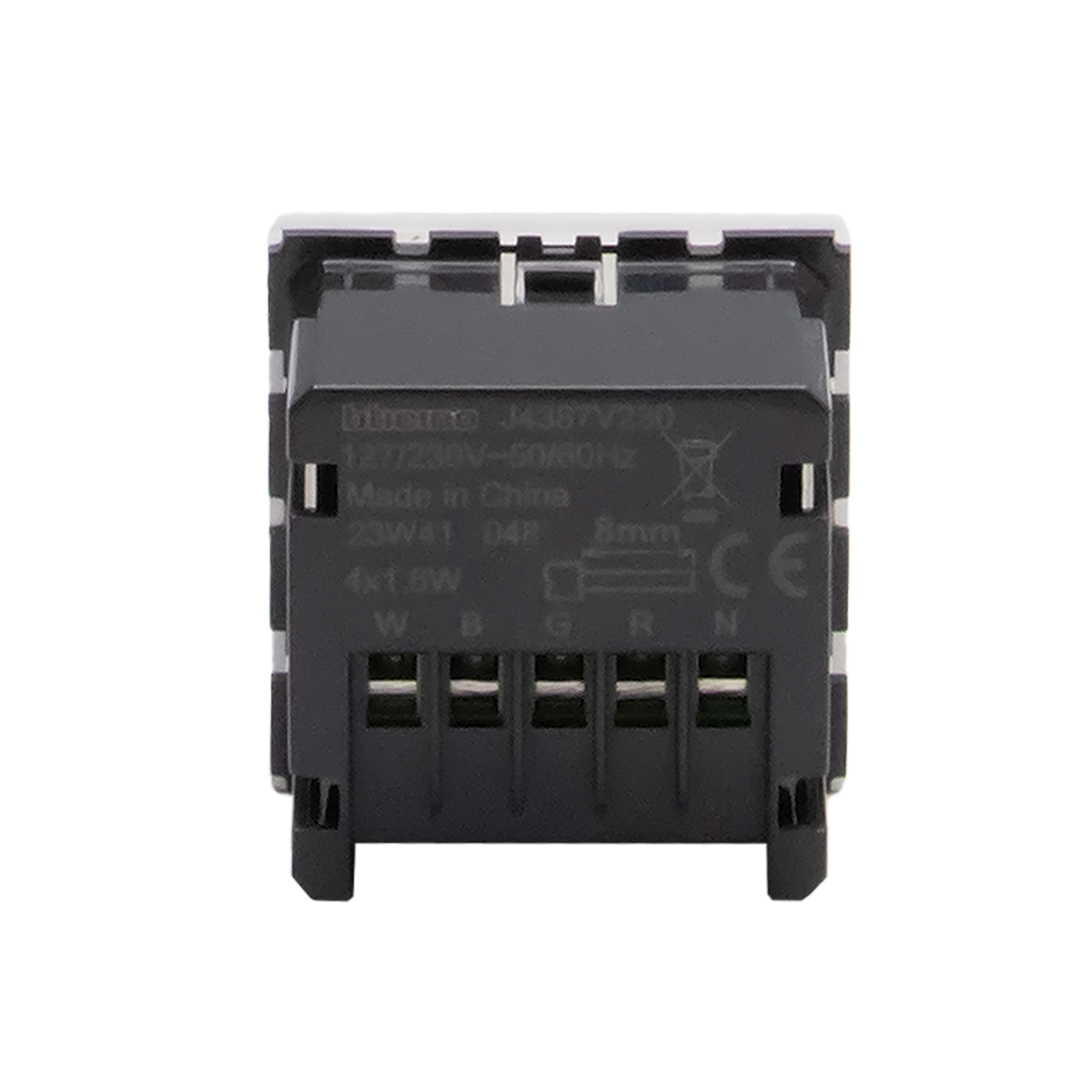

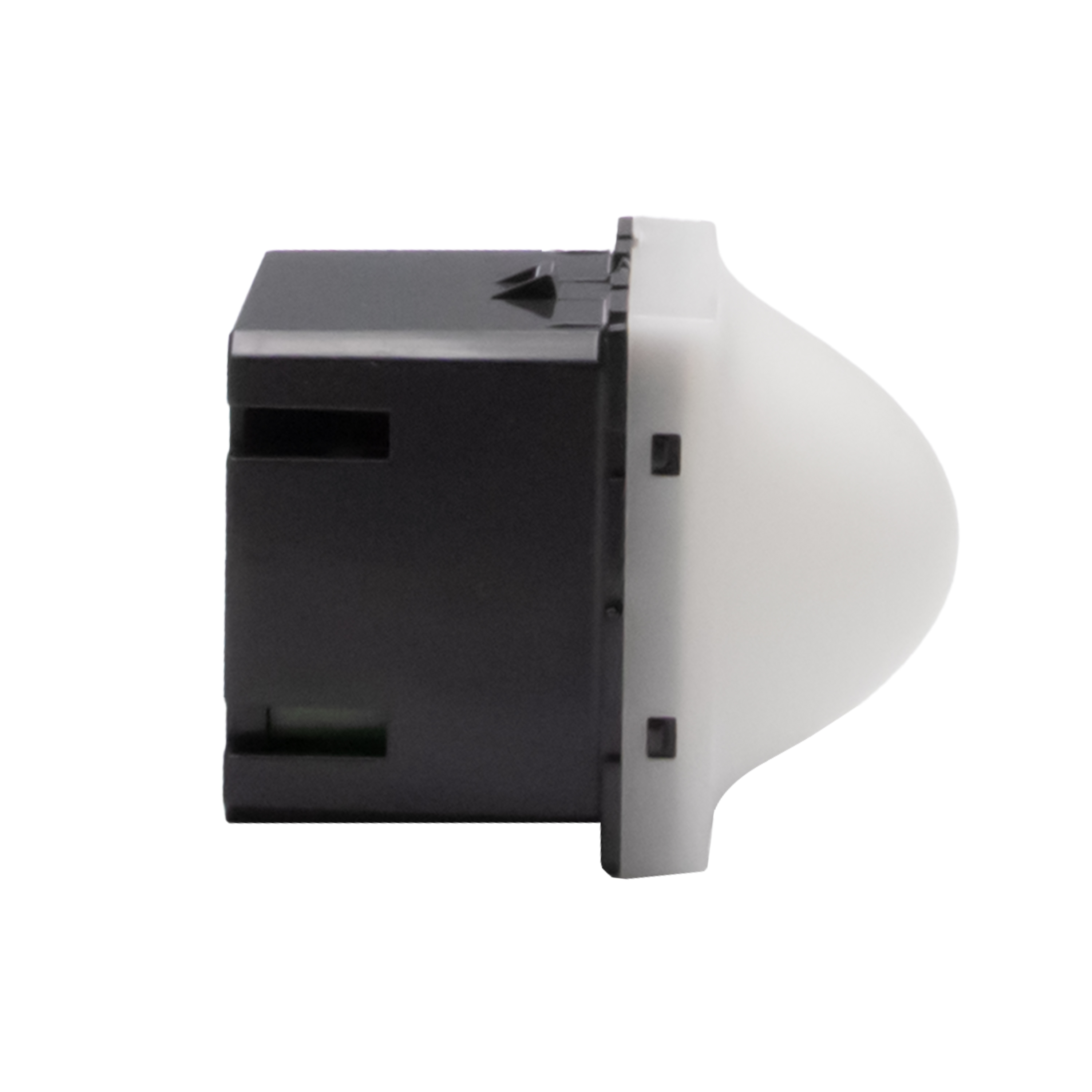

Bulkhead light indicator unit. Power supply 127/230 Va.c.
BT-J4387V230
|
8005543720295
Description
The MatixGO overdoor light has four integrated LEDs, red, green, blue and white color. 2 modules, antibacterial
Product characteristics
- Overdoor light
- Allows light signaling
- 2 modules
- Color Antibacterial
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- It illuminates the floor or the steps of the staircase to facilitate walking
Advantages
- It is coordinated with the MatixGO aesthetic
Technical Characteristics
Assembly arrangement
Complete device
Number of modules (module system)
2
Lamp holder
None
With light source
Yes
Lamp type
LED not exchangeable
With flashlight
No
With fixed symbol/imprint
No
With exchangeable symbol
No
Application as button
No
Mounting method
Flush-mounted
Type of fastening
Engage (snap)
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Surface protection
Untreated
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
Colour light source
Other
Suitable for degree of protection (IP)
IP20
Nominal voltage
230 V
Max. lamp power
0.5 W
Device width
45 mm
Device height
45 mm
Device depth
58.5 mm
Min. depth of built-in installation box
40.5 mm
Built-in depth
30.5 mm
degree of impact strength (IK)
IK04
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Voltage type
AC
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Stress test conformity (1000V)
No
Antimicrobial treatment
Yes
Connection type
Screwed terminal
Terminals capacity (Min-Max)
1.5-2.5 mm²
Cable nature for connection
Flexible or rigid
Cable section (Min-Max)
1.5-2.5 mm²
Label space/information surface
No
