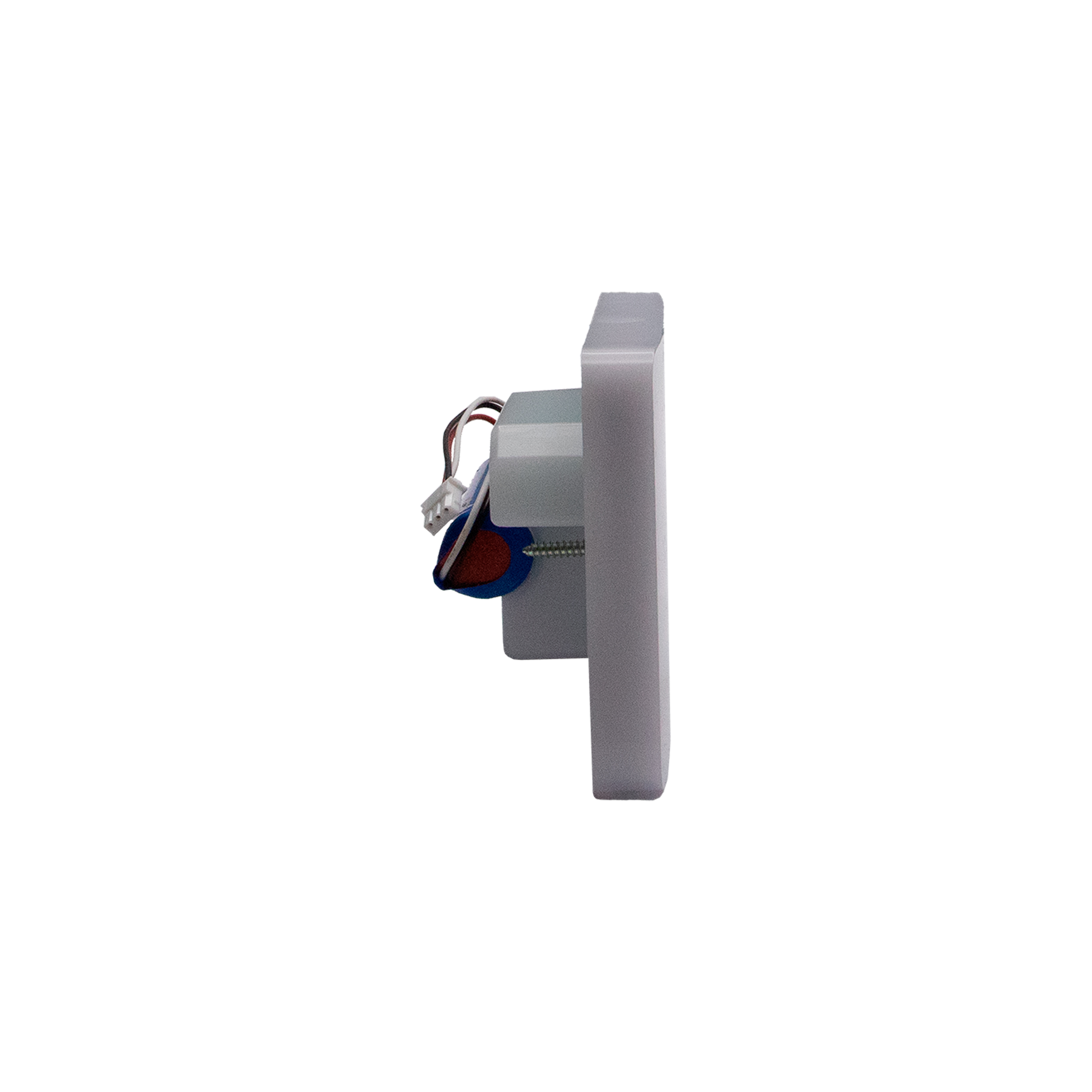

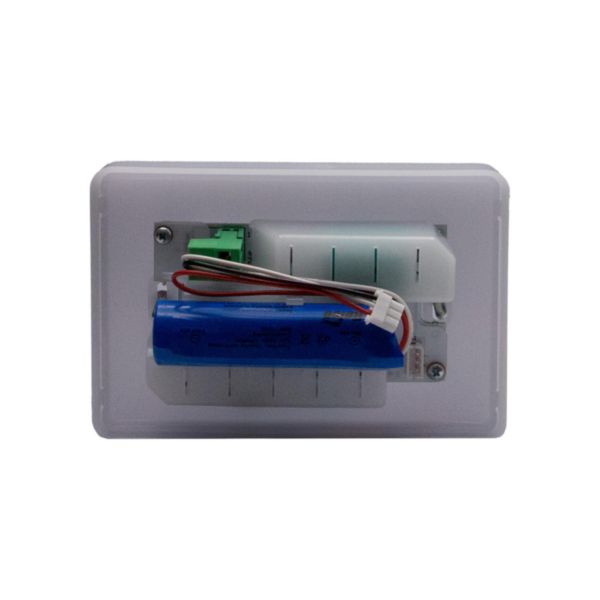

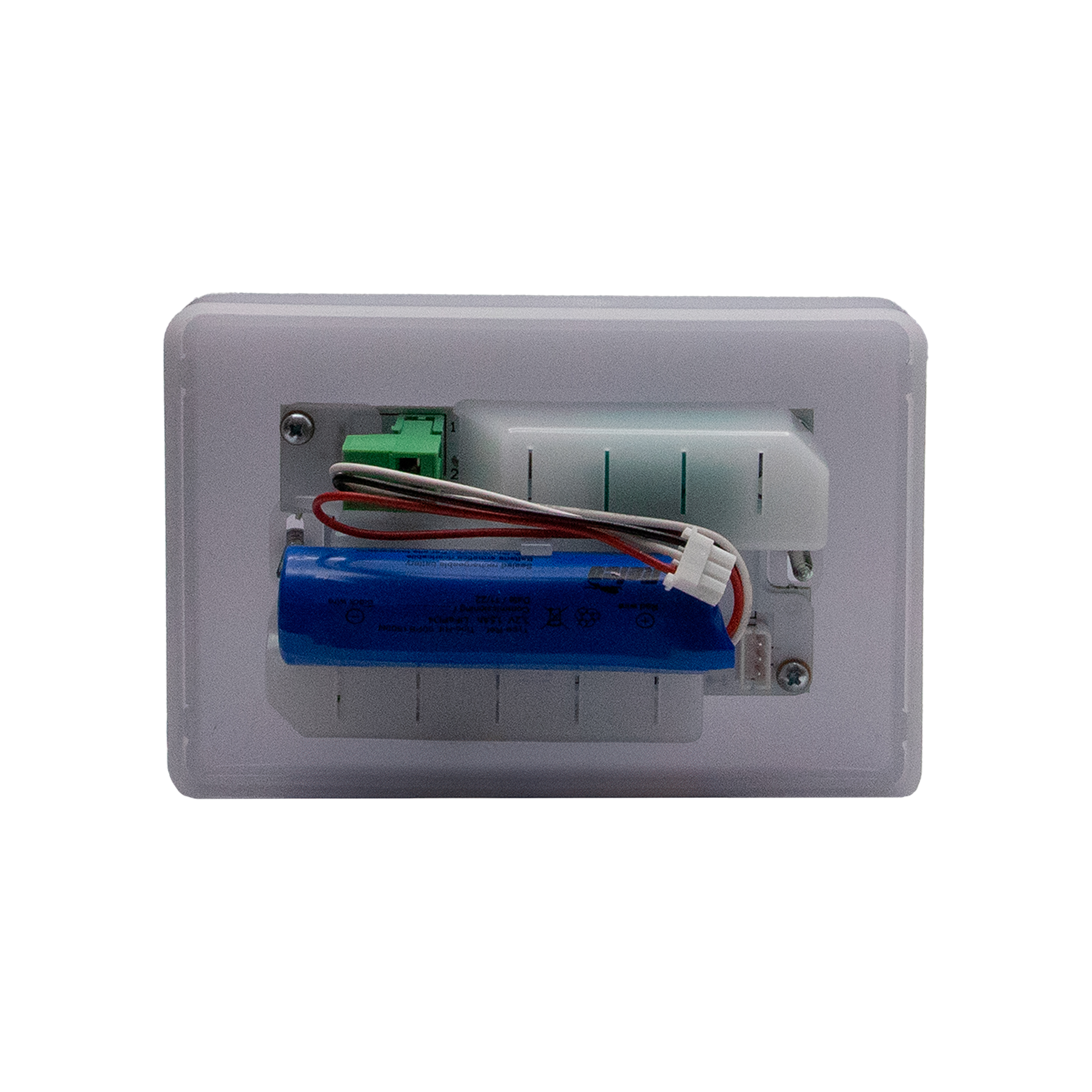

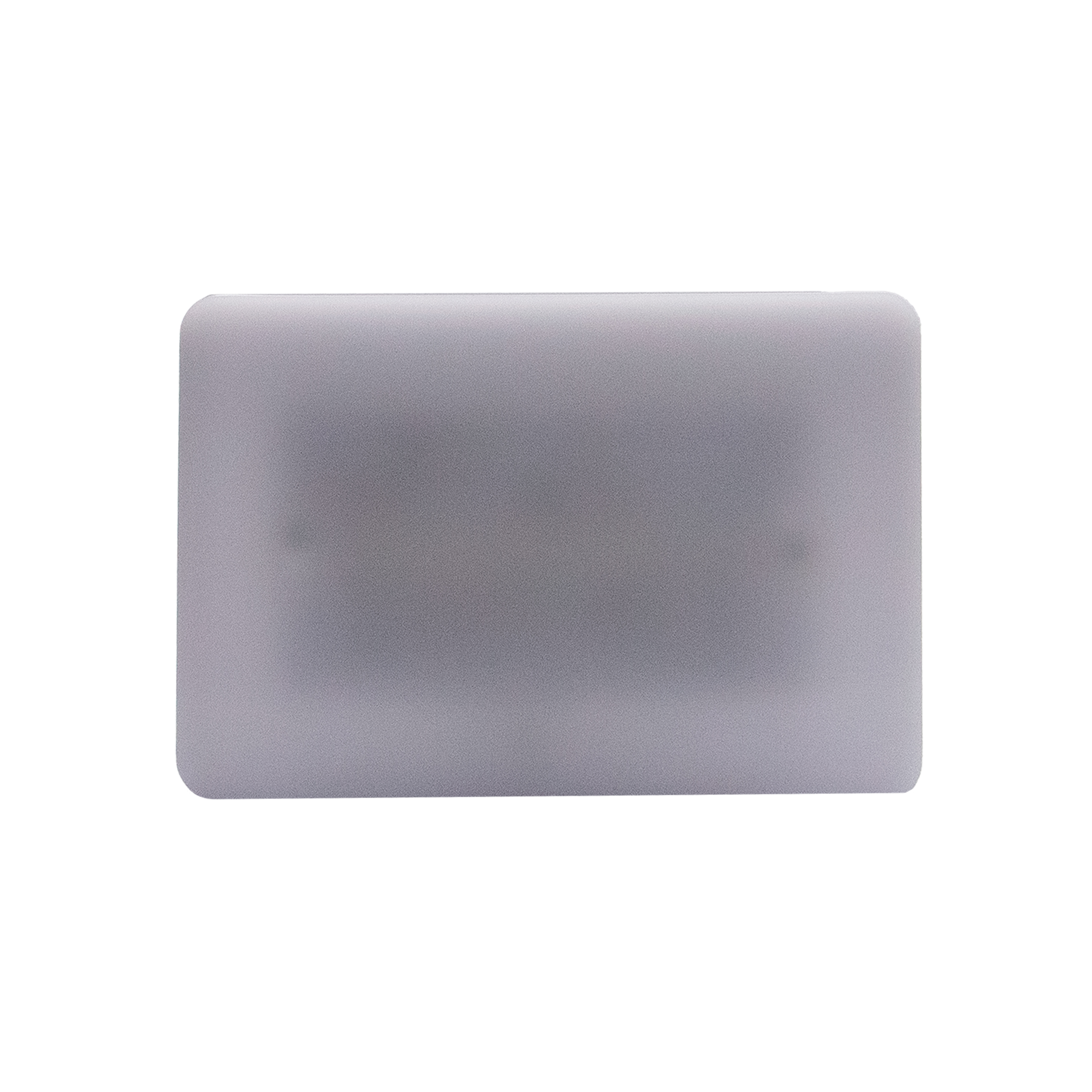

Emergency LED light with automatic activation in case of power cut. LED voltage presence signaling.
BT-J4383
|
8005543732526
Description
Emergency lamp - monobloc stand alone - 3 modules
Product characteristics
- 1h/2h autonomy
- 220-230V~, 110V~ on request, 11W
- 3 modules
- No color
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Easy to install and remove
Usage
- Installation for ceiling, wall, three-phase track, recessed false ceiling
Advantages
- High technical performance
Technical Characteristics
Mounting method
Wall surface mounting/ceiling surface mounting
Function
Escape route lighting
Suitable for labelling type
Other
Type of indicator
Single-sided
With pictogram
No
Suitable for continuous circuit
Yes
With remote switch connection
No
Supplied remote control
No
Emergency function monitoring system
None
Emergency power supply system
Central (central battery)
Battery technology
Other
Lamp type
LED not exchangeable
With light source
Yes
Suitable for number of light sources
2
Lamp holder
None
Number of lighting heads
1
Housing material
Plastic
RAL-number housing
9003
Housing colour
Grey
Material cover
Plastic, opal
Voltage type
AC
Nominal voltage (Min-Max)
110-230 V
Type of control gear
Not required
Exchangeable control gear
No
Light distributor
Diffuser lens/optic/panel
Constant light output (CLO)
No
Degree of protection (IP)
IP30
degree of impact strength (IK)
IK04
Luminaire with limited surface temperature, sign "D“ according to EN 60598-2-24
No
Rated ambient temperature according to IEC 62722-2-1 (Min-Max)
-5-35 °C
Rated luminous flux according to IEC 62722-2- 1 (Min-Max)
0-0 lm
Colour temperature (Min-Max)
4000-5500 K
Recognition distance
5 m
Nominal operation time (Min-Max)
2-2 h
Width
124.5 mm
Height/depth
85 mm
Length
29.5 mm
Built-in width
124.5 mm
Built-in height/depth
85 mm
Built-in length
14.5 mm
Type of wiring
Ending
Conductor cross section
1.5 mm²
Connection type
Screw connection
Connectable conductor cross section (Min-Max)
1.5-2.5 mm²
Operating / setting temperature (Min-Max)
-5-35 °C
Storage temperature (Min-Max)
-10-70 °C
Frequency (Min-Max)
50-60 Hz
Mandatory neutral
No
Terminal marking indication
No
Halogen free
Yes
Cable nature for connection
Flexible or rigid
With complemantary luminous signal
No
Vertical fixing center distance (Min-Max)
3.5-3.7 mm
Horizontal fixing center distance (Min-Max)
3-3.2 mm
Cable support
Screw cable clamp
Cable tie suitable with
All conduit/cable types
Contains Batteries and/or Accumulator
No
Addressable
No
Connected object
No
