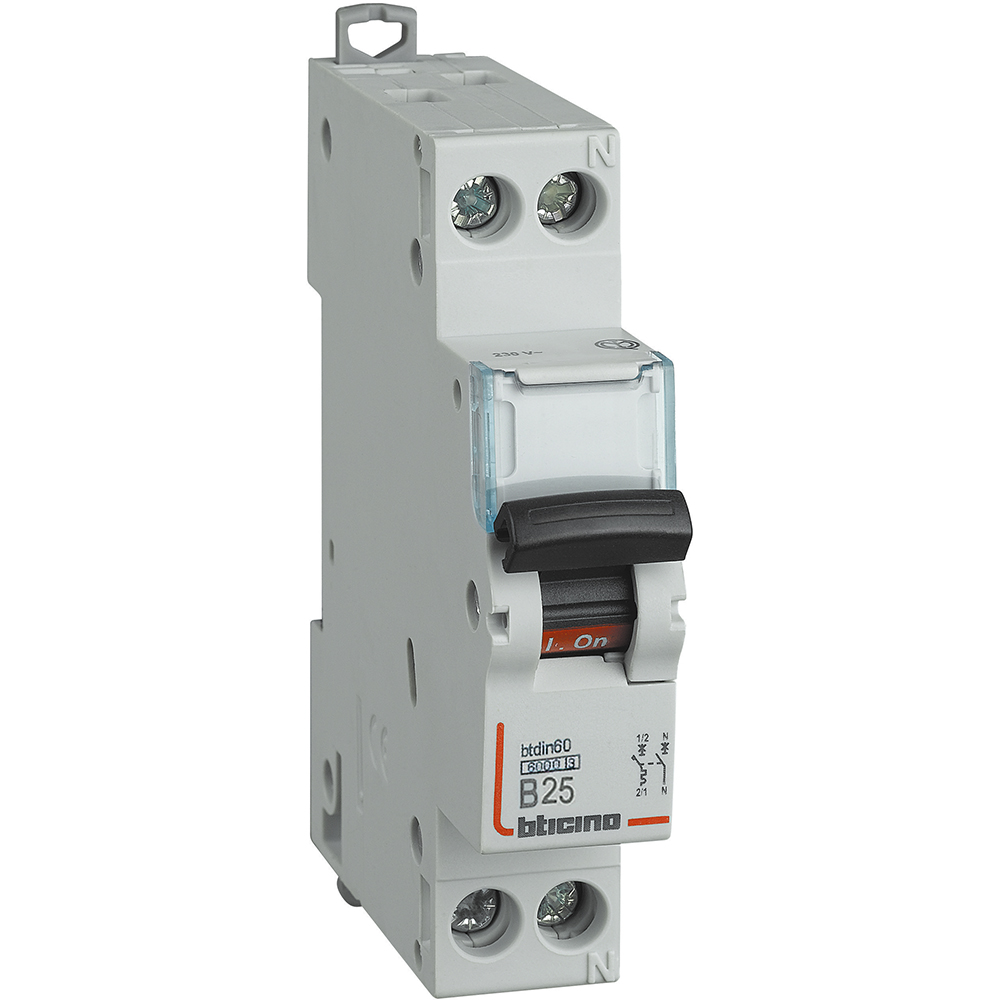

BTDIN60 - 1P+N Mcb curve B - In= 25A - Icn= 6kA - Vn= 230Vac
BT-FN881B25
|
8005543460900
Technical Characteristics
Built-in depth
44 mm
Release characteristic
B
Number of poles (total)
2
Number of protected poles
1
Rated current
25 A
Rated voltage
230 V
Rated insulation voltage Ui
250 V
Rated impulse withstand voltage Uimp
4 kV
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V
6 kA
Voltage type
AC
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V
10 kA
Frequency (Min-Max)
50-60 Hz
Current limiting class
3
Flush-mounted installation
Yes
Concurrently switching neutral conductor
Yes
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
1
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-70 °C
Connectable conductor cross section multi-wired (Min-Max)
0.75-10 mm²
Connectable conductor cross section solid-core (Min-Max)
0.75-16 mm²
Explosion-proof
No
Width
17.8 mm
Height
94.8 mm
Depth
77.7 mm
degree of impact strength (IK)
IK02
Storage temperature (Min-Max)
-40-70 °C
Nominal voltage (Min-Max)
180-250 V
Electric supplying direction
By the top or bottom
Terminal marking indication
Yes
Colour
Grey
RAL-number
7035
Halogen free
Yes
Connection type
Screwed terminal
Connection type
Busbar and cable
Label space/information surface
Yes
Mounting method
DIN rail
