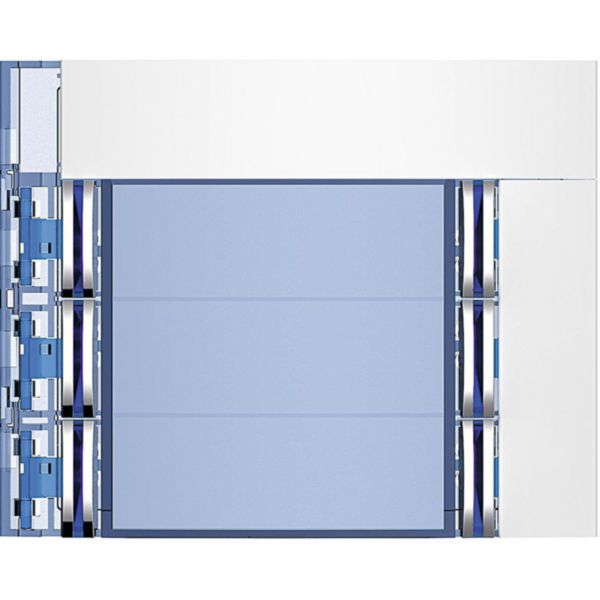

Sfera New 6-Pushbutton on double column Front cover - Allwhite
BT-352162
|
8005543463802
Description
Sfera New cover plate for 6 pushbuttons on double column - Allwhite
Product characteristics
- Aluminium and plastic material
- 1 module
- Allwhite finish
- White colour
- Related product 352100
Technical Characteristics
Number of units
1
Mounting direction
Vertical
Number of units horizontal
1
Number of units vertical
1
Number of modules horizontal (module system)
1
Number of modules vertical (module system)
1
With mounting grid
No
Flush-mounted installation
Yes
Suitable for subfloor installation duct box
No
Suitable for wall duct
No
Suitable for built-in installation
No
Label space/information surface
No
Material
Plastic
Material quality
Thermoplastic
Halogen free
Yes
Antimicrobial treatment
No
Surface protection
Other
Surface finishing
Matt
Colour
White
RAL-number (similar)
9003
Transparent
No
With hinged lid
No
Degree of protection (IP)
IP20
degree of impact strength (IK)
IK07
Type of fastening
Other
Width
114 mm
Height
91 mm
Depth
10 mm
Built-in height
0 mm
Operating / setting temperature (Min-Max)
-5-40 °C
Storage temperature (Min-Max)
-10-70 °C
Latin wood species
Not applicable
Certification of wood (list)
Not applicable
Wood Climate area
Not applicable
Documentation
1 documents
PEP-EPD
LGRP-02114-V01.01-EN | PDF (940 KB) | EN
1 documents
Catalog Commercial Page
3248522 | PDF (2.3 MB) | EN
