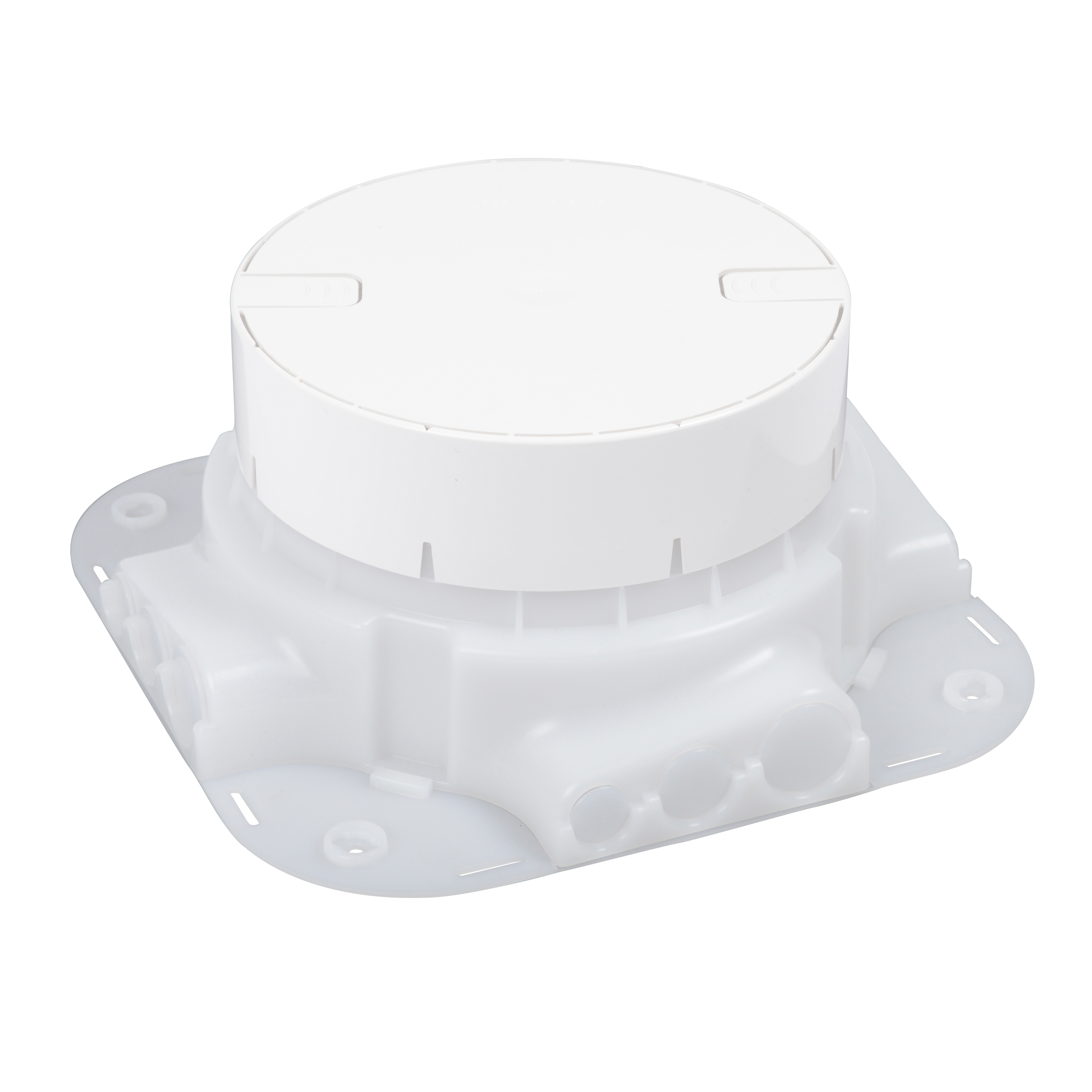

Auto-adjustable backbox for installing IP66 floor box in concrete floors
BT-150733
|
8005543743324
Description
The backbox allows to reserve a place in the concrete to be poured in order to install afterward a round waterproof floor box IP66/IK09 with a wiring devices capacity of 4M.
Product characteristics
- Height of screed floor : 65mm to 97mm.
- Cable exit pre-cut on all four sides for diameter pipes : 16mm, 20mm and 25mm.
- Plastic material
- Comply with IEC 60-670-1 et 60-670-23 standards.
- Packaging 100% plastic free: delivered with dedicated and new packaging in 100% paper, water-based painted and use of ecological glues.
Recommendations / Restrictions
- Indoor use only.
Products benefits
Installation
- Auto-adjustable: saves time because no need to adjust the height of the backbox.
Usage
- Supplied with a plastic mask insulating from the concrete, during its pouring, and pre-cut to facilitate its extraction once the concrete is dry.
Technical Characteristics
Nominal dimension
25 mm
Min. height finishing layer
65 mm
Levelling range (Min-Max)
65-97 mm
Suitable for subfloor duct countersunk (closed)
Yes
Suitable for subfloor duct overhead closed
No
Duct height (Min-Max)
16-25 mm
Duct width (Min-Max)
16-25 mm
Built-in opening for floor column
No
Built-in opening for built-in unit
Round
Number of appliances to build in
2
Material side wall
Plastic
Suitable for placing of sealing
No
Decoupling possibility cover from base unit
Yes
Bottom plate
No
