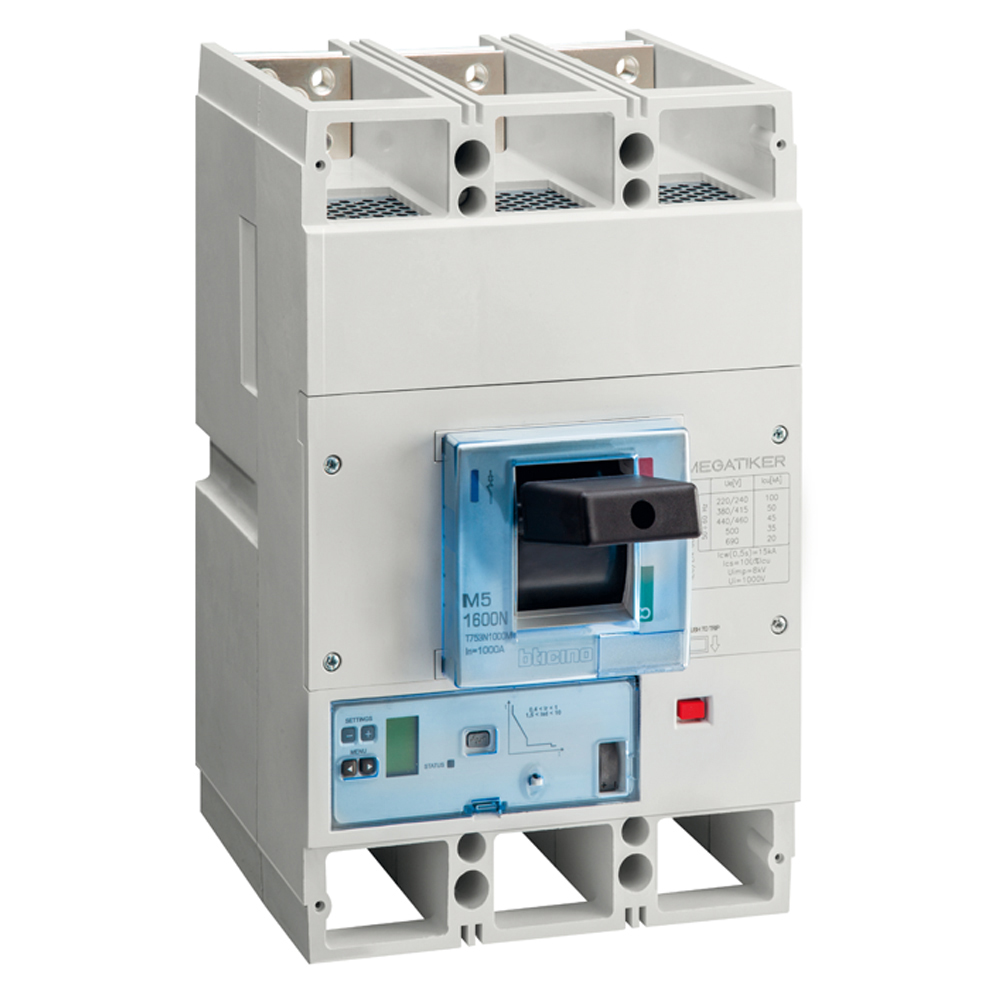

  • M5 1600N - electronic Mccb (Lsig) 3P - In=1600A
MEGATIKER BTicino

M5 1600N - electronic Mccb (Lsig) 3P - In=1600A

BT-T753N1600MT | 8005543549407
M5 1600N - electronic circuit breaker (Lsig) 3P - In=1600A - Icu=50kA - Ue= 690Vac - setting: Ir= 0.4-1In, Tr= 3-30s (overload) - Isd= 1.5-10In, Tsd= 0-0.5s (short-circuit) - Ig= 0.2-1Ir, Tg= 0.1-1s (earth fault) - with measuring function
Technical Characteristics
Rated permanent current Iu 1600 A
Rated short-circuit breaking capacity Icu at 400 V, 50 Hz 50 kA
Overload release current setting (Min-Max) 640-1600 A
Adjustment range short-term delayed short-circuit release (Min-Max) 960-16000 A
Adjustment range undelayed short-circuit release (Min-Max) 20000-20000 A
Device construction Built-in device fixed built-in technique
Integrated earth fault protection Yes
Type of electrical connection of main circuit Screw connection
Suitable for DIN rail (top hat rail) mounting No
Number of auxiliary contacts as normally closed contact 3
Number of auxiliary contacts as change-over contact 3
With switched-off indicator Yes
With integrated under voltage release Yes
Number of poles 3
Position of connection for main current circuit Front side
Type of control element Wing knob
Motor drive integrated No
Motor drive optional Yes
Degree of protection (IP) IP30
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) CR1616
Battery ou Accumulator (Pack1) Battery (not rechargeable)
Element Composition (Pack1) Lithium (battery or accumulator)
Number of Pack 1 2
Number of Single Element (Pack1) 1
Single Element weight (Pack1) 1.1 g
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
Documentation
3 documents
Technical Sheet
IDP000126EN/02 | PDF (2.8 MB) | EN
Instruction Use
LE06315AB | PDF (1.4 MB)
Instruction Use
LE06935AA | PDF (715 KB)
1 documents
Catalog Commercial Page
3244051 | PDF (28.2 MB) | EN
