Living Now BTicino

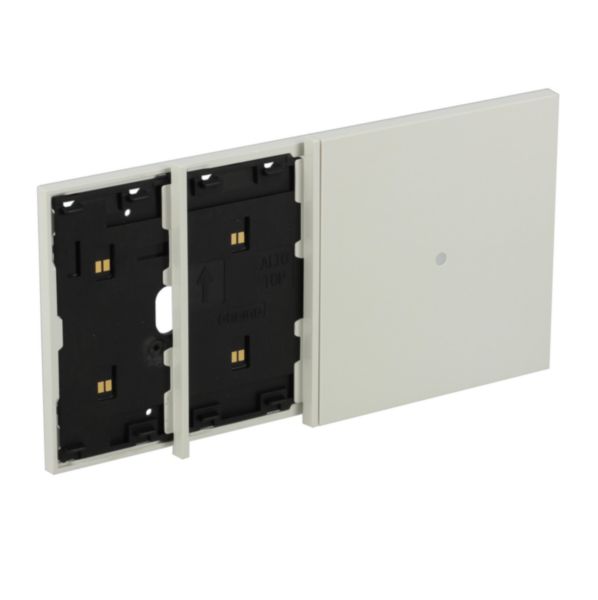

Electrified frame with anti-theft reader escutcheon for 4-module box. White.

BT-KW8104M24 | 8005543674550
Electrified frame with anti-theft reader escutcheon, for the installation of 2 digital controls and the anti-theft reader (art. K4215). Installation in 4-module box with K4704 support. White color.
Description

Frame Living Now 4M to install transponder reader and two digital controls - White

Recommendations / Restrictions
  • Indoor usage only
Products benefits
Installation
  • easy to install and flexible to further upgrades without wall intervention
Usage
  • It separetes the wired mechanism from the digital controls, so that user can move them in a safe way
Technical Characteristics
Type of accessory/spare part Cover plate
Accessory Yes
Spare part No
Width 162 mm
Height 86 mm
Depth 4.5 mm
Operating / setting temperature (Min-Max) -5-45 °C
Storage temperature (Min-Max) -10-70 °C
Colour White
Halogen free No
Mounting method Surface mounted
