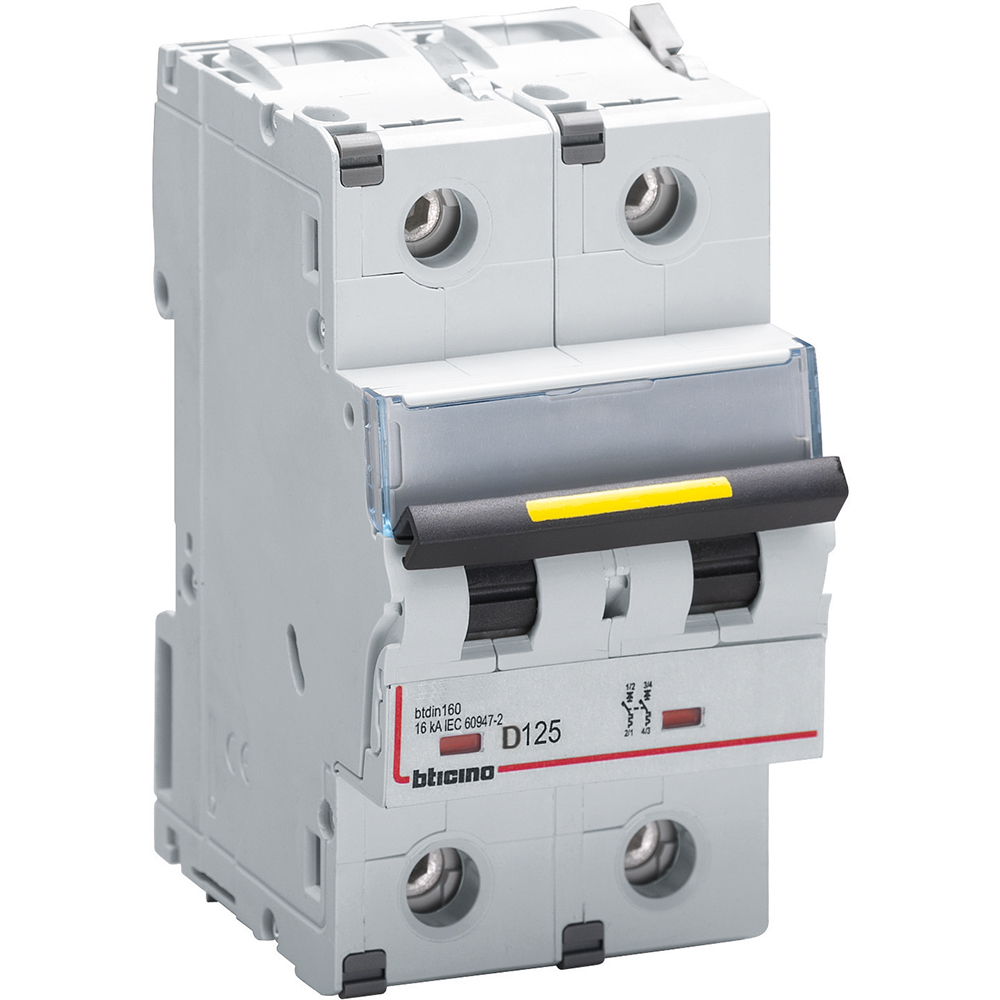

BTDIN160 - 2P Mcb curve D - In= 125A - Icu= 16kA - Vn= 400Vac
BT-FT82D125
|
8005543407837
Technical Characteristics
Built-in depth
47 mm
Release characteristic
D
Number of poles (total)
2
Number of protected poles
2
Rated current
125 A
Rated voltage
400 V
Rated insulation voltage Ui
500 V
Rated impulse withstand voltage Uimp
6 kV
Voltage type
AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V
3 kA
Frequency (Min-Max)
50-50 Hz
Concurrently switching neutral conductor
No
Pollution degree
2
Additional equipment possible
Yes
Width in number of modular spacings
3
Degree of protection (IP)
IP20
Ambient temperature during operating (Min-Max)
-25-60 °C
Connectable conductor cross section multi-wired (Min-Max)
6-50 mm²
Connectable conductor cross section solid-core (Min-Max)
6-70 mm²
Explosion-proof
No
Documentation
1 documents
Instruction Use
G2297G | PDF (1.7 MB)
