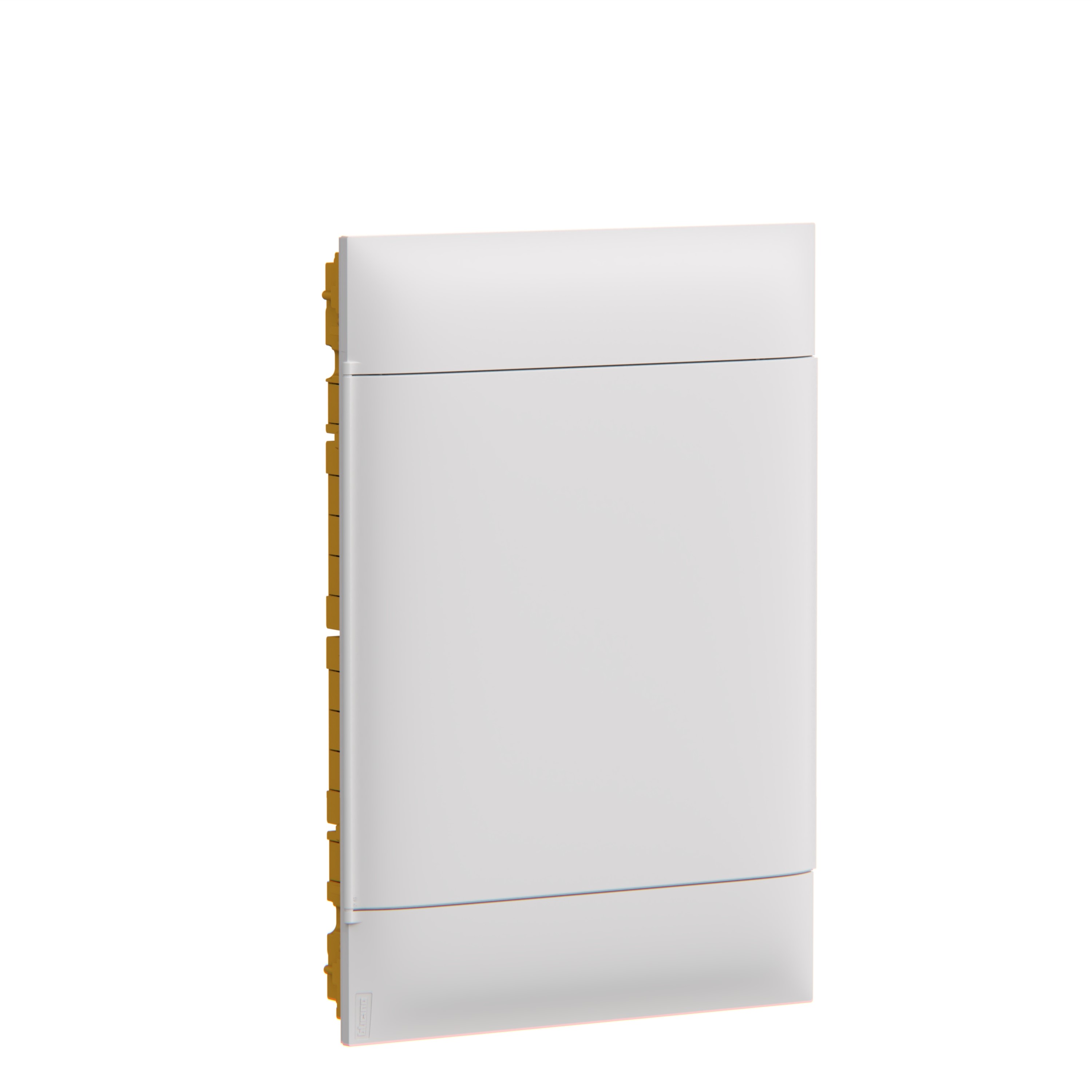

LINEA HABITA flush-mounting switchboard white door colour, 3x18 modules
BT-E315PBS54
|
8005543681770
Description
Linea HABITA - CENTRALINO INC 54M BIANCO
Product characteristics
- Flush
- IP 40
- without terminal blocks
- IEC 60670-24
- IK 07
Recommendations / Restrictions
- Max permitted current: 90A
Products benefits
Installation
- with protective cardboard
Usage
- Design
Advantages
- Complete range
Technical Characteristics
Mounting method
Flush-mounted
number of rows
3
Width in number of modular spacings
18
Type of covering
Door
Cover model
With notch
Type of door
Single
Transparent cover/door
No
Signal passing door
Yes
With lock
No
Type of closure
Other
Housing material
Plastic
Built-in depth
72 mm
Built-in height
615 mm
Built-in width
418 mm
Inner depth
72 mm
Earthing terminal block
No
Neutral terminal block
No
DIN-rail
Yes
With mounting plate
No
Extension possible
No
Colour
White
EMC-version
No
RAL-number
9003
Degree of protection (IP)
IP40
Height
615 mm
Width
436 mm
Depth
105 mm
Enclosure capacity (Nb of modules)
54
degree of impact strength (IK)
IK07
Operating / setting temperature (Min-Max)
-10-40 °C
Storage temperature (Min-Max)
-15-70 °C
Halogen free
No
Fitted with rainproof plate protection
No
