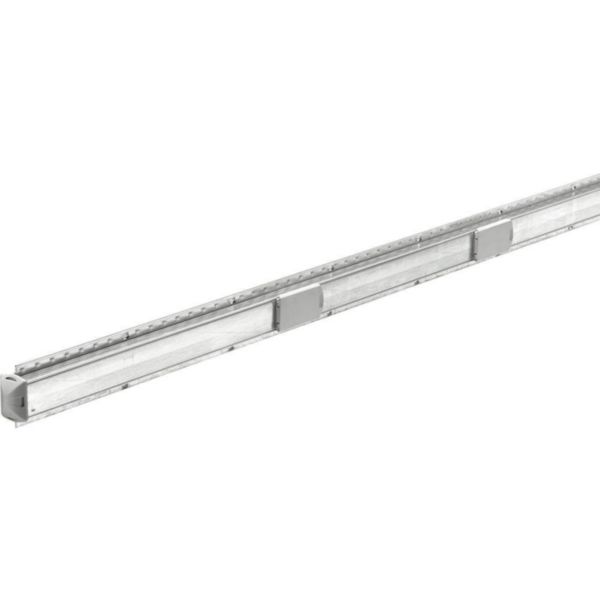

Straight element LB PLUS 404 (Type B) 4 conductors In=40 A - 2 outlets

ZU-75400111H | 8033777078974
Straight element LB PLUS 404 (Type B) 4 conductors In=40 A - IP55 - length 1,5 m - 2 outlets
Technical Characteristics
Model Single
Rated current AC 50 Hz 40 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-400 V
Number of tap-off units 2
Colour Grey
Degree of protection (IP) IP55
Length 1500 mm
Width 35 mm
Height 77 mm
Documentation
3 documents
Technical Sheet
F04898EN-00 | PDF (1.1 MB) | EN · FR
Technical Sheet
F04898FR-00 | PDF (1.1 MB) | EN · FR
Instruction Use
FISV0603C | PDF (5.9 MB)
1 documents
PEP-EPD
LGRP-00637-V02.01-EN | PDF (859 KB) | EN
