XCP-S ZUCCHINI

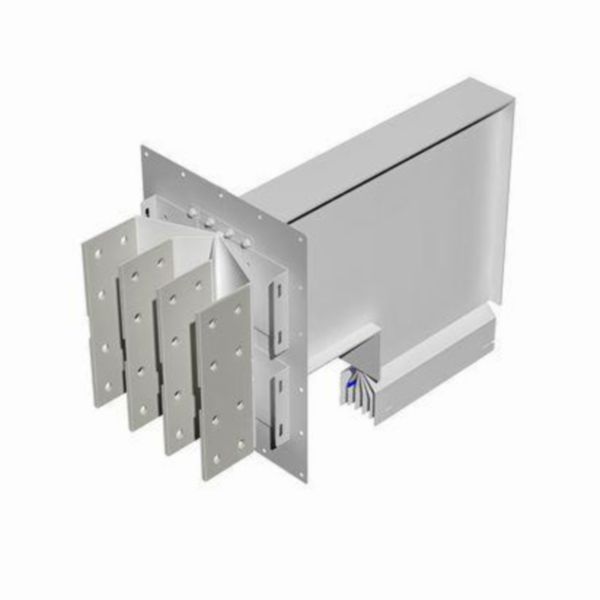

Exit bars element + vertical elbow XCP-S (Cu). Type 1 - In= 3200A

ZU-67391405P | 8033777457236
XCP-S - exit bars element + vertical elbow (Cu). Type 1 - In= 3200A
Technical Characteristics
Rated current AC 50 Hz 3200 A
Power supply position End
Model Double
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1600 mm
Height 120 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
