XCP-S ZUCCHINI

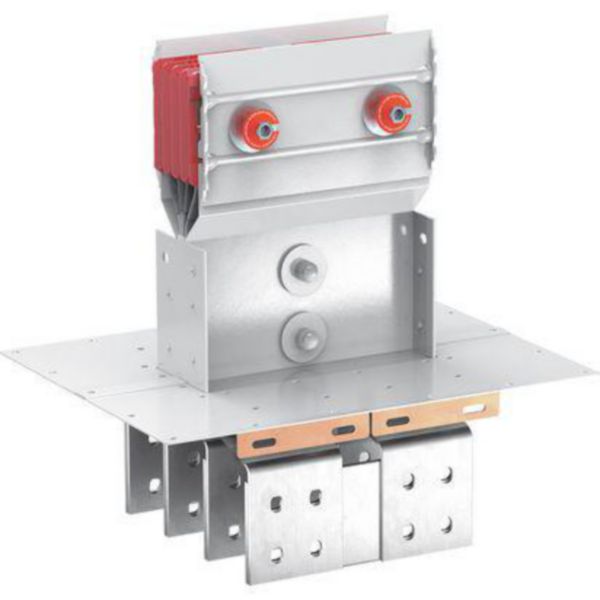

Connection interface with exit bars XCP-S (Cu). Left Type 1 special - In= 4000A

ZU-67391036P | 8033777401383
XCP-S - connection interface with exit bars (Cu). Left Type 1 special - In= 4000A
Technical Characteristics
Rated current AC 50 Hz 4000 A
Power supply position End
Model Double
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 1000 mm
Height 120 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGWAGVZXBM | FILE (696 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
