XCP-S ZUCCHINI

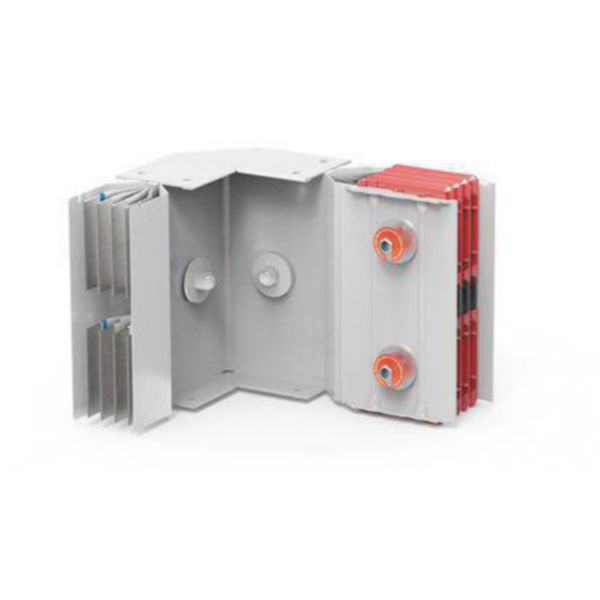

Horizontal elbow XCP-S (Cu). Left Type 2 special - In= 4000A

ZU-67390336P | 8033777400430
XCP-S - horizontal elbow (Cu). Left Type 2 special - In= 4000A
Technical Characteristics
Model Double
Rated current AC 50 Hz 4000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 1100 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGWAGVZXBM | FILE (696 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
