XCP-S ZUCCHINI

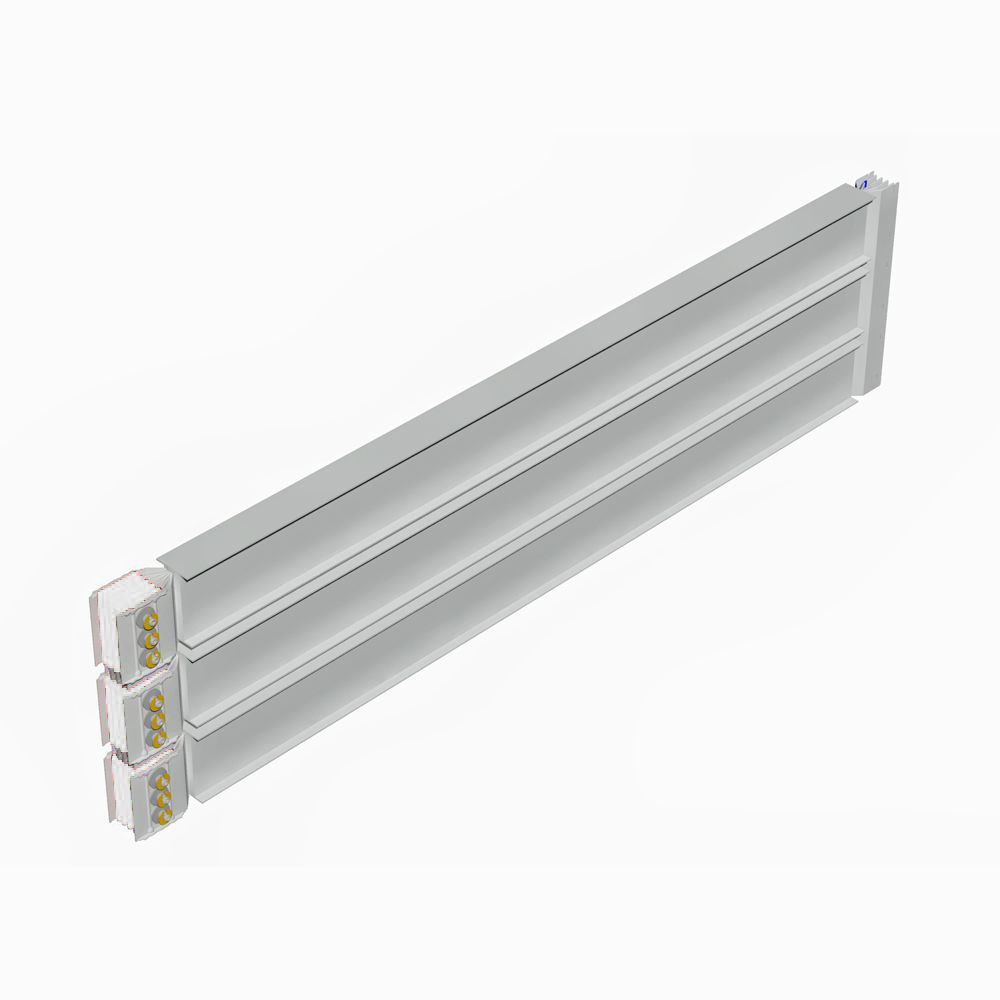

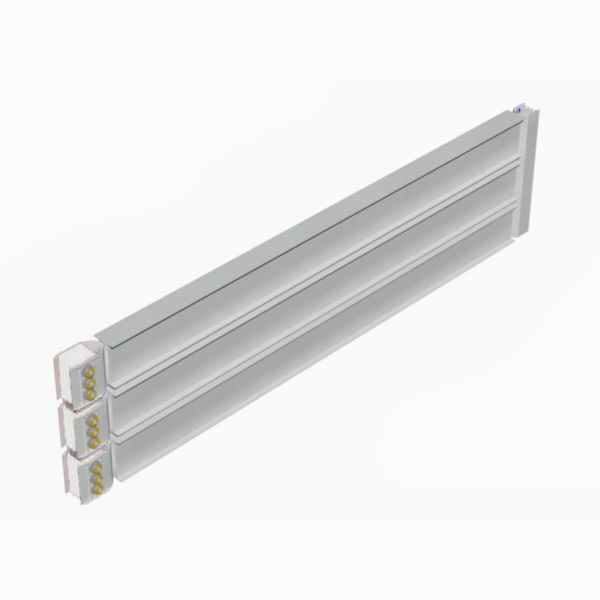

Straight element for transport XCP-S (Cu). L= 2-2.5m - In= 6300A

ZU-67390189P | 8033777392568
XCP-S - straight element for transport (Cu). Length 2-2.5m - In= 6300A
Technical Characteristics
Model Double
Rated current AC 50 Hz 6300 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 0
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 2500 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
