XCP-S ZUCCHINI

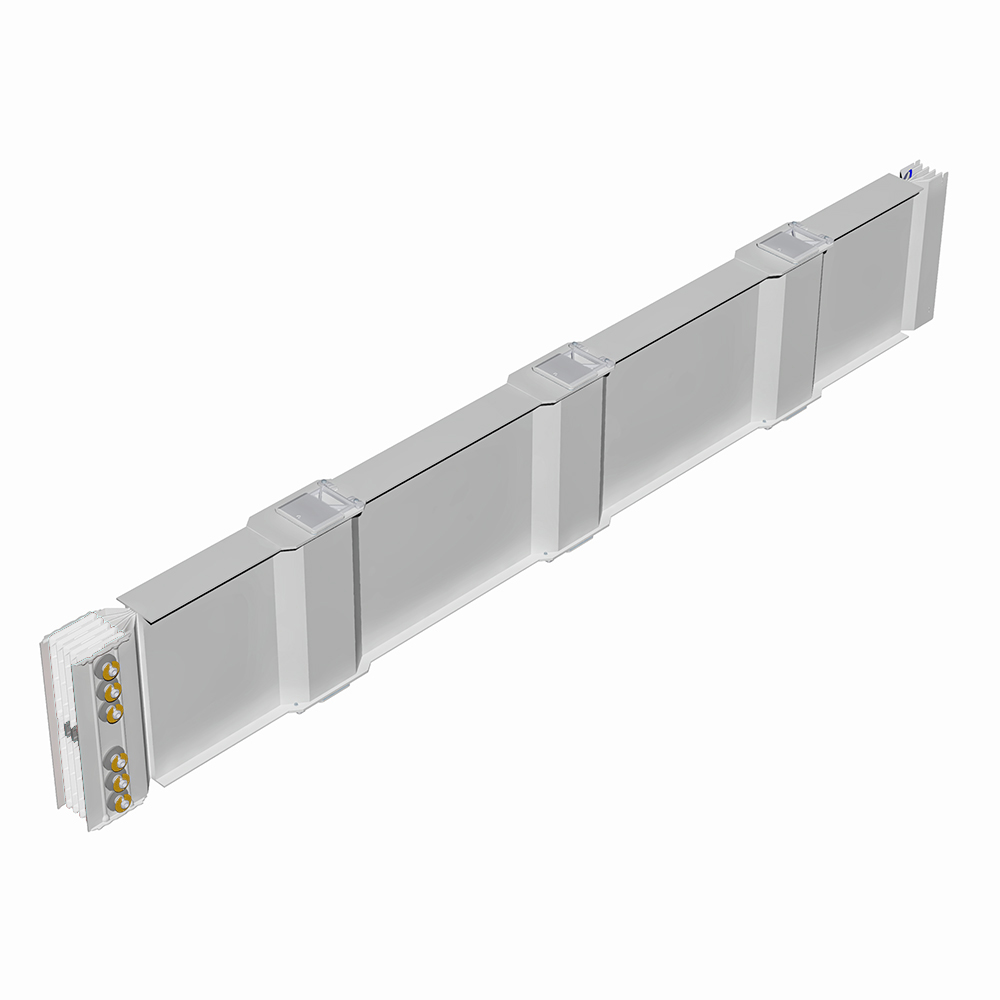

Straight element for distribution XCP-S (Cu). N° of outlets 3+3 - In= 5000A

ZU-67390138P | 8033777394074
XCP-S - straight element for distribution (Cu). N° of outlets 3+3 - Length 3m - In= 5000A
Technical Characteristics
Model Double
Rated current AC 50 Hz 5000 A
Number of poles 3
Number of conductors (without earthing) 4
Flexible No
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Number of tap-off units 6
Colour Grey
RAL-number 7035
Degree of protection (IP) IP55
Length 3000 mm
Height 120 mm
Operating / setting temperature (Min-Max) -5-35 °C
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
