XCP-S ZUCCHINI

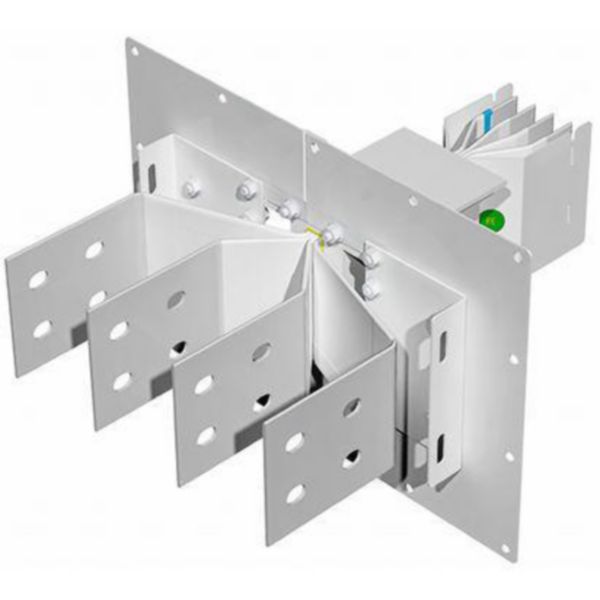

Connection interface with exit bars XCP-S (Cu). Right Type 2 standard - In= 1250A

ZU-67281003P | 8033777399390
XCP-S - connection interface with exit bars (Cu). Right Type 2 standard - In= 1250A
Technical Characteristics
Rated current AC 50 Hz 1250 A
Power supply position End
Model Single
Number of poles 4
Rated voltage AC 50 Hz (Min-Max) 0-1000 V
Colour Grey
Degree of protection (IP) IP55
Length 500 mm
Height 120 mm
Nominal voltage (Min-Max) 0-1000 V
Halogen free Yes
Connection type Screwed terminal
Number of terminals 4
Cable nature for connection Flexible or rigid
Documentation
1 documents
Technical Sheet
F03376EN/05 | PDF (2.8 MB) | EN
1 documents
Agreement
LGYEMCHLDF | FILE (696 KB) | EN
1 documents
Catalog Commercial Page
3201961 | PDF (29.5 MB) | EN
